30kw Chav Generator
Biomass Chav Generator
Qauv: FTSG (Biomass) Series
Chav Muaj Peev Xwm: FTSH (Biomass) 0.3-1T / H
Chav Siab: 0.7Mpa (xaiv tau raws li qhov xav tau)
Roj: Biomass Particle, Ntoo, Coal
Daim ntaub ntawv: Khaub ncaws ntxhua khaub ncaws thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.
Khoom Taw qhia
Product Description
Biomass steam generator, feem ntau hu ua biomass chav boiler, yog cov cuab yeej siv hluav taws xob uas siv lub zog ntawm cov roj biomass kom sov dej rau hauv dej kub lossis chav.
Lub ntsiab lus tseem ceeb ntawm lub lauj kaub yog hais txog lub thawv dej rhaub rau ntawm qhov hluav taws kub. Lub qhov cub hais txog qhov chaw uas muaj roj hlawv. Lub tshuab hluav taws xob biomass feem ntau suav nrog peb ntu: chav lauj kaub, biomass combustion cub thiab microcomputer tswj qhov system.

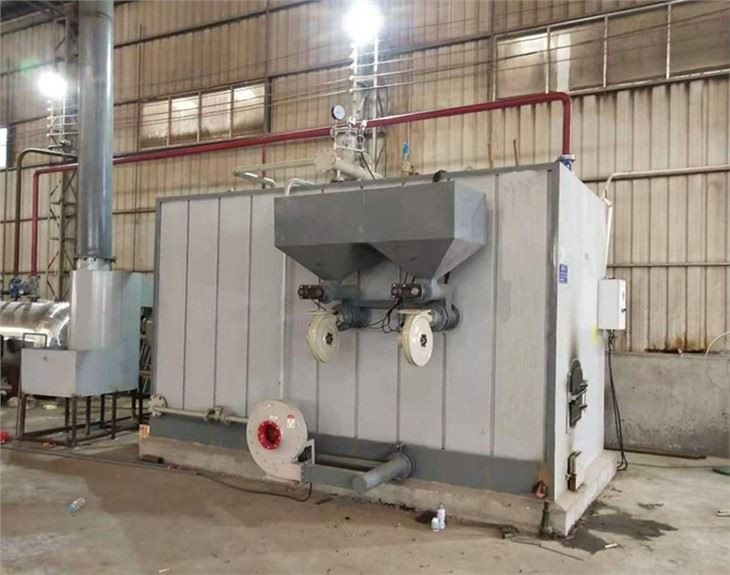

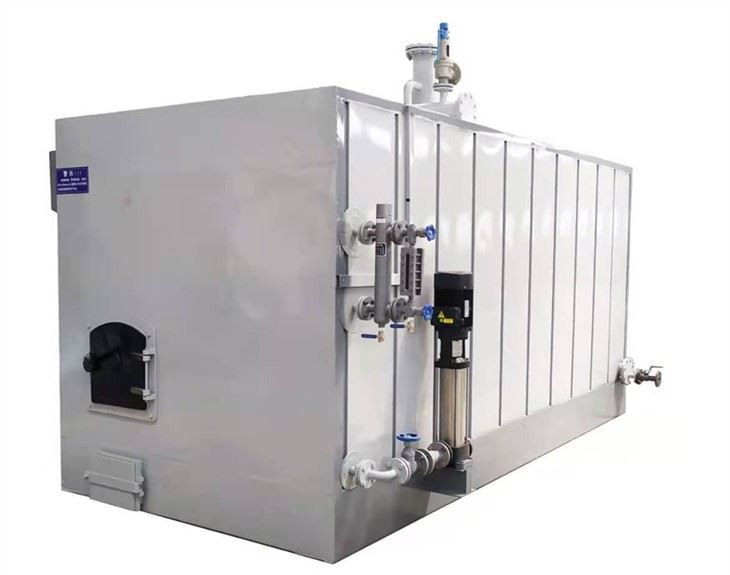

Daim duab
Khoom zoo
1 Cov qauv ntawm lub cub tawg
Lub tshuab hluav taws xob tshwj xeeb tsim, tuaj yeem hlawv biomass pellet, kuj tuaj yeem hlawv ntoo, orchid charcoal thiab lwm yam roj thaiv.
2 Ceev evaporation
Tom qab lub boiler pib (3-5 feeb), chav yog generated sai sai thiab ncav cuag kub thiab siab ceev.
3 High thermal efficiency
Vertical dej yeeb nkab membrane phab ntsa qauv, nce tshav kub absorbing cheeb tsam, txo tshav kub poob, txuag roj.
4 Humanized tsim
Tsawg pub noj chaw nres nkoj tsim, yooj yim noj, txo kev siv zog ntawm cov neeg ua haujlwm.
5 Kev nyab xeeb siab
(1) Sab hauv dej qis tsim, tsis xav tau daim ntawv pov thawj tshuaj xyuas.
(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions.
6 Kev ntseeg siab
(1) Lub tshuab tag nrho yog tsim raws li tus qauv ntawm chav boiler loj.
(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas siab, tswj tsis siv neeg qib dej, thiab lwm yam.
FTSG Biomass Chav Generator
Qauv | Ratedevaporation muaj peev xwm (t / h) | Rated siab (MPa) | Chav ntsuas kub (℃) | Thermal efficiency (%) | Roj noj (kg / h) | Dimension LxW × H (cm) | Qhov hnyav (t) |
FTSG 0.0.3-0.7 | 0.3 | 0.7 | 170 | ≥93 | 53 | 200*190*270 | 3.1 |
FTSG 0.5-0.7 | 0.5 | 0.7 | 170 | ≥93 | 66 | 225*250*310 | 4.2 |
FTSG 0.7-0.7 | 0.7 | 0.7 | 170 | ≥93 | 110 | 265*250*335 | 5.6 |
FTSG1-0.7 | 1 | 0.7 | 170 | ≥93 | 155 | 235*310*335 | 6.8 |
Peb lub tuam txhab
Daim ntawv pov thawj
Neeg tuaj xyuas
Ntim& Kev thauj mus los
FAQ
1. Q. Koj puas yog cov chaw tsim khoom?
A: Yog, peb yog cov chaw tsim khoom ntawm boiler thiab siab hlab ntsha hauv Henan, Suav.
2. Q: Koj puas muaj daim ntawv pov thawj?
A: Yog. Peb lub boiler tau txais Tuam Tshoj GB ISO daim ntawv pov thawj thiab CE daim ntawv pov thawj ntawm EU. Peb kuj tuaj yeem muab ASME, GHOST thiab lwm daim ntawv pov thawj tsim nyog yog tias koj xav tau.
3. Q: Lub sijhawm xa khoom ntawm kab rov tav biomass chav tshuab hluav taws xob?
A: 5-10 hnub ua haujlwm rau ib lub tshuab, thiab 30-40 hnub ua haujlwm rau kev txiav txim ntau thiab qhov rooj rau qhov rooj xa khoom kuj muaj.
4.Q: Dab tsi tsis yog kuv yuav tsum tau muab kom tau txais cov lus tsocai?
Koj yuav zoo dua muab cov kev txwv xws li muaj peev xwm, roj, kev ua haujlwm siab, yog li ntawd rau cov lus qhia ceev thiab meej.
5.Q: Koj puas muab kev pabcuam customized rau koj cov khoom?
Yog lawm, peb tuaj yeem kho lub boiler raws li cov roj, chav muaj peev xwm thiab chav siab xav tau los ntawm cov neeg siv khoom.
