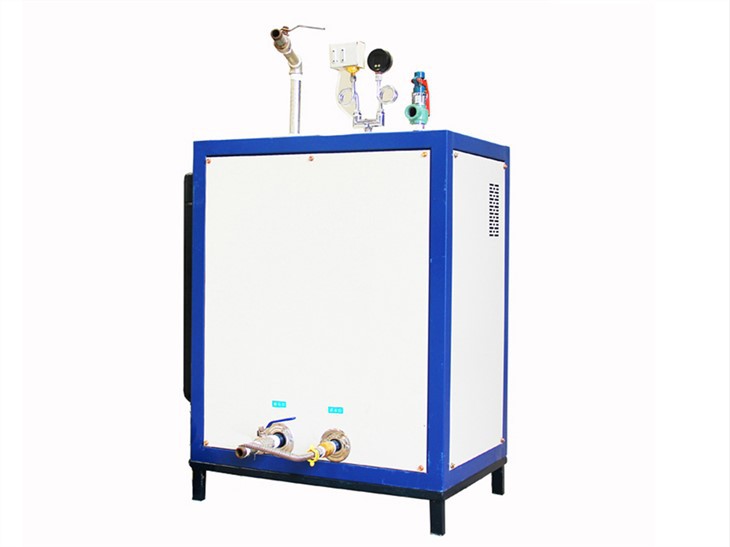

70kg Portable Mini Hluav Taws Xob Chav Boiler

Cov Cua Kub Hluav Taws Xob Ceev Cov Cav Hluav Taws Xob
Qauv: LDR (Cov Cua Sov Hluav Taws Xob) Series
Kev Muaj Peev Xwm: LDR (Cov Cua Sov Cua Sov) 0.01-0.4T / H
Chav Siab: 0.4 / 0.7Mpa (Xaiv tau raws li kev thov)

Khoom Taw qhia

Khoom Piav Qhia

LDR hluav taws xob cua kub series lub tshuab hluav taws xob ceev yog lub cuab yeej hluav taws xob ntsug tsis siv neeg lub tshuab hluav taws xob, ua kom cov pa sai sai (li 3-5 feeb), muaj cua sov ua haujlwm, cov qauv yeeb nkab ntsug, cov dej me me, nyab xeeb thiab tsis xav tau kev soj ntsuam txhua xyoo.Qhov tag nrho cov teeb ntawm cov cuab yeej tawm hauv lub Hoobkas kom tag nrho.Qhov muaj cov tshuab hluav taws xob tsuas yog xav tau txuas nrog dej thiab lub zog hluav taws xob los tsim cov pa taws. Lub tshuab hluav taws xob me me yog kev tsim kho sai thiab khoom siv ceev.

Kev kos duab

Kev tsis

LDR Cov Chav Hluav Taws Xob Hluav Taws Xob

Qauv	Nyob evaporation peev xwm (kg / h)	Nyob chav siab (Mpa)	Tus nqi hluav taws xob qis （Kw）	Kev ntsuas kom sov ua tau zoo (％)	Chav sov（℃）	Qhov ntev (m)	Nyhav (t)
LDR0.008-0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR0.012-0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR0.016-0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR0.024-0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR0.032-0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR0.065-0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR0.075-0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR0.1-0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR0.13-0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR0.2-0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR0.24-0.4 / 0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR0.28-0.4 / 0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302

Nta

1.Quicksteam tiam

Chav yog tsim tawm sai (3-5 feeb) tom qab lub rhaub dej, thiab nws tau mus txog qhov kub siab thiab siab sai

2.High thermal efficiency

(1) Lub tshuab xa hluav taws xob ntsug, txheej txheem phab ntsa, ua kom thaj chaw txais kev tshav kub ntau dua thiab txo cov cua sov poob, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3.High-endautomatic system tswj

Lub teb chaws tus qauv hluav taws xob tswj Cheebtsam thiab lub ntiaj teb hom hlawv, tuaj yeem paub cov haujlwm tsis siv neeg stablely.

4.Qhov kev ruaj ntseg

(1) Lub peev xwm dej me me nyob sab hauv, tsis tas yuav kuaj txhua xyoo

(2) Nruab nrog lub thaiv kev nyab xeeb, xws li dej tsis txaus, overpressure, overtemperature, dim pa, lub cev muaj zog sib tshooj thiab lwm yam kev tiv thaiv kev nyab xeeb ua haujlwm

5.High kev ntseeg tau

(1) Tag nrho cov cuab yeej raug tsim tawm raws li tus txheej txheem ntawm chav dej loj boiler

(2) cov cuab yeej tiv thaiv kev nyab xeeb: lub zog tswj, siab xa tawm, ntsuas kev nyab xeeb, ntsuas lub ntsuas, ntsuas dej tsis siv neeg tswj, thiab lwm yam.

6.Txhais kev tsim qauv

Txawv cov qauv tsim, me me thiab cov tswv yim.
