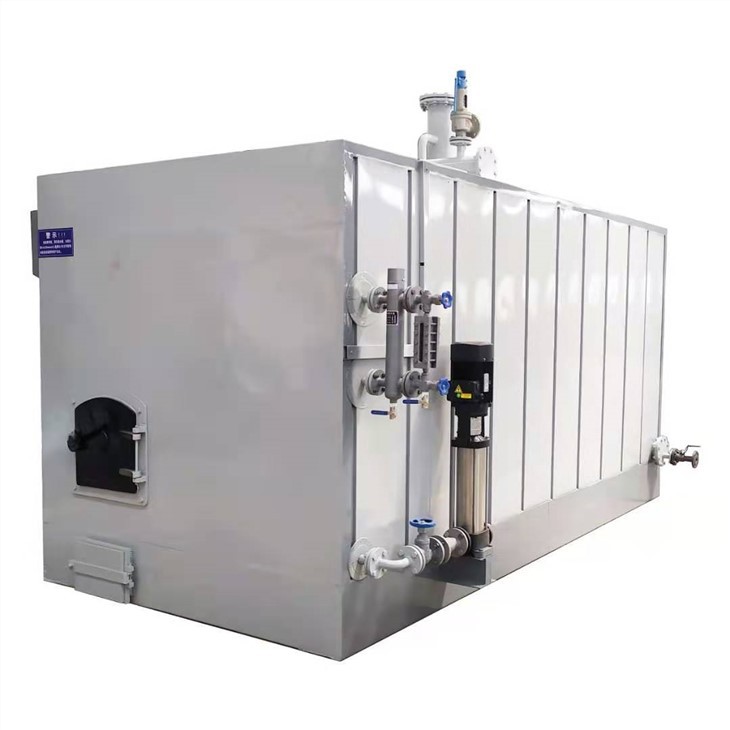

Kab rov tav Biomass Pellet Ntoo Sib Tsoo Chav Generator
Biomass Chav Generator
Qauv: FTSG (Biomass) Series
Kev Muaj Peev Xwm: FTSH (Biomass) 0.3-1T / H
Chav Siab: 0.7Mpa (Xaiv tau raws li kev thov)
Roj: Biomass Particle, Ntoo ， Coal
Daim ntaub ntawv: Kev ntxhua khaub ncaws ntxuav thiab Ironing, Biochemical, Khoom Noj Khoom Haus Thiab Dej Haus Chav Ua Noj, Kev Kho Vaj Tsev Tsev, Yas Ua Npuas Ncauj, Ua Ntoo Ntoo, thiab lwm yam.
Khoom Taw qhia
Khoom Piav Qhia
FTSG series kab rov tav biomass (ntoo) chav tsim hluav taws xob yog lub rhaub dej me me nrog cov dej xa hluav taws xob sab hauv.
Kev ua haujlwm hauv dej yog yooj yim, txheej txheej hauv cheeb tsam yog qhov tsim nyog thiab tsim nyog, kev sib cais cua sov yog ceev, chav siab nce siab tau nrawm, kev sib txuam siab yog txav tau yooj yim, hloov tau yooj yim thiab yooj yim los tswj.
Haum rau kev sib txuas ncaj qha ntawm biomass, orchid hluav ncaig thiab ntoo ntawm ntau yam duab, muaj cov roj muaj zog yoog raws.
Kev tsim tshwj xeeb ntawm kev sib txuas ntawm cov tog raj kheej thiab kab rov tav pa dej paws rov qab ua rau muaj peev xwm ua kom tshav kub ntau dua thiab ua kom muaj zog thermal.
Daim duab
Cov khoom lag luam zoo
1 Tus qauv ntawm lub tshuab ua kom sov
Kev tsim hluav taws xob tsis zoo tshwj xeeb, tuaj yeem hlawv biomass pellet, kuj tuaj yeem hlawv ntoo, hluav ncaig hluav taws lossis lwm yam roj.
2 evaporation sai
Tom qab lub rhaub dej yog pib (3-5 feeb), chav dej yog tsim tawm sai thiab ncav cuag kub thiab siab sai.
3 Cov ua haujlwm siab thermal
Ntsug cov yeeb nkab dej ua pa phab ntsa qauv, ua kom thaj chaw txais kev tshav kub, txo kom tsis muaj cua sov, txuag roj.
4 Piav qhia tib neeg tus qauv
Tsawg chaw nres nkoj noj khoom tsim, kev pub mis yooj yim, txo kev siv zog ntawm cov neeg ua haujlwm.
5 Muaj kev nyab xeeb siab
(1) Kev tsim sab hauv sab dej qis, tsis tas yuav tshuaj xyuas daim ntawv pov thawj.
(2) Nruab nrog lub thaiv kev nyab xeeb, xws li dej tsis txaus, overpressure, sib tsoo, cua tshuab, lub cev muaj zog sib tshooj thiab lwm yam kev tiv thaiv kev nyab xeeb.
6 Muaj kev cia siab rau
(1) Tag nrho lub tshuab yog tsim raws li tus qauv ntawm cov khoom siv hluav taws xob loj loj boiler.
(2) Kev tiv thaiv kev nyab xeeb ntaus ntawv: lub siab tswj, lub tshuab ntsuas lub siab, lub ntsuas kev nyab xeeb, lub ntsuas cua, tsis siv neeg tswj dej ntawm cov dej, thiab lwm yam.
FTSG Biomass Chav Generator
Qauv | Kwv Txhiaj Plees peev xwm (t / h) | Rated siab (MPa) | Chav kub (℃) | Kev ntsuas kom sov ua tau zoo (%) | Kev siv roj (kg / teev) | Qhov ntev LxW × H (cm) | Nyhav (t) |
FTSG0.0.3-0.7 | 0.3 | 0.7 | 170 | ≥93 | 53 | 200*190*270 | 3.1 |
FTSG0.5-0.7 | 0.5 | 0.7 | 170 | ≥93 | 66 | 225*250*310 | 4.2 |
FTSG0.7-0.7 | 0.7 | 0.7 | 170 | ≥93 | 110 | 265*250*335 | 5.6 |
FTSG1-0.7 | 1 | 0.7 | 170 | ≥93 | 155 | 235*310*335 | 6.8 |
Peb Lub Tuam Txhab
Daim ntawv pov
Cov Qhua Tuaj Saib
Ntim& Kev Thauj Mus Los
Cov FAQ
1. Q. Koj puas yog cov tsim khoom?
A: Yog lawm, peb yog cov chaw tsim khoom tsim kev ua lag luam boiler thiab lub nkoj siab nyob rau hauv Henan, Suav.
2. Q: Koj puas muaj daim ntawv pov thawj twg?
A: Yog lawm. Peb lub boiler tau txais Tuam Tshoj GB ISO daim ntawv pov thawj thiab daim ntawv pov thawj CE ntawm EU. Peb kuj tuaj yeem muab ASME, GHOST thiab lwm daim ntawv pov thawj tsim nyog yog tias koj xav tau.
3. Q: Lub sijhawm xa khoom ntawm kab rov tav biomass chav tsim hluav taws xob?
A: 5-10 hnub ua haujlwm rau tib lub tshuab, thiab 30-40 hnub ua haujlwm rau qhov kev txiav txim ntau thiab qhov rooj xa qhov rooj rau kev pabcuam kuj tseem muaj.
4.Q:Dab tsi tsis Kuv yuav tsum muab los muab ib nqe lus?
Koj yuav zoo dua muab cov tsis xws li lub peev xwm, roj, kev ua haujlwm siab, yog li ntawm rau qhov rov hais dua sai thiab meej.
5.Q:Koj puas muab kev pabcuam customized rau koj cov khoom?
Yog, Peb tuaj yeem kho lub rhaub dej raws li cov roj, chav muaj peev xwm thiab chav siab siab los ntawm cov neeg siv khoom.
