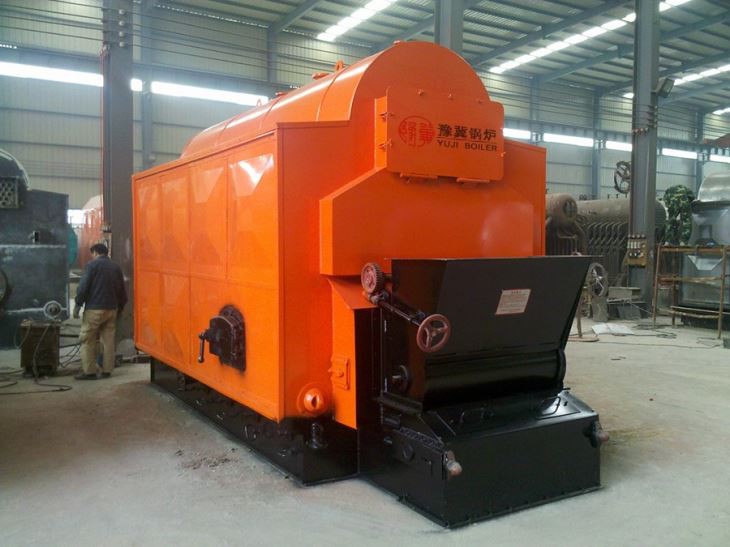

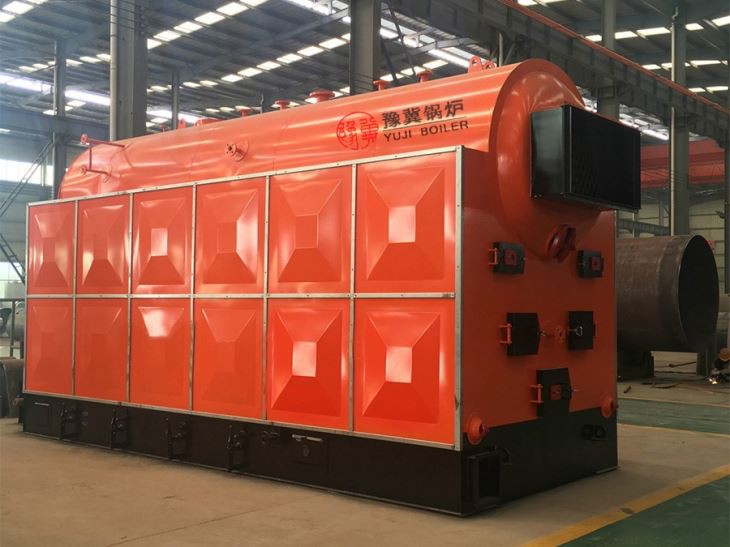

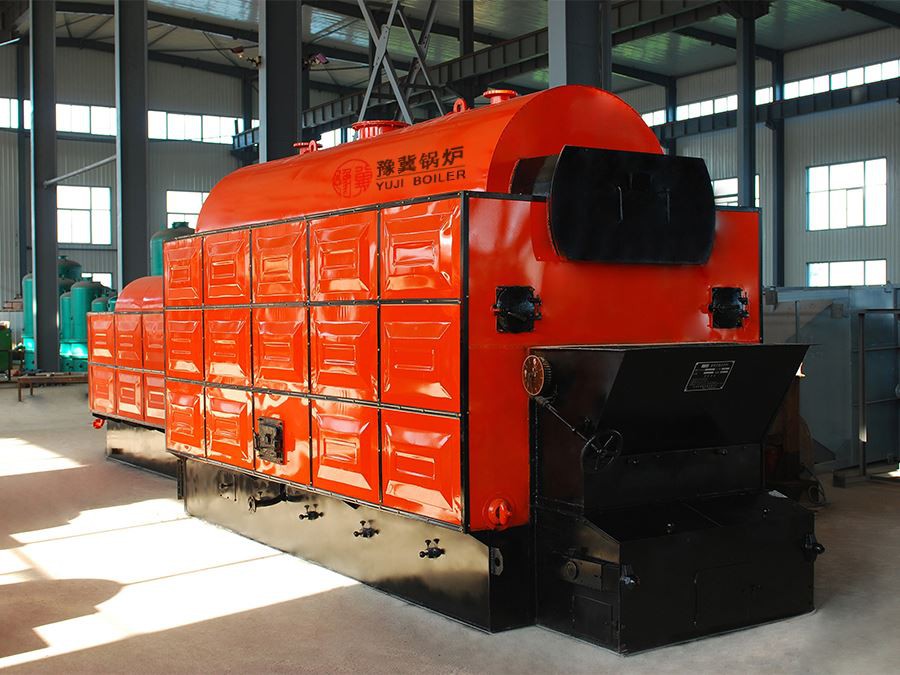

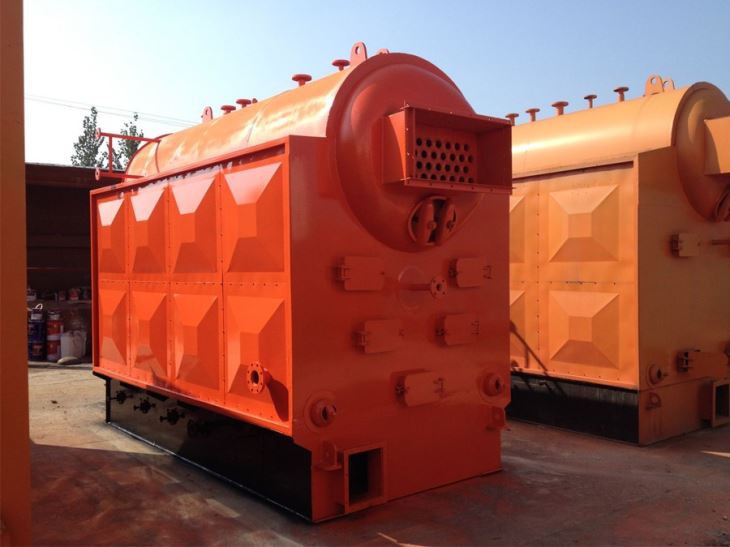

DZL Ntse Ua Hluav Taws Xob Raug Rho Tawm Tsam Grate Chav Boiler qis Siab Boiler System

Qauv: DZL Series
Kev Muaj Peev Xwm: 1T / H-25T / H
Chav Siab: 0.7Mpa-2.5Mpa (Xaiv tau raws li xav tau)
Chav Kub: 0 ℃ - 226 ℃
Roj: Coal, Anthracite, Bituminous Coal, Lignite, thiab lwm yam.
Daim ntawv thov: Lub Hoobkas Tshuaj Txhim Kho Khoom, Chaw tsim tshuaj paus qab zib, chaw ua tshuaj, textile Hoobkas, luam ntawv thiab zas xim, chaw ua haujlwm khaub ncaws, chiv Hoobkas, chaw ua haujlwm pub mis, roj hmab Hoobkas, cog khoom cog, ntxuav Hoobkas, tsev kho mob, tsev so, thiab lwm yam.

Khoom Taw qhia

Taw qhia

Chain grate chav rhaub yog tsim raws li ib lub tshuab nruas nruas nrog cov raj hluav taws thiab cov raj dej. Coal boiler rauv taws ua kom sov sai sai, ua haujlwm ruaj khov ntawm lub tshuab ua kom muaj zog, muaj zog ntau yam ntxiv rau cov roj biomass, cov qauv hluav taws xob thiab cov ua haujlwm siab thermal. Qhov no cov txheej txheem ntawm cov rwj tau txais qhov tseeb kev kawm txog chav boiler chav nyob rau hauv kev lag luam xws li arched tube phaj thiab threaded flue pa luam yeeb kav, uas zoo txhim kho kev ua hauj lwm tag nrho ntawm lub boiler thiab tiv thaiv qhov tshwm sim ntawm kev ua txhaum xws li grate coking thiab raj phaj paim quav.

Cov lus qhia tseem ceeb: Peb tuaj yeem kho lub rhaub dej rau koj raws li cov roj, qhov muaj peev xwm thiab chav siab raws li cov neeg xav tau.

Khoom Daim Ntawv Qhia

Cov tsis

Qauv	Nyob evaporation Peev Xwm (t/h)	Rated siab (MPa)	Chav sov (℃)	Kev ntsuas kom sov ua tau zoo (%)	Kev siv roj (kg / teev)	Qhov ntev L×W×H (m)	Ceeb thawj (t)
DZL1-1.25-AII	1	1.25	194/204	≥83	176.6	5.1×2.2×2.9	15
DZL2-1.25-AII	2	1.25	194/204	≥83	352.3	6.14×2.6×3.3	18
DZL3-1.25 / 1.6-AII	3	1.25/1.6	194/204	≥83	522	6.33×2.7×3.3	24
DZL4-1.25 / 1.6-AII	4	1.25/1.6	194/204	≥83	571	6.88×2.7×3.3	27
DZL6-1.25 / 1.6-AII	6	1.25/1.6	194/204	≥83	1044	7.29×3.2×3.7	31
DZL8-1.25 / 1.6-AII	8	1.25/1.6	194/204	≥83	1396.5	7.8×3.4×3.7	33
DZL10-1.25 / 1.6-AII	10	1.25/1.6	194/204	≥83	1743.3	8.5×3.4×3.7	41

Cov khoom lag luam zoo

1. High efficiency, tus nqi qis
(1) Membrane phab ntsa dej yeeb nkab kev teeb tsa kom thaj chaw kom sov ntau dua thiab txhim kho cov thermal txuag
(2) Lub zog txuag hluav taws xob tau teeb tsa rau tom qab kom siab nqus cov cua sov pov tseg thiab txuag nqi
2. Muaj kev ruaj ntseg siablag luam
(1) PLC ntse tswj lub cev tuaj yeem paub txog kev ua haujlwm tsis siv neeg ntawm kev them nyiaj, ua haujlwm ua haujlwm, pib kiv cua thiab nres, kev tso dej tawm, slag tawm, thiab lwm yam, nws tseem muaj kev tiv thaiv kev tiv thaiv kev ua haujlwm xws li overpressure, overtemperature, dej tsis txaus, dej xau, lub cev muaj zog sib tshooj, lwm yam.
(2) Teeb ntau qhov kev tiv thaiv kev nyab xeeb, ntsuas kev nyab xeeb, ntsuas pa theem dej,
siab ntsuas ntsuas, ntsuas siab, thiab lwm yam kom ua haujlwm zoo
3. Kev nyab xeeb tshwj xeebtsim
(1) Lub nruas dej boiler muaj qhov ua nrog nrog qhov tsis tshua muaj dej nyob hauv kev paub txog kev nyab xeeb
ntaus ntawv, uas tuaj yeem ncaj qha nrhiav cov dej hauv qib hauv qhov cub, thiab tsis muaj dej tsis muaj dej txaus.
(2) Lub cev boiler txais yuav kev ua tiav txhua yam kev kho cua sov kom tshem tawm cov kev ntxhov siab steel thiab ua haujlwm yam tsis muaj teeb meem

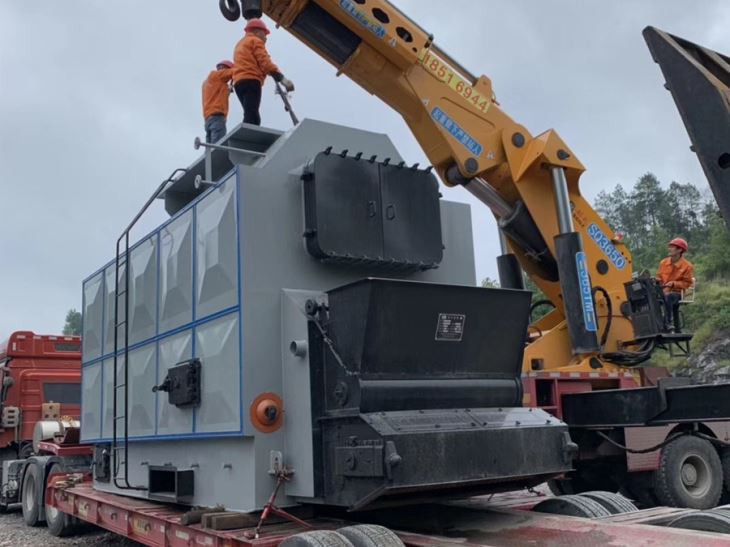

4. Tsheb thauj mus los yooj yim
Lub rhaub dej thiab lub tshuab pabcuam pabcuam yog sib sau ua ke tus qauv, lub sijhawm nruab yog lub sijhawm luv, thiab kev nqa thiab kev thauj mus los yooj yim

image007_

Pob& Txaj Muag

image005(001)

Tuam txhab ua hauj lwm Txheej txheem cej luam

Tuam txhab' s Daim Ntawv Pov Thawj

Cim npe nrov: DZL thee hluav taws kub saw saw ncu ncu rhawv boiler siab tsis tshua muaj siab siab boiler system, Tuam Tshoj, tuam ntxhab, Hoobkas, customized, nqe
