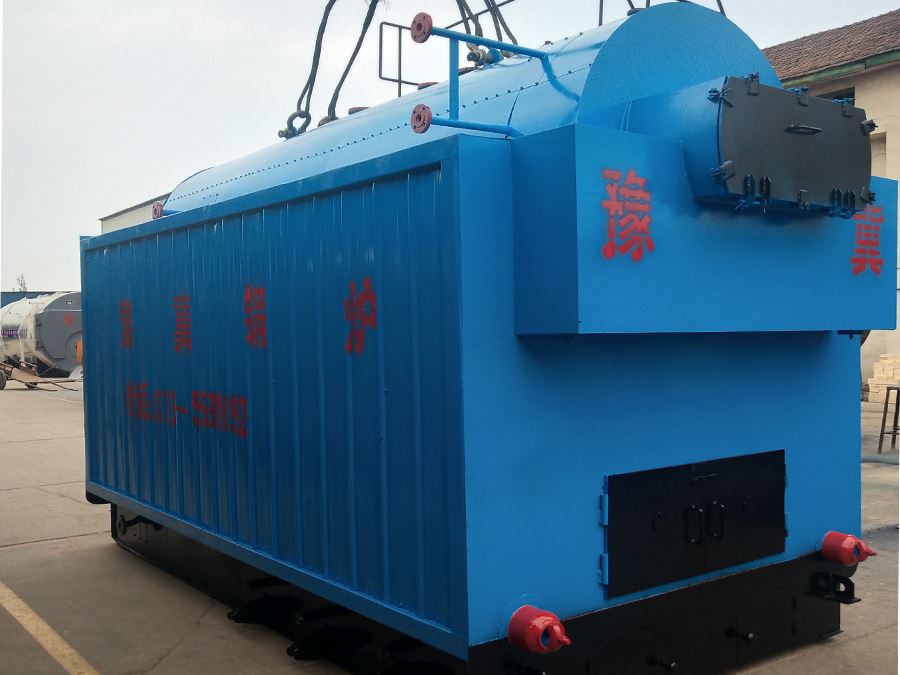

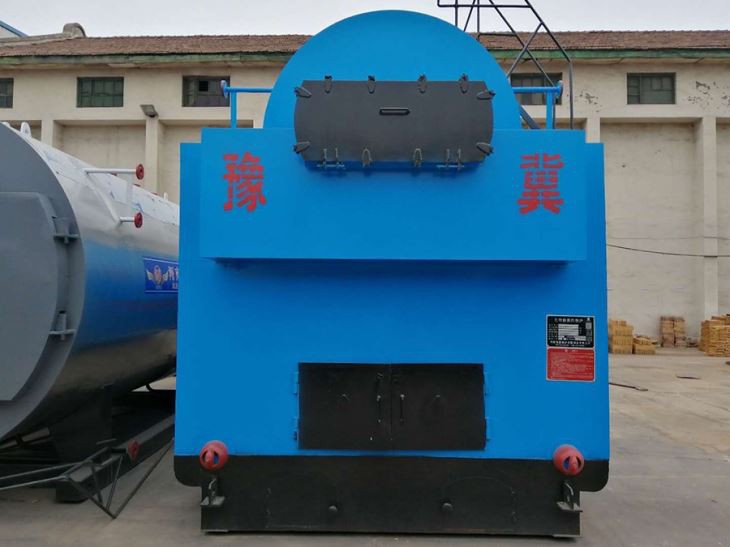

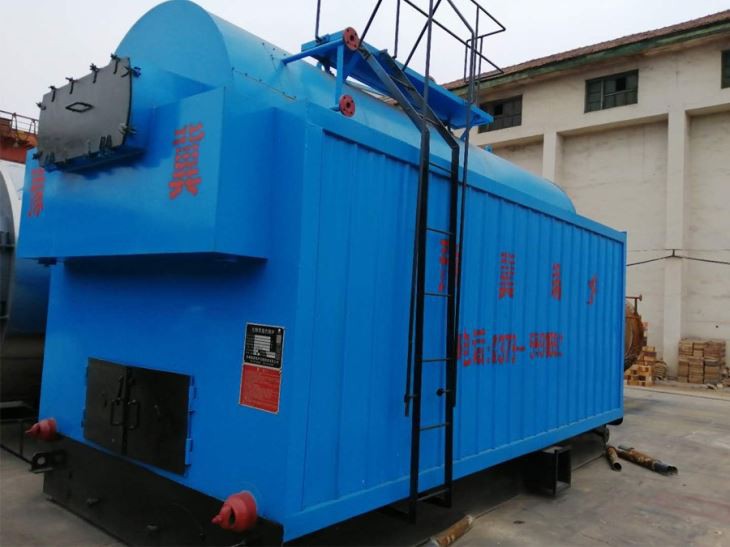

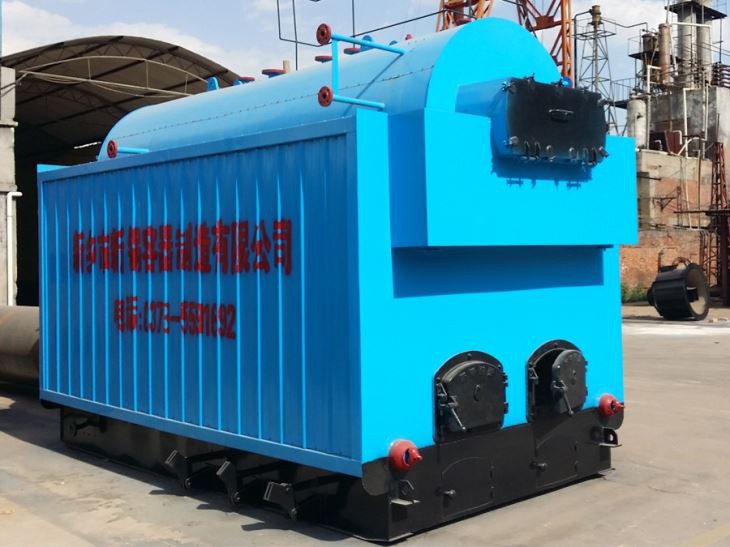

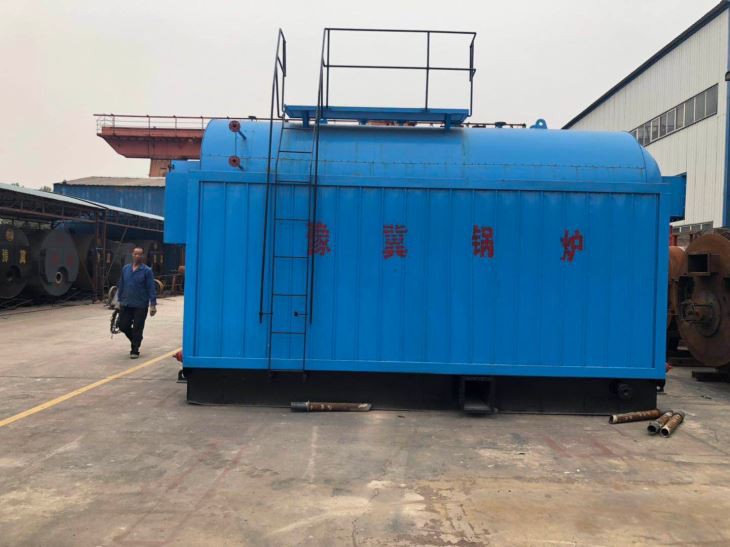

DZH Thee Ua Hluav Taws Xob Tsho Mus Tsuag Tshav Kub Cov Dej Kub Boiler

DZH Coal Raug Rho Tawm Haujlwm Dej Kub Boiler
Qauv: DZH Series
Tus nqi zog: 0.7MW-7MW
Chav Siab: 0.7Mpa-1.25Mpa (Xaiv tau raws li qhov xav tau)
Roj: Sawdust, Biomass Pellets, Rice Husk, Peanut Husk, Ntoo, Pob Zeb, Husk Husk, Pob Kws Husk, Pob Kws Cob, Bagasse, Khaub Qoob thiab Lwm Cov Qoob Loo thiab Lwm Cov Khoom Roj.

Khoom Taw qhia

Taw qhia

Cov dej kub kub rhaub dej kub yog tsim los nrog tib lub nruas boiler nrog cov raj hluav taws thiab dej raj. Tes hluav taws kub nyhiab boiler muaj cov kab hluav taws kub ceev thiab nce ceev ceev siab nce. Txoj kev xa cov roj tuaj yog phau ntawv lossis siv tshuab. Cov khoom siv ncaj qha hlawv, uas yog qhov tshwj xeeb yoog roj. Lub pob zeb hluav taws kub txav txav cov dej kub kub boiler txais yuav cov cuab yeej tshiab hauv kev lag luam xws li arched raj ntawv thiab xov flue kav, uas ua kom zoo ntawm kev ua hauj lwm tag nrho ntawm boiler thiab tiv thaiv qhov tshwm sim ntawm qhov tsis xws li coking ntawm cov grate thiab to ntawm cov raj raj.

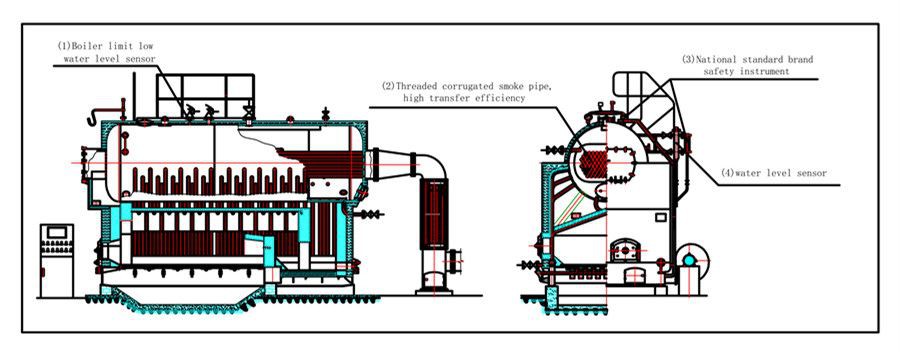

Khoom Qauv Tsim Teeb Duab

Cov tsis

Qauv	Rated zog (mw)	Rated siab (MPa)	Kev ntsuas kom sov ua tau zoo (%)	Kev siv roj (kg / teev)	Muab dej tsis zoo. (℃)	Xa rov qab dej temp. (℃)	Nyhav (t)
DZH0.7-1.25 / 95/70	0.7	1.25	≥83	174.3	95	70	13.6
DZH1.4-1.25 / 95/70	1.4	1.25	≥83	348.6	95	70	18
DZH2.1-1.25 / 95/70	2.1	1.25	≥83	517	95	70	23
DZH2.8-1.25 / 95/70	2.8	1.25	≥83	687.2	95	70	25.3
DZH4.2-1.25 / 95/70	4.2	1.25	≥83	1023.8	95	70	31
DZH5.6-1.25 / 115/70	5.6	1.25	≥83	1374	115	70	34
DZH7-1.25 / 115/70	7	1.25	≥83	1708	115	70	39

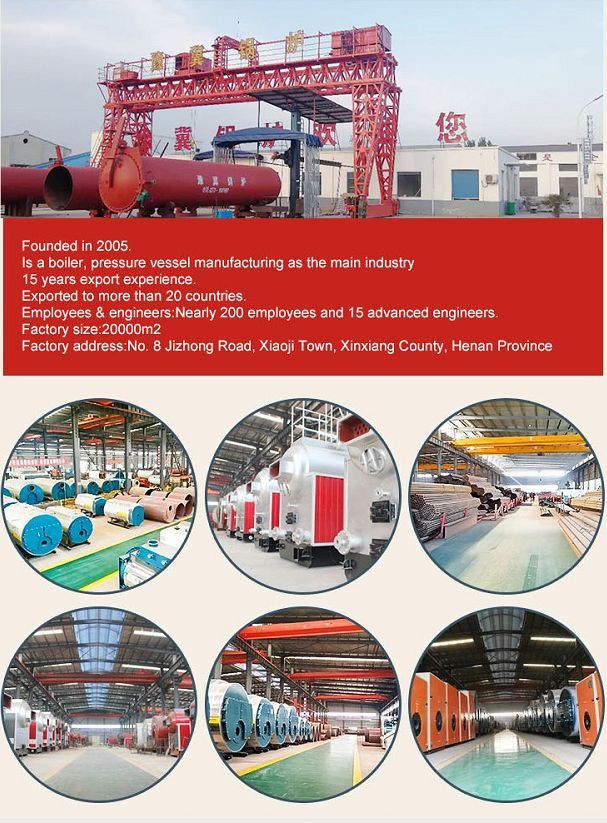

Tuam txhab taw qhia

Kev Xa Khoom. Ntim
