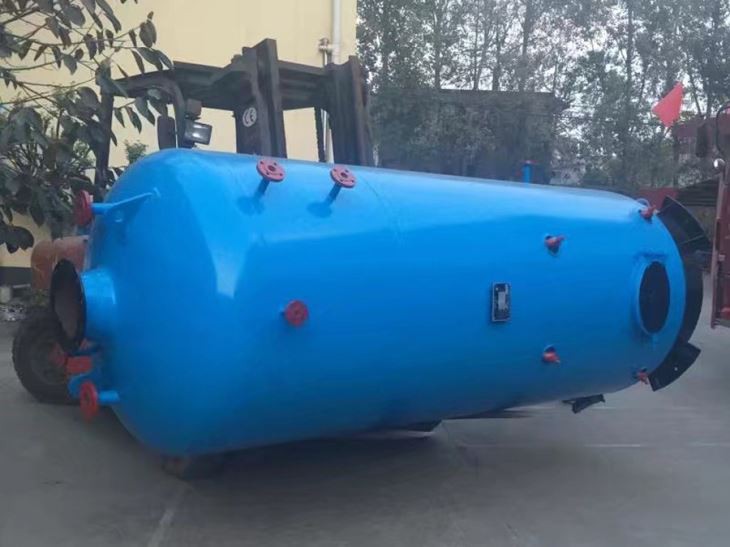

LSH Series Ntsug Ntse Dej Kub Dej Boiler Ua Lag Luam

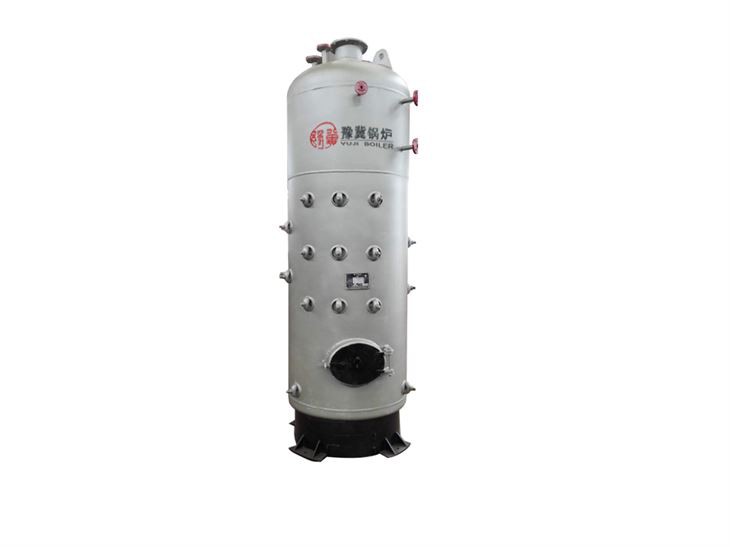

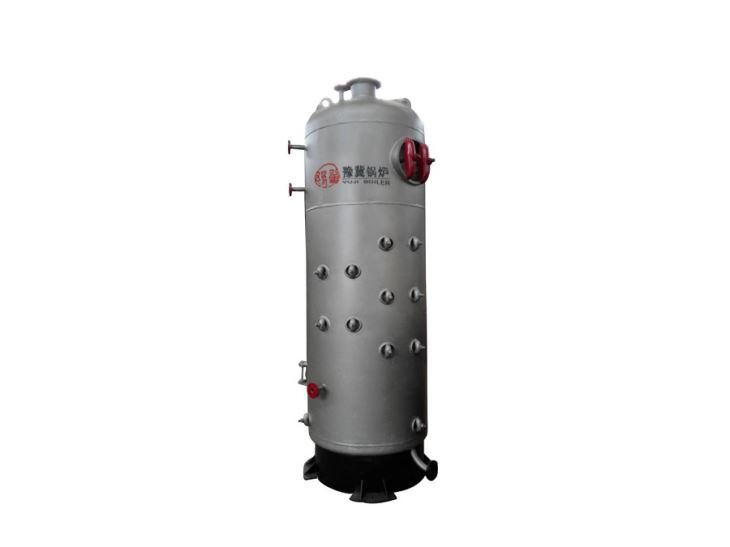

LSH Series Ntsug Ntse Dej Kub Boiler
Qauv: LSH Series coj mus muag dej lub rhaub
Tus nqi zog: 0.14MW-0.7MW
Cov pa ntsuas siab: 0.4Mpa-1.0Mpa (Xaiv tau raws li xav tau)
Chav ntsuas kub: 0 ℃ - 183 ℃
Roj: Coal, Anthracite, Bituminous Coal, Lignite, thiab lwm yam.

Khoom Taw qhia

Txheej txheem cej luam

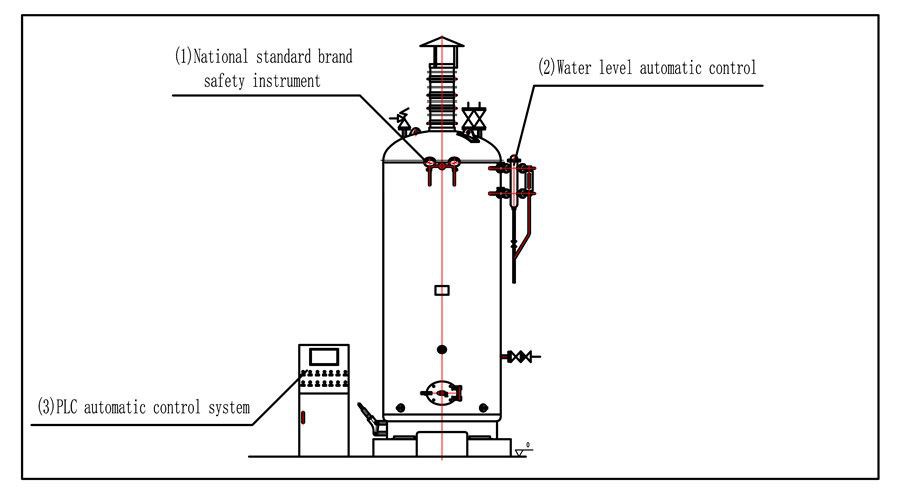

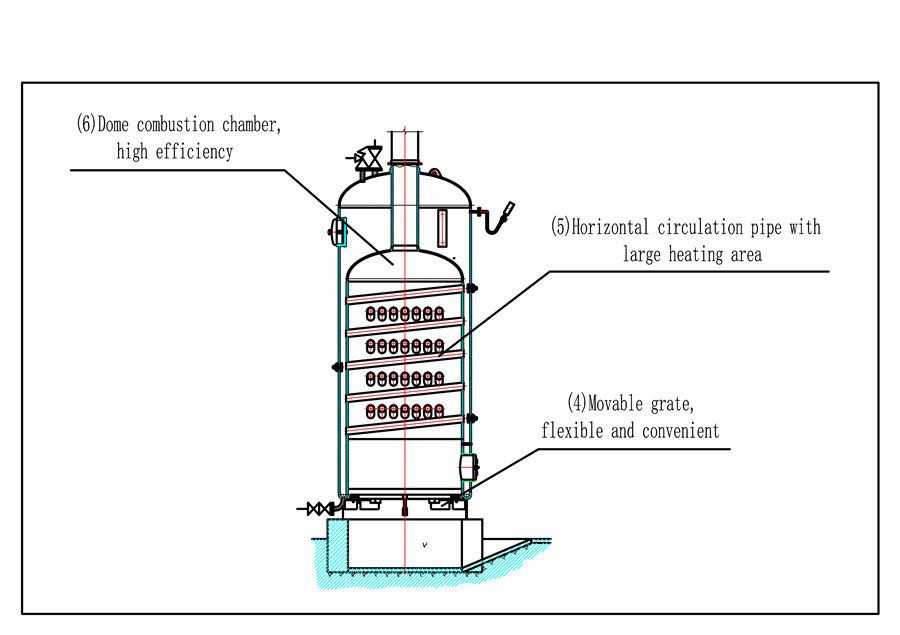

Ntsug thee kub dej kub boiler yog qhov ntim me me ntawm boiler nrog kev tsim tsim sab hauv cov pa xa mus los. Tus dej ntws du, kev tsim qauv thiab tsim nyog ntawm thaj chaw cua sov, kev sib tw ceev ceev, kev sib tw ceev ceev kom sov siab, thiab txav tau cov tshuab txuas tau zoo, yooj ywm thiab yooj yim los tswj. Haum rau qhov ncaj qha nrog kev sib txuas ntawm ntau cov duab biomass, muaj zog roj adaptability. Nws adopts dome combustion chamber thiab kab rov tav ncig dej kav, ua rau kom lub tshav kub ntau haum thiab muaj cua sov ua hauj lwm zoo. Tsis muaj tus kiv cua xav tau rau cov cua ua haujlwm ua haujlwm, ua haujlwm yooj yim.

Daim Ntawv Piav Qhia

Cov tsis

Qauv	Rated zog (mw)	Rated siab (MPa)	Kev ntsuas kom sov ua tau zoo (%)	Kev siv roj (kg / teev)	Muab dej tsis zoo. (℃)	Xa rov qab dej temp. (℃)	Qhov ntev D×H (m)	Nyhav (t)
LSH0.14-0.4 / 95/70	0.14	0.4	≥83	35	95	70	0.91×2.9	0.98
LSH0.21-0.4 / 95/70	0.21	0.4	≥83	52	95	70	1.02×3.2	1.6
LSH0.35-0.4 / 95/70	0.35	0.4	≥83	88.4	95	70	1.32×3.7	2.88
LSH0.49-0.4 / 95/70	0.49	0.4	≥83	121.8	95	70	1.42×3.9	3.67
LSH0.7-0.7 / 95/70	0.7	0.7	≥83	176	95	70	1.62×4.4	4.8
