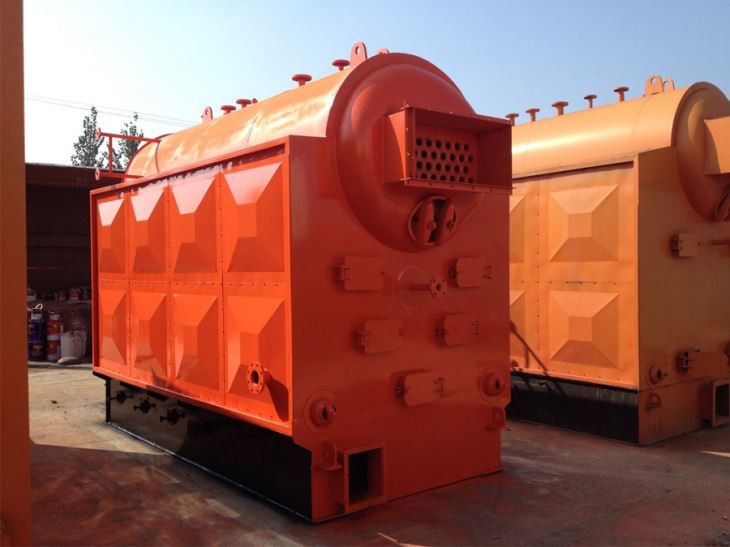

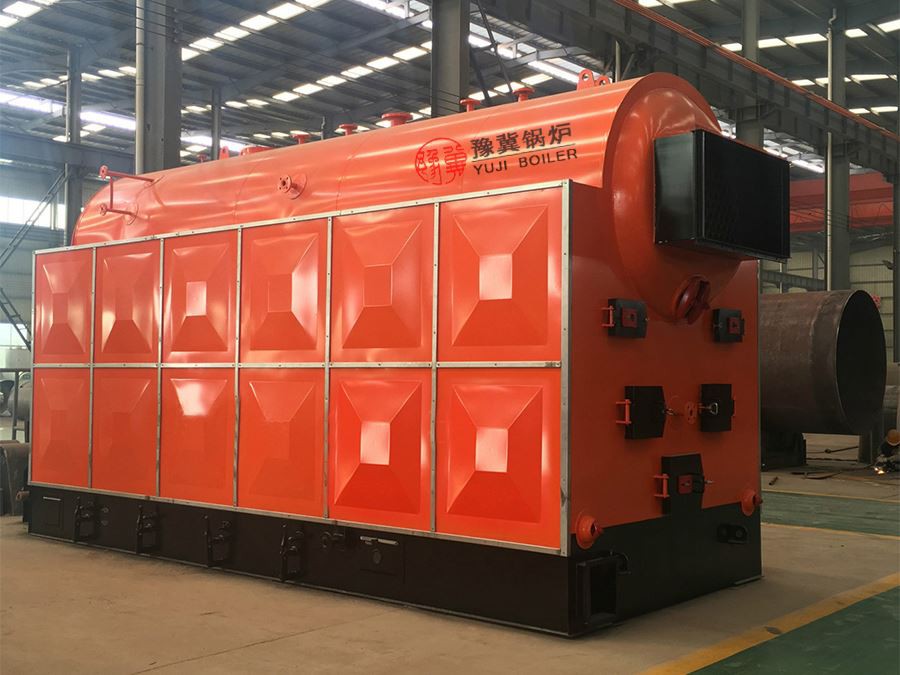

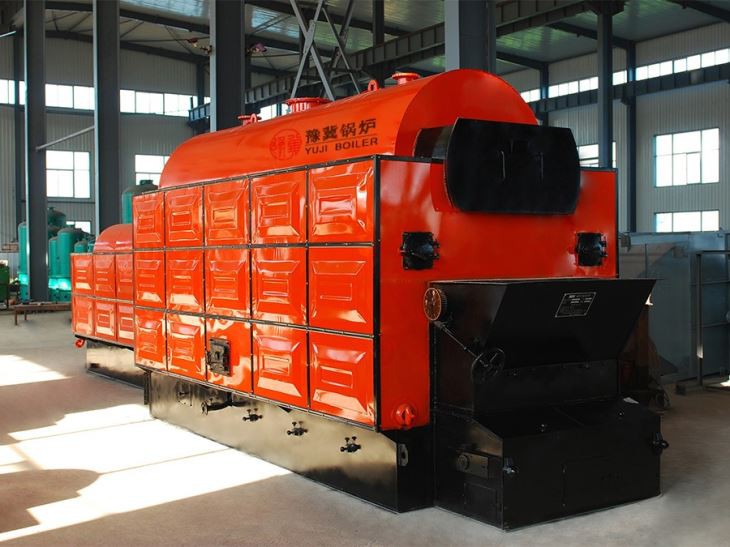

DZL Ntse Ua Hluav Taws Xob Raug Rho Tawm Tsam Grate Kub Dej Boiler

DZL Dej Tube Dej Raug Rho Tawm Haujlwm Dej Kub Boiler
Qauv: DZL Series
Tus nqi zog: 0.7MW-7MW
Chav Siab: 0.7Mpa-2.5Mpa (Xaiv tau raws li xav tau)
Chav Kub: 0 ℃ - 226 ℃
Roj: Coal, Anthracite, Bituminous Coal, Lignite, thiab lwm yam.

Khoom Taw qhia

Taw qhia

Pob zeb kaw saw hlau txuas nrog dej kub npau npau. Nws muaj lub tshav kub ceev conduction, lub zog nrawm nrawm nce ntxiv, ua qauv tsis ua haujlwm, siab thermal efficiency thiab haum rau txhua hom thee. Qhov no cov dej rhaub txais yuav cov cuab yeej tshiab tshaj plaws ntawm cov dej kub rhaub dej thiab arched raj cua tshuab, threaded flue pa luam yeeb kav, uas zoo txhim kho kev ua hauj lwm tag nrho ntawm boiler thiab tiv thaiv qhov tshwm sim ntawm kev ua txhaum xws li grate coking thiab lub raj kab ua xau.

Cov lus qhia tseem ceeb: Peb tuaj yeem kho kho lub rhaub dej kub rau koj raws li cov roj, muaj peev xwm thiab chav siab zog raws li cov neeg xav tau.

Khoom Muag Khoom

Qauv	Rated zog (mw)	Rated siab (MPa)	Kev ntsuas kom sov ua tau zoo (%)	Kev siv roj (kg / teev)	Qhov ntev L×W×H (m)	Nyhav (t)
DZL0.7-1.25 / 95/70	0.7	1.25	≥83	174.3	5.1×2.2×2.9	15
DZL1.4-1.25 / 95/70	1.4	1.25	≥83	348.6	6.14×2.6×3.3	18
DZL2.1-1.25 / 95/70	2.1	1.25	≥83	517	6.33×2.7×3.3	24
DZL2.8-1.25 / 95/70	2.8	1.25	≥83	687.2	6.88×2.7×3.3	27
DZL4.2-1.25 / 95/70	4.2	1.25	≥83	1024	7.29×3.2×3.7	31
DZL5.6-1.25 / 95/70	5.6	1.25	≥83	1374.3	7.8×3.4×3.7	33
DZL7-1.25 / 95/70	7	1.25	≥83	1708	8.5×3.4×3.7	39

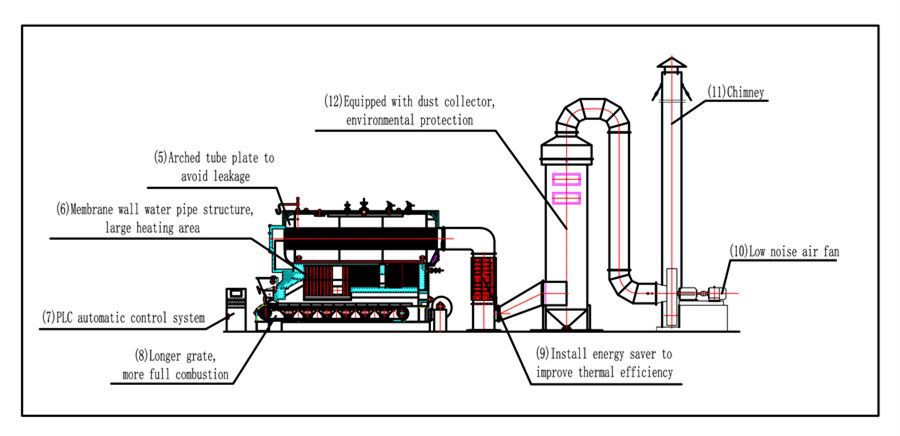

Khoom Qauv Khoom

Cov khoom lag luam zoo

1、High efficiency, tus nqi qis

Cov qauv khoom Lub cev lub cev boiler tau tsim nrog membrane phab ntsa dej yeeb nkab, nrog dej yeeb nkab thiab hluav taws kub yeeb nkab tib lub sijhawm, tus Tsov tus tw tau muab nrog lub zog txuag.

2、Siab ruaj khov ua haujlwm

(1) PLC tsis siv neeg tswj qhov system, kom paub txog ntau - ua haujlwm sib cuam tshuam

(2) Teeb tsa ntau qhov kev tiv thaiv kev nyab xeeb, ntsuas kev nyab xeeb, ntsuas dej ntawm lub tswb, ntsuas qhov ntsuas siab, ntsuas lub siab, thiab lwm yam kom ntseeg tau tias kev ua haujlwm zoo

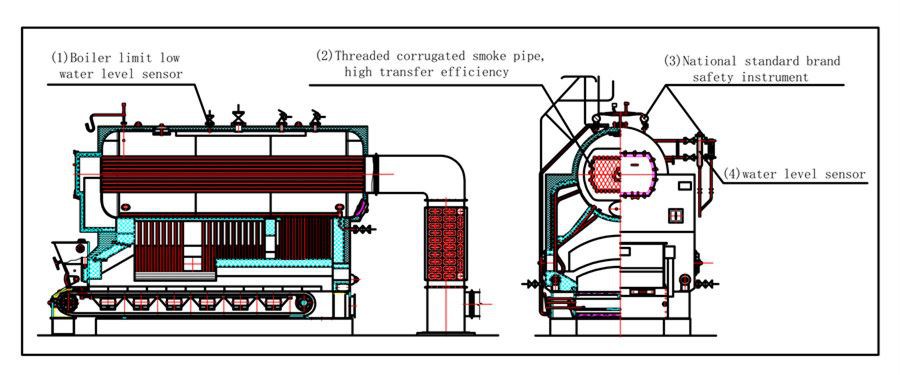

3、Kev nyab xeeb tshwj xeebtsim

(1) Lub nruas dej boiler muaj qhov ua nrog txwv tsis pub muaj dej tsawg tshaj plaws nkag siab txog kev nyab xeeb, uas tuaj yeem pom ncaj qha txog qib dej nyob hauv qhov cub tawg.

(2) Lub cev boiler txais yuav kev ua tiav txhua yam kev kho cua sov kom tshem tawm cov kev ntxhov siab steel thiab ua haujlwm yam tsis muaj teeb meem

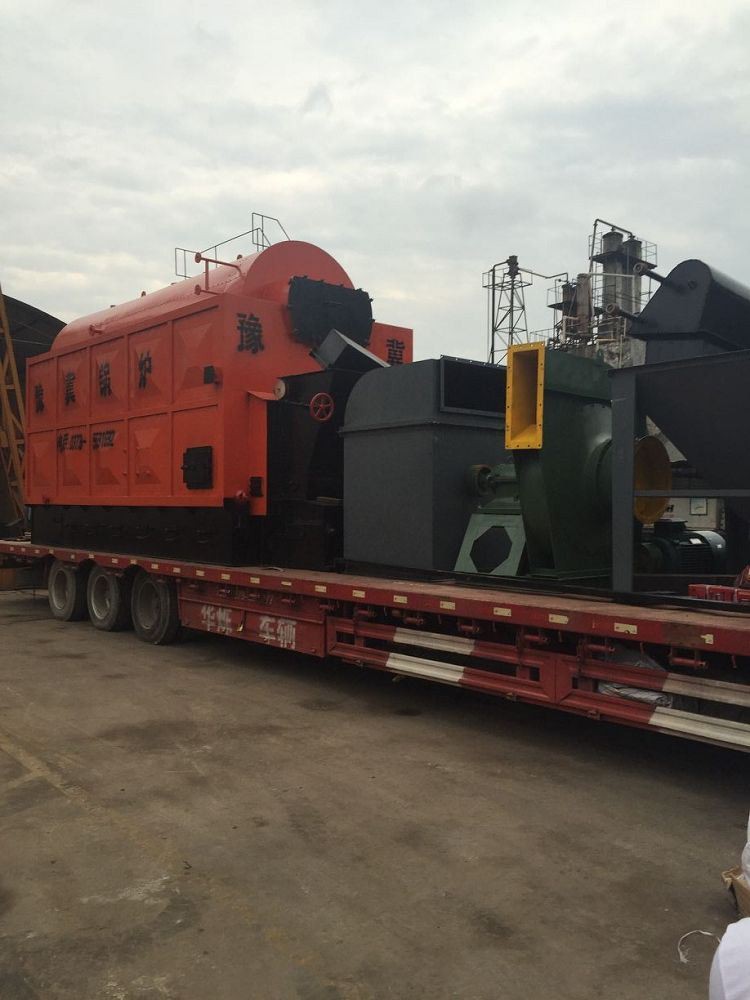

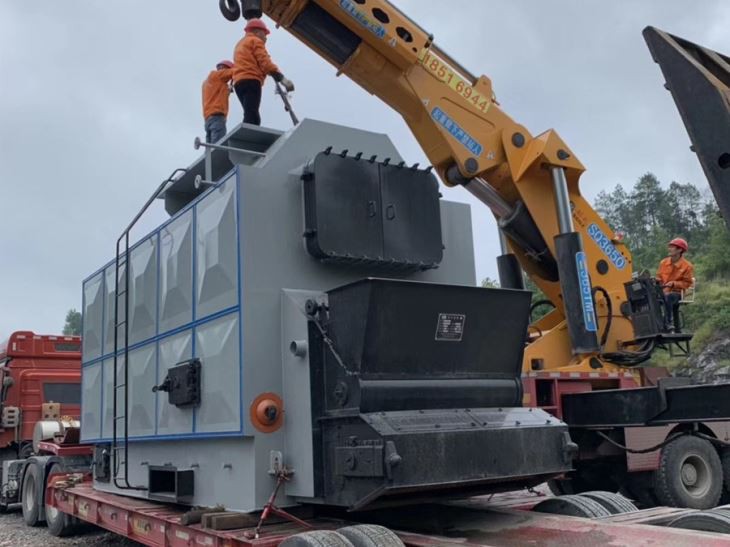

4、Kev sib dhos saithiab kev thauj mus los yooj yim

Lub rhaub dej thiab lub tshuab pabcuam pabcuam yog sib sau ua ke tus qauv, lub sijhawm nruab yog lub sijhawm luv, thiab kev nqa thiab kev thauj mus los yooj yim

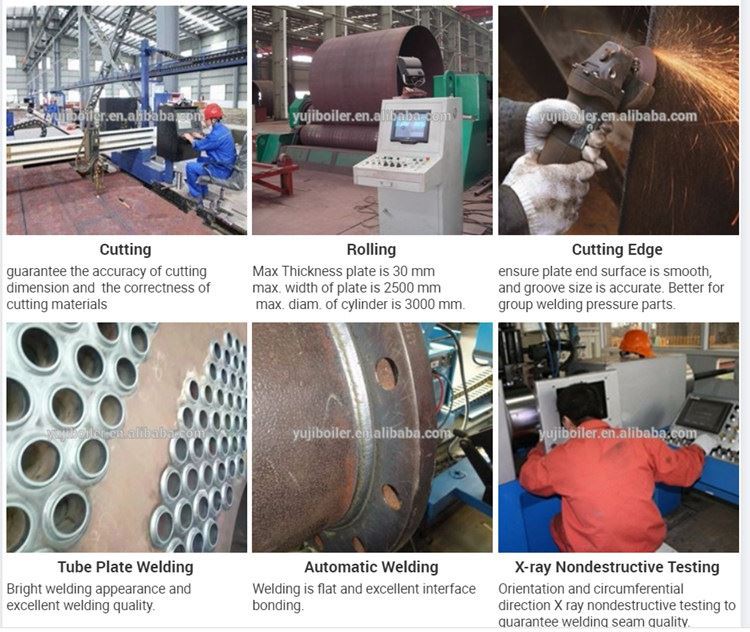

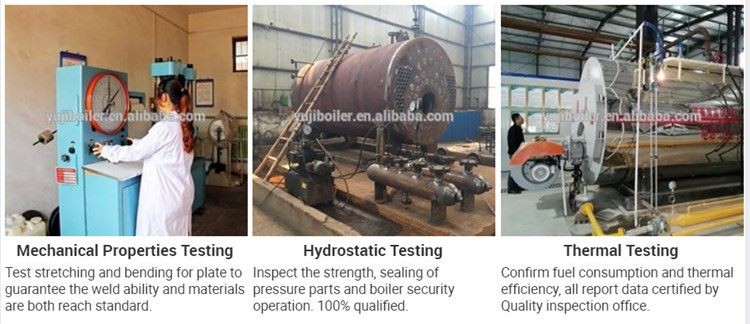

Cov Txheej Txheem Ntau Lawm
