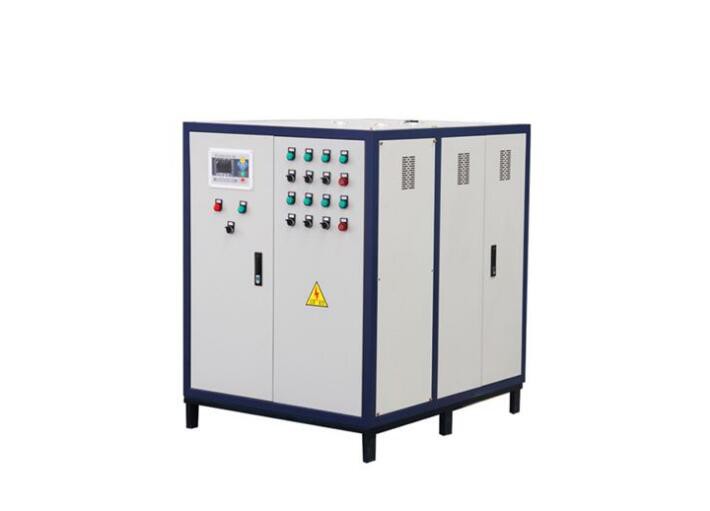

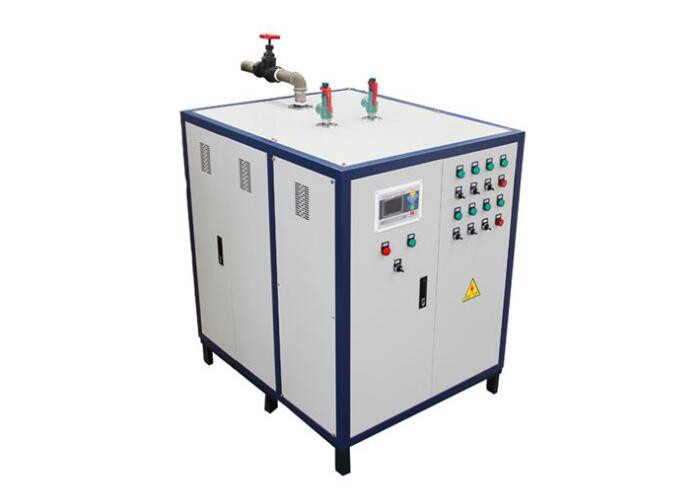

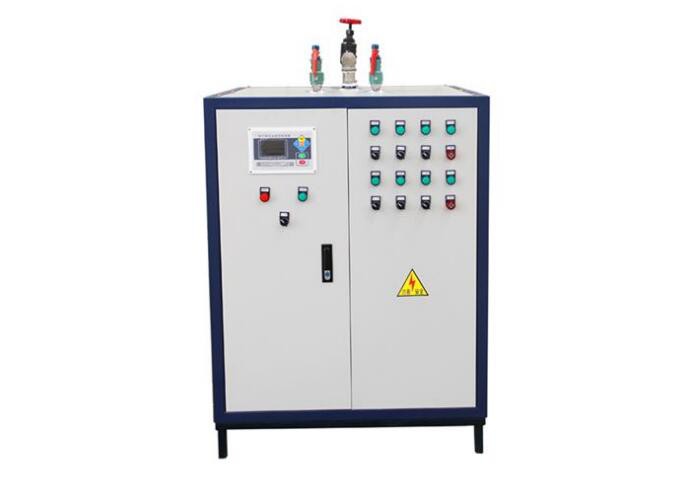

LDR Daim Ntawv Kev Lag Luam Hluav Taws Xob 40 L Chav Generator

Hluav taws xob cua sov ceev Steam Generator
Qauv: LDR (Cov Cuab Yeej Hluav Taws Xob) Series
Chav Muaj Peev Xwm: LDR (Electric Cua sov) 0.01-0.4T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)

Khoom Taw qhia

Product Description

Ntsug tsim hluav taws xob chav boiler, cov cua kub ntsiab lus yog tag nrho submerged nyob rau hauv dej thiab tag insulated-siab efficiency thiab tsawg kawg nkaus hluav taws xob poob. Tom qab precision xam& tsim, boiler tuaj yeem ncav cuag kev ua haujlwm siab. Siv cov khoom siv hluav taws xob qis qis-- tsis yooj yim yaj lossis softened.Txhua qhov sib xyaw nrog dej siab thiab tiv taus qhov ntsuas hluav taws xob.Boiler tuaj yeem ua haujlwm tam sim tom qab txuas rau lub zog thiab dej. Ze li 100% thermal efficiency - ntsiag to, huv si, ntau nyob rau hauv txoj kab nrog ib puag ncig yuav tsum, Tsis muaj atmospheric emissions NOx (nitrogen oxides)

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag (kw)	Thermal efficiency (％)	Chav ntsuas kub (℃)	Dimension (m)	Qhov hnyav (t)
LDR 0.008-0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR 0.012-0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR 0.016-0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR 0.024-0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR 0.032-0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR 0.065-0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR 0.075-0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR 0.1-0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR 0.13-0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR 0.2-0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR0.24-0.4/0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR0.28-0.4/0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog sai sai (3-5 feeb) tom qab boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov txheej txheem phab ntsa membrane, nce qhov chaw nqus cua sov thiab txo cov cua sov, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, qib dej tsis siv neeg tswj, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Daim ntawv pov thawj
