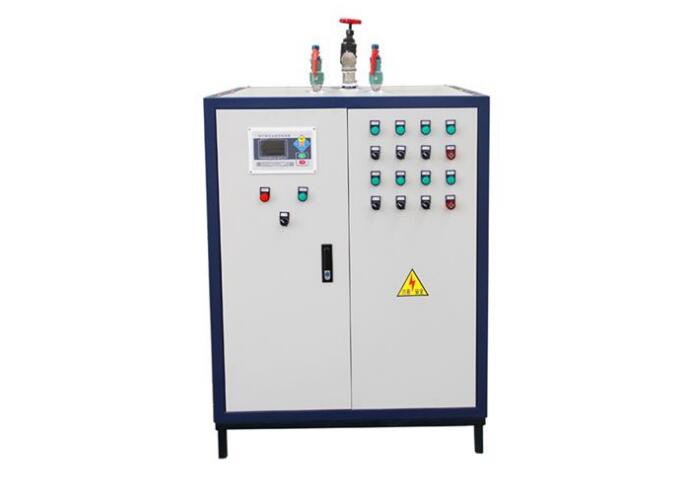

LDR Small Electric Steam Generator Los ntawm Tuam Tshoj

Hluav taws xob cua sov Fast Chav Generator
Qauv: LDR (Electric cua sov) Series
Chav Muaj Peev Xwm: LDR (Electric Cua sov) 0.01-0.4T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)

Khoom Taw qhia

Product Description

1, lub cev yog lub lauj kaub plhaub hom puv ntub dej rov qab peb rov qab pyrotechnics tube qauv, nplaim taws nyob rau hauv lub loj combustion chamber micro zoo siab combustion, tiav extension, combustion tshav kub load yog tsawg, teeb meem tshuaj NOx emissions.

2, corrugated rauv thiab threaded pa luam yeeb raj qauv, uas yog, los txhim kho lub zog, tab sis kuj ua tau raws li cov kev xav tau ntawm txhua feem rhuab expansion.

3. Lub pob tw yog siv rau vuam ntawm lub ntsiab welds, thiab tsis muaj kev puas tsuaj los ntawm X-ray thiab ultrasonic.

4, boiler dej ntim thiab roj qhov chaw yog loj, muaj zog muaj peev xwm hloov mus rau load.

Tsim nyog tsim ntawm lub lauj kaub cov cuab yeej, kom ntseeg tau tias cov dej chav dej tsawg dua 4%, kom tau raws li cov neeg siv' cov kev xav tau siab dua rau chav dej zoo.

5, kev siv cov khoom siv hluav taws xob tshiab, lub teeb yuag, tsis tshua muaj cua sov, kev txuag hluav taws xob zoo.

Nta

LDR Ntsug Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob tuaj yeem tsim hluav taws xob sai li 3-5 feeb, thiab nws muaj cov yeeb nkab ntsug. Nws tsuas yog yuav tsum tau txuas nrog lub qhov dej thiab lub zog hluav taws xob los ua kom muaj zog, thiab yog qhov ceev hauv installation, yooj yim hauv kev saib xyuas. Nws muaj ntau yam kev siv thiab tuaj yeem siv rau hauv kev tsim cov khoom noj, xws li kub-kub sterilization ntawm edible fungi, soy khoom, khoom noj siv mis, thiab lwm yam, thiab kuj yuav siv tau rau cua sov, tsev cog khoom cog kev lag luam, yug me nyuam. kev lag luam, cua sov sab hauv tsev, thiab lwm yam.Ithas qhov zoo xws li tsis tshua muaj suab nrov, los tiv thaiv ziab ziab, ntse qhov kub thiab txias, kev ua haujlwm siab thiab txuag hluav taws xob.

Qhov zoo

LDR Vertical Electric Heating Steam Boiler muaj kev ua haujlwm siab, cov qauv tsim, kev teeb tsa yooj yim, kev ua haujlwm yooj yim, thiab kev hloov pauv tau zoo, thiab tuaj yeem siv rau hauv qhov chaw uas siv los ua qhov cua sov, nrog cov khoom siv, ua cov thev naus laus zis thiab kev ua tau zoo. Nws paub txog kev tswj tsis siv neeg ntse, kev saib xyuas yooj yim, thiab tuaj yeem tso tseg tsis tu ncua.Nws muaj kev tswj hwm qib siab, uas txuag koj cov nqi peev thaum ua haujlwm ruaj khov.Nws yog dav siv hauv tshuaj, tshuaj, khoom noj, pub, textile, tsev ntaub , tsev so, cua sov thiab lwm yam kev lag luam los muab cov khoom siv hluav taws xob zoo thiab txhim khu kev qha rau kev tsim khoom thiab cov neeg nyob hauv' life.Nws txoj kev nyab xeeb valve yog qhov rhiab heev kom ntseeg tau tias kev nyab xeeb ntawm boiler ua haujlwm. Tsis tas li ntawd, nws yuav tsum tsis muaj kev xav tau tshwj xeeb ntawm kev tswj xyuas lossis tu.

Technical Parameter

Qauv: LDR (Electric cua sov) Series

Chav Muaj Peev Xwm: LDR (Electric Cua sov) 0.01-0.4T / H

Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag (kw)	Thermal efficiency (％)	Chav kub (℃)	Dimension (m)	Qhov hnyav (t)
LDR 0.008-0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR 0.012-0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR 0.016-0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR 0.024-0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR 0.032-0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR 0.065-0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR 0.075-0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR 0.1-0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR 0.13-0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR 0.2-0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR0.24-0.4/0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR0.28-0.4/0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302
