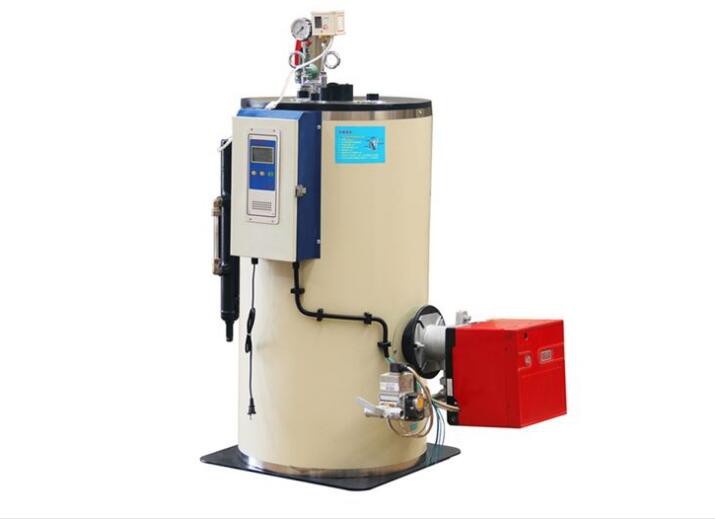

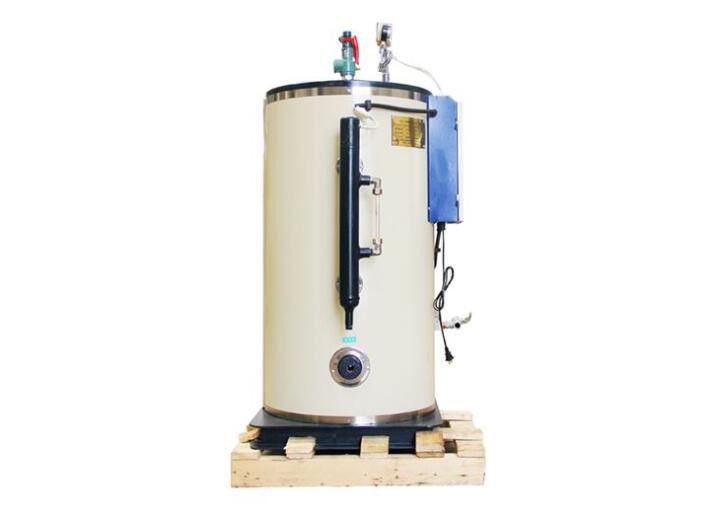

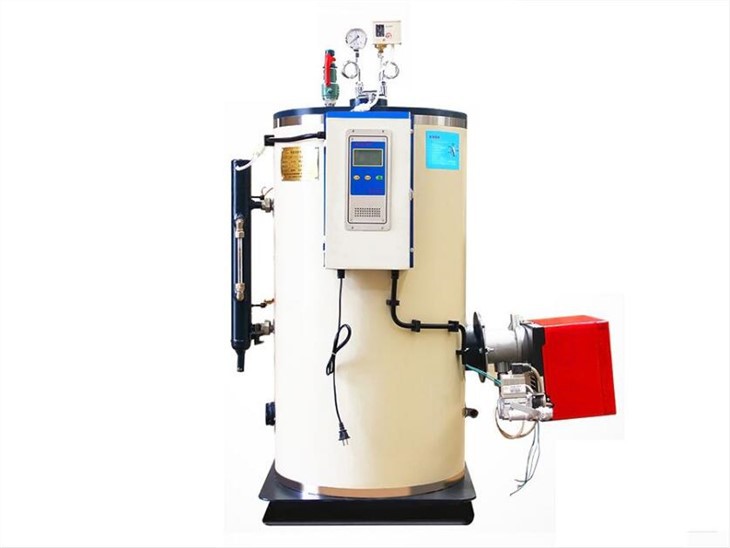

Industrial Vertical Ob Chav Gas Hluav Taws Xob Diesel Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob

Roj/Gas Fast Steam Generator
Qauv: LSS (Oil / Gas) Series
Chav Muaj Peev Xwm: LSS (Oil / Gas) 0.05-0.5T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)
Roj: Natural gas, liquefied petroleum gas
Daim ntaub ntawv: Khaub ncaws ntxhua khaub ncaws thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description:

1.Semi-gasification combustion qauv, tsim nyog huab cua faib nyob rau hauv lub cub tawg, ua kom tiav combustion, siab thermal efficiency, tsis pom pa taws emissions.

2. lub configuration ntawm microcomputer LCD tswj system, ib tug khawm ua hauj lwm, cov dej, hluav taws xob installation nyob rau hauv qhov chaw, nias lub qhib qhov tseem ceeb, lub generator yuav nkag mus rau lub tsis siv neeg lub xeev ua hauj lwm, muaj kev nyab xeeb thiab yooj yim, txo cov neeg ua hauj lwm siv zog.

3. cov khoom yog nruab nrog lub siab tswj, kev ruaj ntseg valve, nrog overpressure, tsis tshua muaj dej theem thiab lwm yam kev tiv thaiv ntau yam, los xyuas kom meej cov khoom zoo thiab kev nyab xeeb.

4. chav tsim khoom thiab chav saturation los ntawm kev sim nruj, tau mus txog cov qauv kev lag luam.

5. kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig roj, yog cov khoom siv txuas ntxiv dua tshiab, cov nqi ua haujlwm yog 1/6 ntawm cov hluav taws xob boiler, yog 1/3 ntawm cov roj thiab roj boiler.

Product Details:

Tech Parameter:

LSS Roj/Gas Chav Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Thermal efficiency (％)	Chav kub (℃)	Dimension (m)	Qhov hnyav (t)
LSS0.05-0.4/0.7-Y(Q)	50	0.4/0.7	≥93	151/171	0.62×0.62×0.83	0.206
LSS0.1-0.4/0.7-Y(Q)	100	0.4/0.7	≥93	151/171	0.69×0.69×0.968	0.252
LSS0.15-0.4/0.7-Y(Q)	150	0.4/0.7	≥93	151/171	0.75×0.75×1.13	0.303
LSS0.2-0.4/0.7-Y(Q)	200	0.4/0.7	≥93	151/171	0.8×0.8×1.286	0.35
LSS0.3-0.4/0.7-Y(Q)	300	0.4/0.7	≥93	151/171	0.8×0.8×1.525	0.55
LSS0.4-0.4/0.7-Y(Q)	400	0.4/0.7	≥93	151/171	0.84×0.84×1.775	0.7
