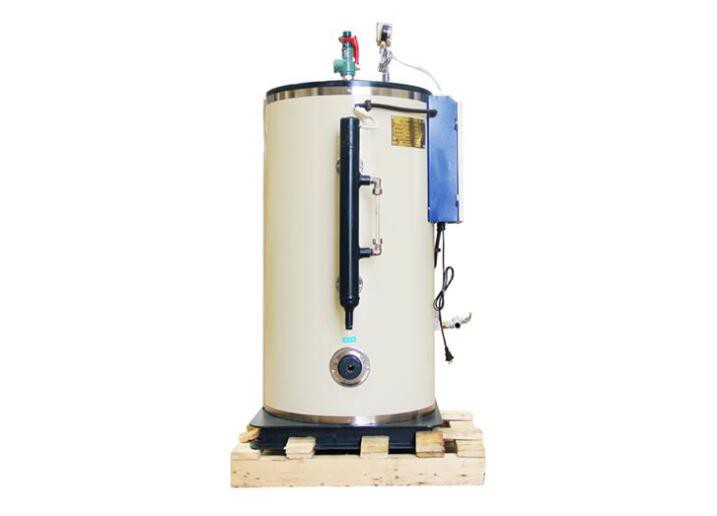

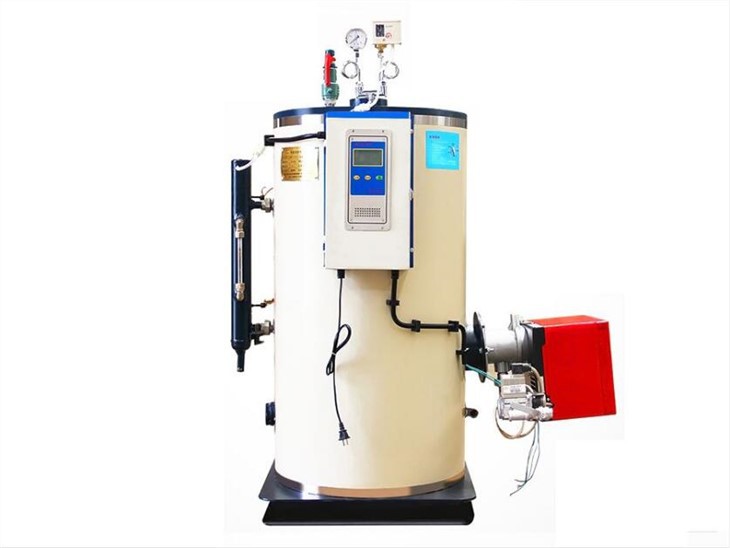

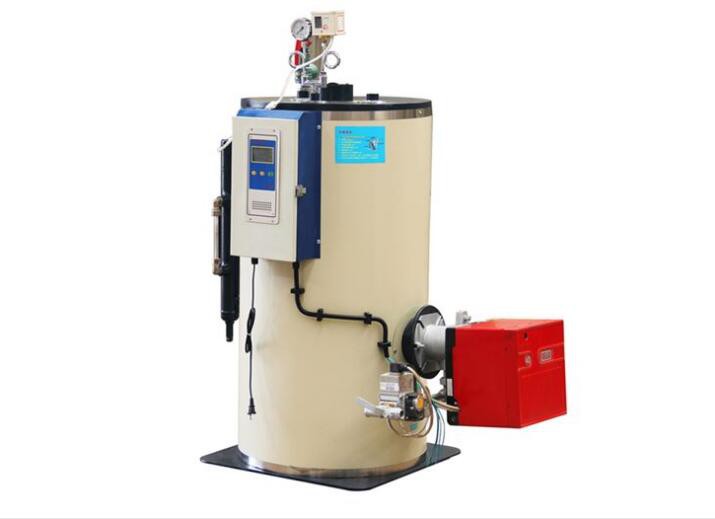

50 kg / h Lub Teeb Roj Kub Chav Generator Kev Muag Khoom

Roj/Gas Fast Steam Generator
Qauv: LSS (Oil / Gas) Series
Chav Muaj Peev Xwm: LSS (Oil / Gas) 0.05-0.5T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)
Roj: Natural gas, liquefied petroleum gas
Daim ntaub ntawv: Khaub ncaws ntxhua khaub ncaws thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description:

Kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig, tsis yog lub boiler me me, lub zog txuag hluav taws xob tuaj yeem ncav cuag 30-50%.

Yeem: pov tseg thaum tshav kub kub rov qab system, thermal efficiency cia tank, dej softener.

Kev siv dej softener tuaj yeem tiv thaiv lub tshuab hluav taws xob, yog li txhim kho lub neej kev pab cuam ntawm lub tshuab!

Vertical steam engine nta: Standard nta thiab installation

Product Details:

Tech Parameter:

LSS Roj/Gas Chav Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Thermal efficiency (％)	Chav kub (℃)	Dimension (m)	Qhov hnyav (t)
LSS0.05-0.4/0.7-Y(Q)	50	0.4/0.7	≥93	151/171	0.62×0.62×0.83	0.206
LSS0.1-0.4/0.7-Y(Q)	100	0.4/0.7	≥93	151/171	0.69×0.69×0.968	0.252
LSS0.15-0.4/0.7-Y(Q)	150	0.4/0.7	≥93	151/171	0.75×0.75×1.13	0.303
LSS0.2-0.4/0.7-Y(Q)	200	0.4/0.7	≥93	151/171	0.8×0.8×1.286	0.35
LSS0.3-0.4/0.7-Y(Q)	300	0.4/0.7	≥93	151/171	0.8×0.8×1.525	0.55
LSS0.4-0.4/0.7-Y(Q)	400	0.4/0.7	≥93	151/171	0.84×0.84×1.775	0.7
