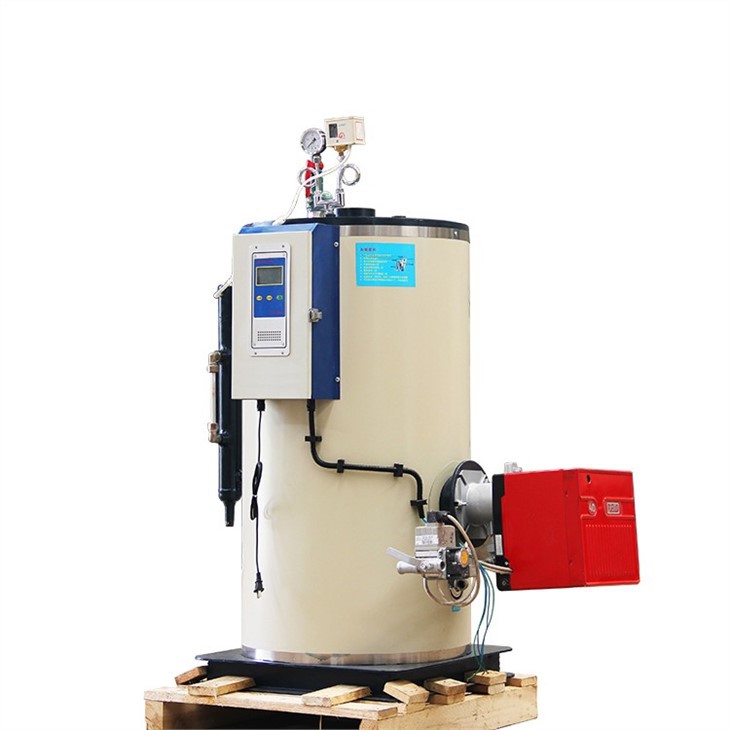

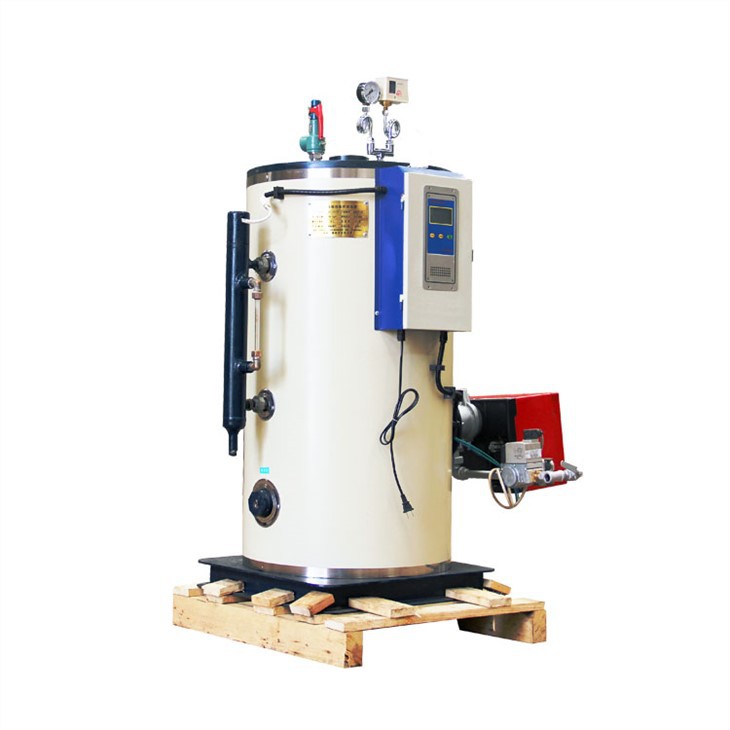

Customized Chaw tsim tshuaj paus Nqe Mini Roj Chav Turbine Generator

Roj/Gas Fast Steam Generator
Qauv: LSS (Oil / Gas) Series
Chav Muaj Peev Xwm: LSS (Oil/Gas) 0.05 - 0.5T/H
Chav Siab: {{0}}.4/0.7Mpa (yeem raws li qhov xav tau)
Roj: Natural gas, liquefied petroleum gas
Daim ntaub ntawv: Khaub ncaws ntxhua khaub ncaws thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description:

1.Boiler dej ntim yog me me, nrog ceev pib ntawm lub qhov cub txias, uas tuaj yeem paub qhov kub thiab txias siab thaum lub sijhawm luv luv.

2.Ua - nyob rau hauv ntau chav thiab dej sib cais tshuab, zoo chav .
3.Nrog ntau cov saw tiv thaiv rau qib dej, chav siab, overheating, uas yog kev nyab xeeb thiab txhim khu kev qha

4.Fully skid - mounted, centralized chav mov, muaj peev xwm paub ib leeg ywj siab los yog ntau chav nyob hauv centralized tswj, zam ntawm installation thiab tsim

Khoom Paub meej:

Tech Parameter:

LSS Roj/Gas Chav Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Thermal efficiency (％)	Steam temperature（ degree ）	Dimension (m)	Qhov hnyav (t)
LSS{{0}}.05 - 0.4/0.7 - Y(Q)	50	0.4/0.7	≥93	151/171	0.62×0.62×0.83	0.206
LSS{{0}}.1 - 0.4/0.7 - Y(Q)	100	0.4/0.7	≥93	151/171	0.69×0.69×0.968	0.252
LSS{{0}}.15 - 0.4/0.7 - Y(Q)	150	0.4/0.7	≥93	151/171	0.75×0.75×1.13	0.303
LSS{{0}}.2 - 0.4/0.7 - Y(Q)	200	0.4/0.7	≥93	151/171	0.8×0.8×1.286	0.35
LSS{{0}}.3 - 0.4/0.7 - Y(Q)	300	0.4/0.7	≥93	151/171	0.8×0.8×1.525	0.55
LSS{{0}}.4 - 0.4/0.7 - Y(Q)	400	0.4/0.7	≥93	151/171	0.84×0.84×1.775	0.7
