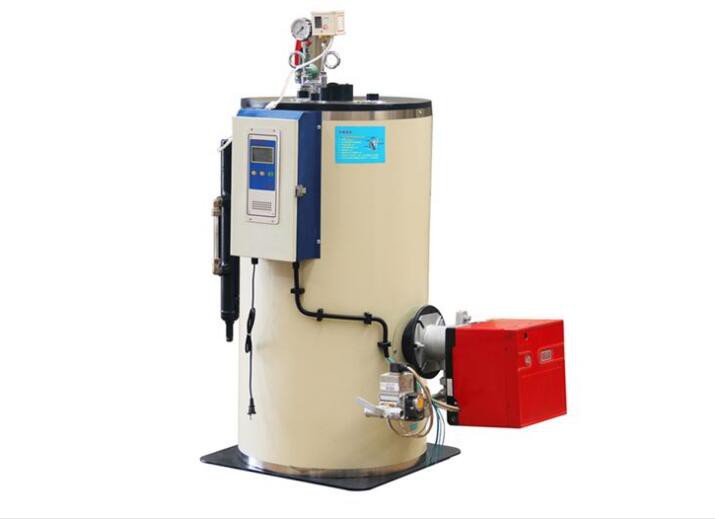

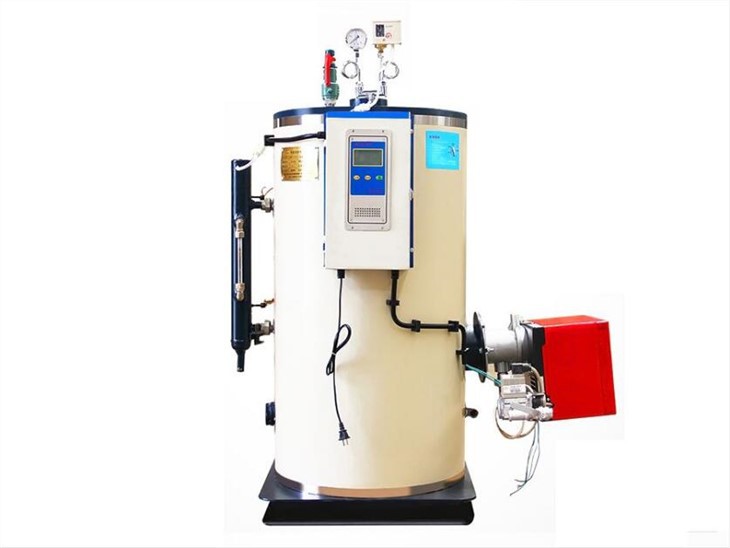

100 300 500 Kg Chav Tso Tawm 7 Bar Vertical Diesel Hluav Taws Xob Chav Boiler Nqe

Roj/Gas Fast Steam Generator
Qauv: LSS (Oil / Gas) Series
Chav Muaj Peev Xwm: LSS (Oil / Gas) 0.05-0.5T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)
Roj: Natural gas, liquefied petroleum gas
Daim ntaub ntawv: Khaub ncaws Ntxuav Thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description:

LSS hom ntsug tshuab hluav taws xob tsis siv neeg lub tshuab hluav taws xob tsis muaj kev tshuaj xyuas muaj cov cuab yeej tswj tau yooj yim thiab raug, kev ua haujlwm siab thermal, lub sij hawm ua ntej luv luv, thiab siv cov qauv arc-zoo li lub raj los ua kom cov cua sov thiab txias sib hloov thiab ncav cuag qhov siab ntawm qhov siab dua. Lub zog siab tuaj yeem ncav cuag 0.4mpa hauv 5-8 feeb tom qab pib. Nws yog tswj los ntawm ib qho tseem ceeb pib khawm, thiab mus txog 4 lub sij hawm tuaj yeem teem caij kom pib thiab khiav. Cov cuab yeej tau nruab nrog ntau yam kev tiv thaiv kev ntsuas xws li tsis siv neeg dej puv, tswj siab, tiv thaiv dej tsis txaus thiab lub tswb, tsis siv neeg kaw ntawm cov dej tsis tshua muaj siab, tiv thaiv overpressure, thiab overpressure kev nyab xeeb valve.

Khoom Paub meej:

Tech Parameter:

LSS Roj/Gas Chav Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Thermal efficiency (％)	Chav ntsuas kub (℃)	Dimension (m)	Qhov hnyav (t)
LSS0.05-0.4/0.7-Y(Q)	50	0.4/0.7	≥93	151/171	0.62×0.62×0.83	0.206
LSS0.1-0.4/0.7-Y(Q)	100	0.4/0.7	≥93	151/171	0.69×0.69×0.968	0.252
LSS0.15-0.4/0.7-Y(Q)	150	0.4/0.7	≥93	151/171	0.75×0.75×1.13	0.303
LSS0.2-0.4/0.7-Y(Q)	200	0.4/0.7	≥93	151/171	0.8×0.8×1.286	0.35
LSS0.3-0.4/0.7-Y(Q)	300	0.4/0.7	≥93	151/171	0.8×0.8×1.525	0.55
LSS0.4-0.4/0.7-Y(Q)	400	0.4/0.7	≥93	151/171	0.84×0.84×1.775	0.7
