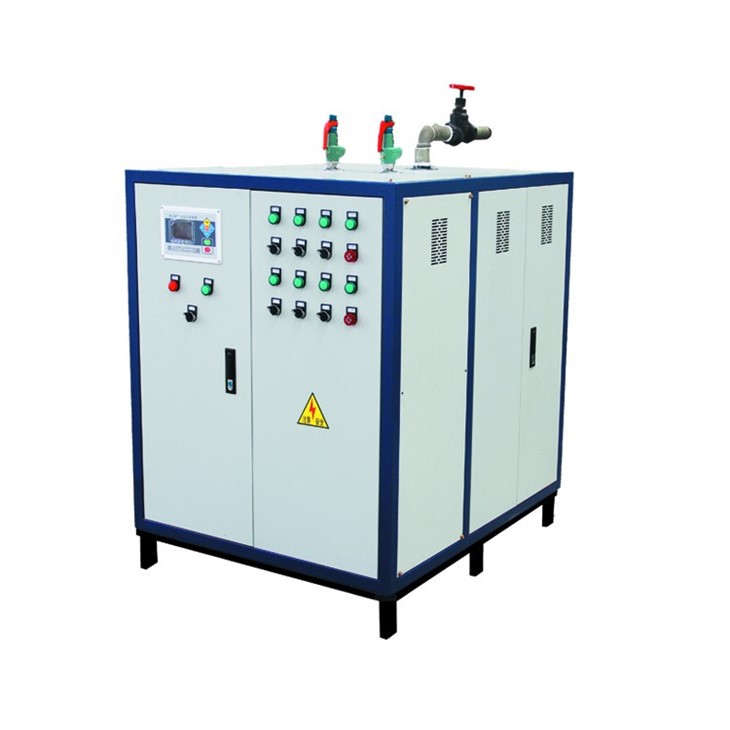

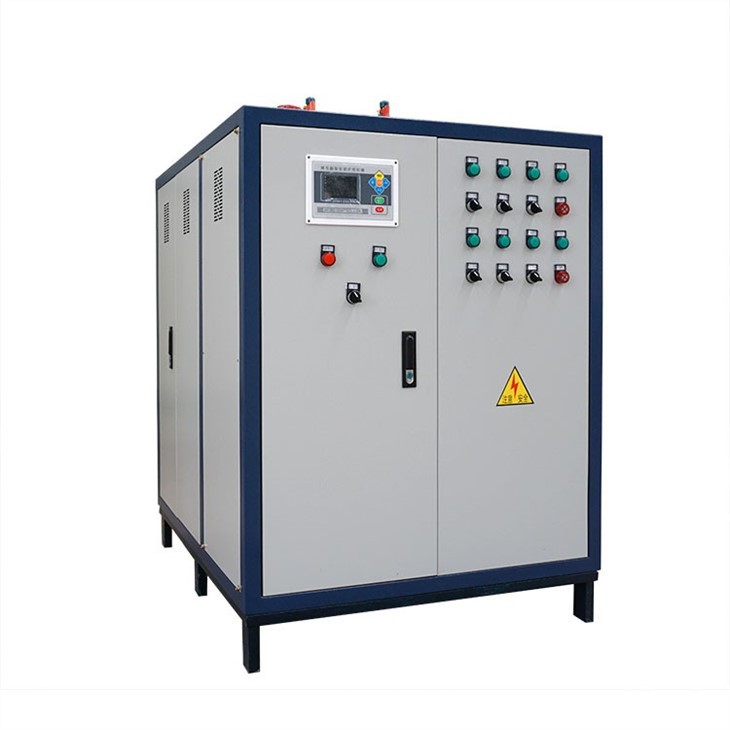

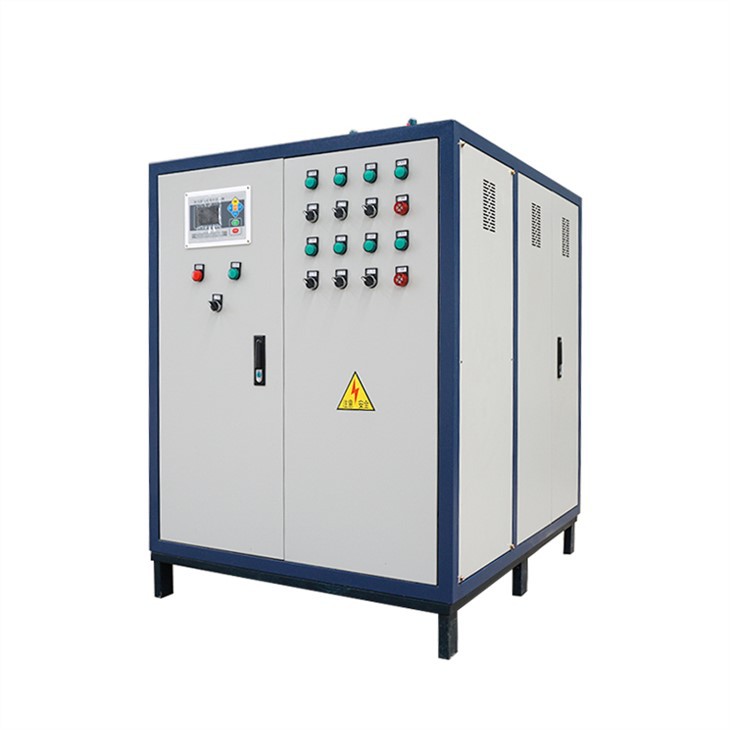

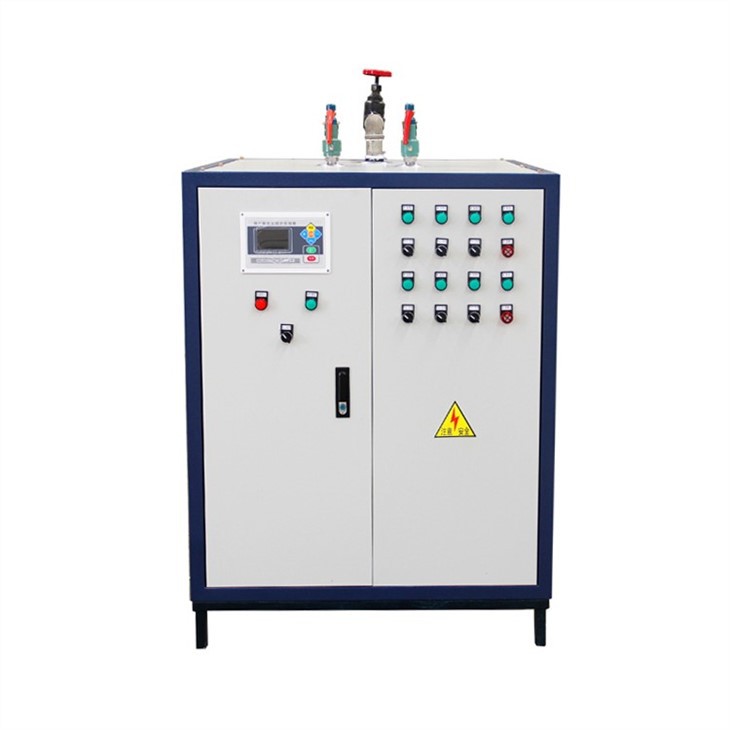

Nws Pib Dej Pub Loj Chav Dej Hluav Taws Xob Hluav Taws Xob Rhaub 60kw Rau 96kw Loj Boiler

Product Description

LDR-Series precision chav tshuab hluav taws xob yog lub cuab yeej tshwj xeeb kom ua tiav qhov tseeb ntawm chav huv. Chav tsev yog ua raws li kev tswj cov kua ua kua rau lub evaporator qhov twg cov kua tam sim ntawd evaporates. Cov thev naus laus zis ua rau qhov tseeb tiam ntawm me me ntws ntawm chav. Kev tswj qhov kub thiab txias tau tso cai rau kev tswj hwm ntawm superheating ntawm chav LDR Series chav generators yog compact, nyob ntsiag to thiab tag nrho cov tsis siv neeg units tsim ib tug txaus txaus ntawm chav. LDR-Series ntxuav lub tshuab hluav taws xob yog cov cuab yeej zoo rau ob qho tib si rau cov txheej txheem kev lag luam me thiab ua cov kev pabcuam tsoos tsho hauv peb lub neej.

Daim duab

Technical Parameter

Qauv	Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag （kw）	(％)		Dimension (m)	Qhov hnyav (t)
LDR0.008-0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR 0.012-0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR 0.016-0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR 0.024-0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR0.032-0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR 0.065-0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR 0.075-0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR 0.1-0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR 0.13-0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR 0.2-0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR0.24-0.4/0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR0.28-0.4/0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog sai sai (3-5 feeb) tom qab boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov txheej txheem phab ntsa membrane, ua rau thaj tsam nqus cua sov thiab txo qhov kub poob, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. High-end tsis siv neeg tswj qhov system

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) The whole equipment is manufactured according to the standard of large steam boiler

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, qib dej tsis siv neeg tswj, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Daim ntawv pov thawj
