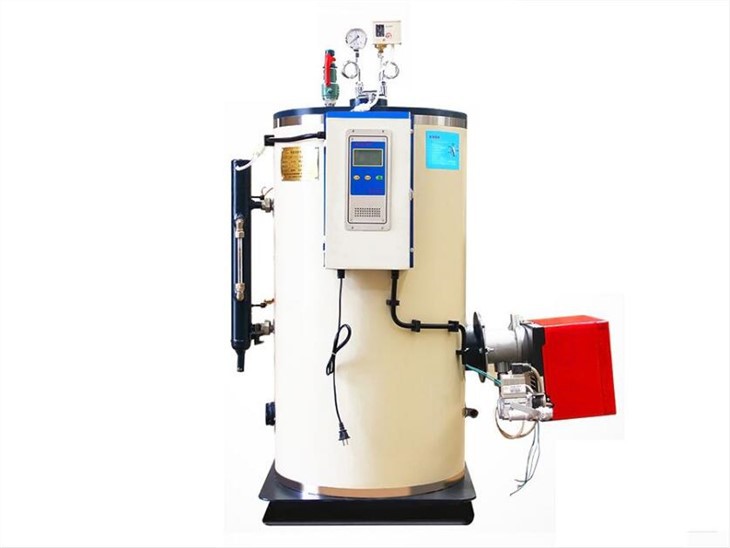

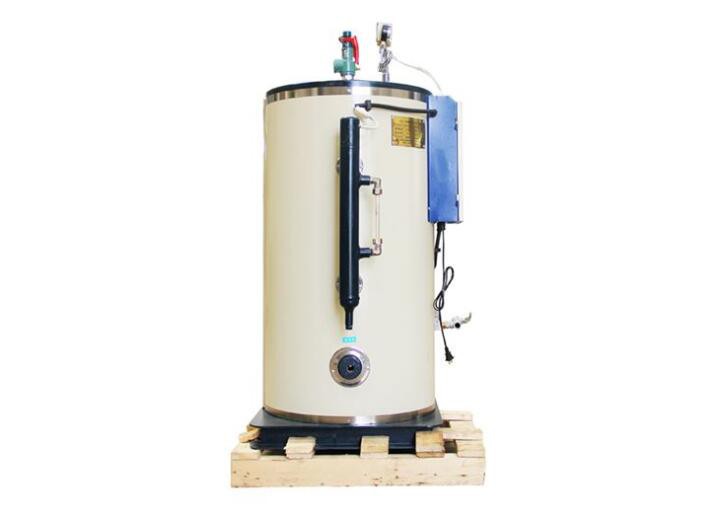

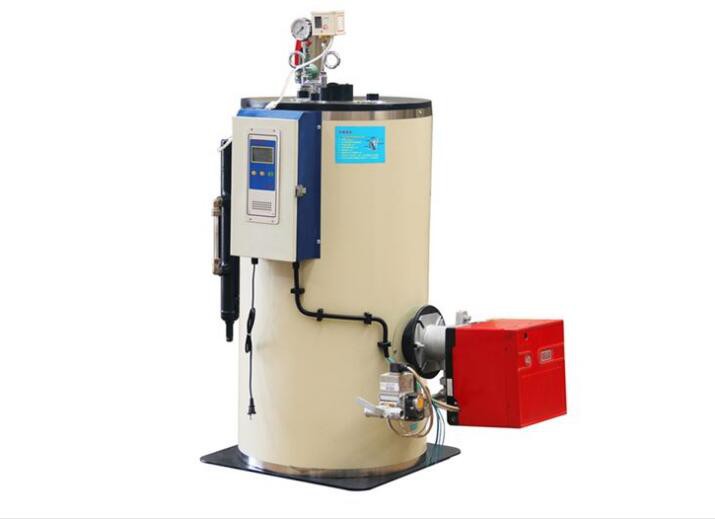

100kg Stainless Hlau Roj Chav Generator Rau Sauna

Roj/Gas Fast Steam Generator
Qauv: LSS (Oil / Gas) Series
Chav Muaj Peev Xwm: LSS (Oil / Gas) 0.05-0.5T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)
Roj: Natural gas, liquefied petroleum gas
Daim ntaub ntawv: Khaub ncaws ntxhua khaub ncaws thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description:

1 Boiler dej muaj peev xwm tsawg dua, chav ntau lawm yog ceev, kom tau raws li cov neeg siv khoom xav tau;

2 nyob rau sab sauv ntawm lub boiler loj muaj peev xwm annular chav chamber thiab boiler dej sib cais ntsuas, kom ntseeg tau tias high-zoo chav nyob rau txhua lub sij hawm;

3 Lub tshuab ua kom sov lub cev ua rau cov khoom siv tiv thaiv dej tsawg heev, txhua lub sijhawm txhawm rau txheeb xyuas cov dej hloov pauv hauv lub tshuab ua kom sov lub cev, zam lub cev qhuav ntawm lub cub tawg, kev nyab xeeb kev nyab xeeb;

Nruab nrog lub siab zoo kev nyab xeeb valve, nres valve, kua theem electrode (Nyiv Omron) lub ntsuas siab thiab lub siab tswj thiab lwm yam khoom siv kev nyab xeeb, kom ntseeg tau tias kev ua haujlwm ruaj khov ntawm lub boiler;

5 Nruab nrog cov ntsuas dej siab zoo, cov dej boiler yog qhov tseeb thiab txheeb xyuas tau;

Tus Tsov tus tw flue tuaj yeem nruab nrog condenser kom paub cov khib nyiab rov qab thiab txhim kho boiler efficiency.

Ib tug tshwj xeeb tsim spoiler yog ntsia rau hauv cov pa luam yeeb raj kom ntxiv dag zog rau convection tshav kub pauv thiab txhim kho thermal efficiency;

8 ntsug qauv, compact thiab zoo nkauj, me me hneev taw, elegant zoo, ci xim;

9. Xaiv cov kev ua tau zoo PLC thiab 5.7" kov npo tswj qhov system, muaj peev xwm tiv thaiv kev cuam tshuam, kev saib xyuas yooj yim, kev nyab xeeb thiab txhim khu kev qha, ua kom lub boiler nyob rau hauv qhov chaw tsis zoo, kev ua haujlwm ntev ntev;

Product Details:

Tech Parameter:

LSS Roj/Gas Chav Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Thermal efficiency (％)	Chav kub (℃)	Dimension (m)	Qhov hnyav (t)
LSS0.05-0.4/0.7-Y(Q)	50	0.4/0.7	≥93	151/171	0.62×0.62×0.83	0.206
LSS0.1-0.4/0.7-Y(Q)	100	0.4/0.7	≥93	151/171	0.69×0.69×0.968	0.252
LSS0.15-0.4/0.7-Y(Q)	150	0.4/0.7	≥93	151/171	0.75×0.75×1.13	0.303
LSS0.2-0.4/0.7-Y(Q)	200	0.4/0.7	≥93	151/171	0.8×0.8×1.286	0.35
LSS0.3-0.4/0.7-Y(Q)	300	0.4/0.7	≥93	151/171	0.8×0.8×1.525	0.55
LSS0.4-0.4/0.7-Y(Q)	400	0.4/0.7	≥93	151/171	0.84×0.84×1.775	0.7
