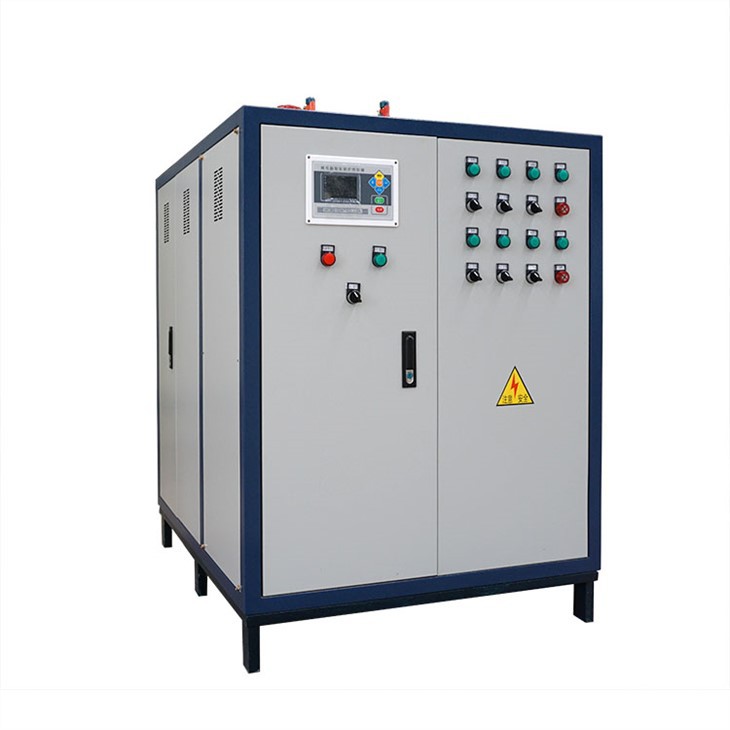

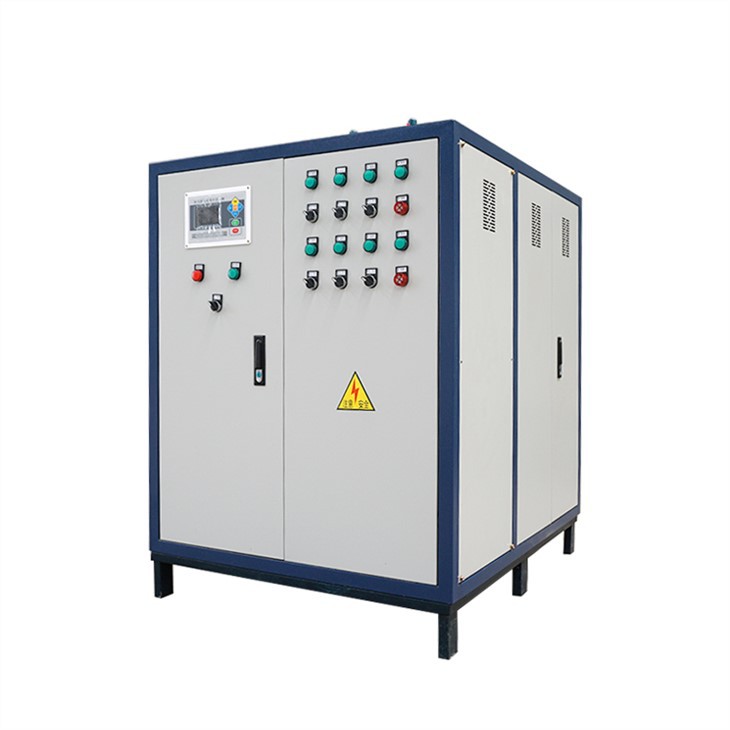

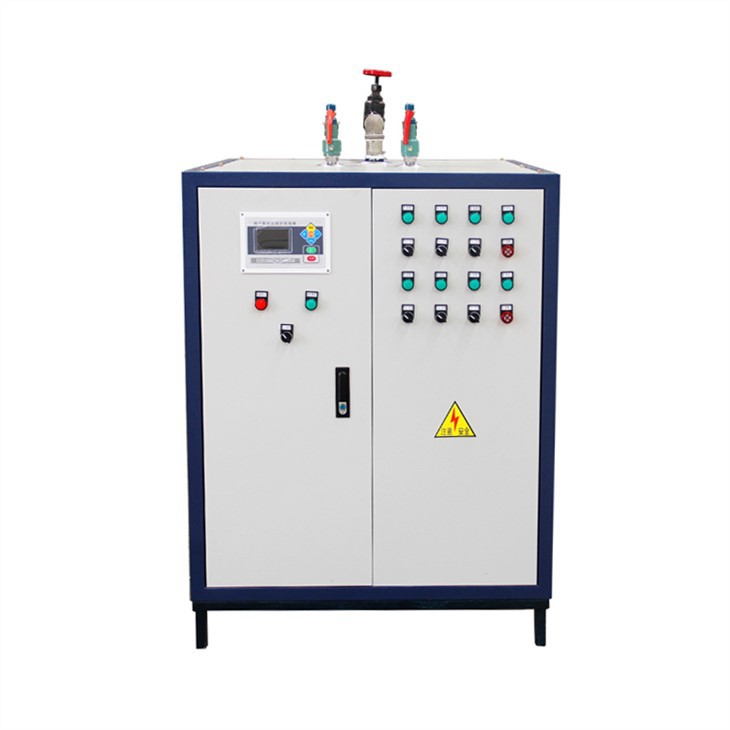

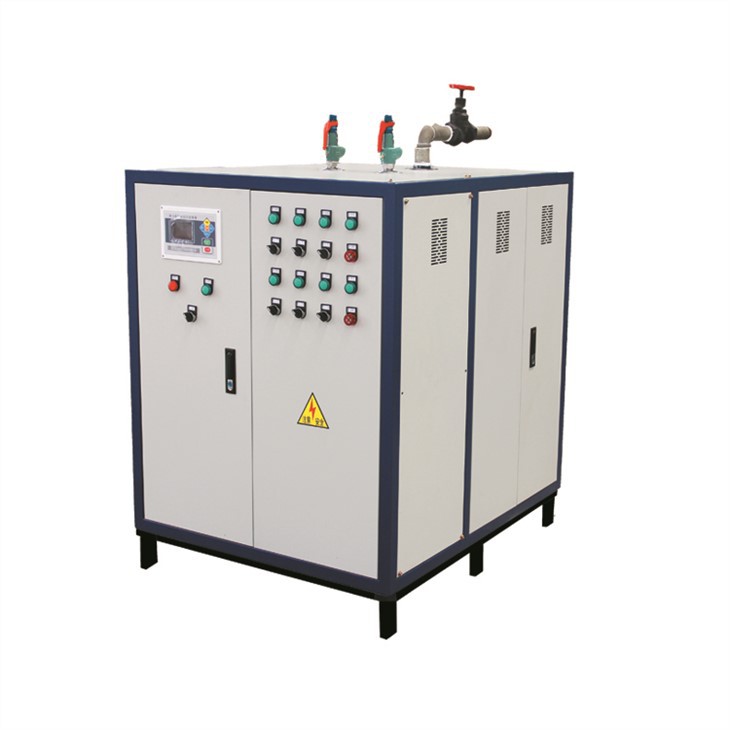

50KG / hr Roj Diesel Gas Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob Rau Cov Fermentor Kom Sterilized

Hluav taws xob cua sov ceev Steam Generator
Qauv: LDR (Electric cua sov) Series
Chav Muaj Peev Xwm: LDR (Electric Heating) 0.01 - 0.4T/H
Chav Siab: {{0}}.4/0.7Mpa (yeem raws li qhov xav tau)

Khoom Taw qhia

Product Description

1.Small hluav taws xob chav boilers nrog compact loj, tsis siv neeg dej noj twj tso kua mis nyob rau hauv, fuly tsis siv neeg dej theem thiab siab tswj, yuav ua hauj lwm tas mus li.

2.Boiler dej muaj peev xwm tsawg dua 30 litres, tsis txhob cuam tshuam cov txheej txheem kev pom zoo ntawm kev ntsuam xyuas txhua xyoo.

3.Steam tso zis li qub tuaj yeem txuas ob lub raj nyuaj thiab kub resistant chav hose, saj zawg zog, ua kom tag nrho ntawm qhov chaw.

4.Smart loj, yooj yim txav, txhim kho thiab siv.

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag （kw）	Thermal efficiency (％)	Steam temperature（ degree ）	Dimension (m)	Qhov hnyav (t)
LDR0.008 - 0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR0.012 - 0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR0.016 - 0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR0.024 - 0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR0.032 - 0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR0.065 - 0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR0.075 - 0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR0.1 - 0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR0.13 - 0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR0.2 - 0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR{{0}}.24 - 0.4/0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR{{0}}.28 - 0.4/0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog tsim sai sai (3 - 5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov txheej txheem phab ntsa membrane, nce qhov chaw nqus cua sov thiab txo cov cua sov, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. Siab - kawg tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, qib dej tsis siv neeg tswj, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Daim ntawv pov thawj

Cim npe nrov: 50kg/hr roj diesel roj hluav taws xob tswj chav generator rau fermentor kom tsis muaj menyuam, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, Hoobkas, kho, nqe
