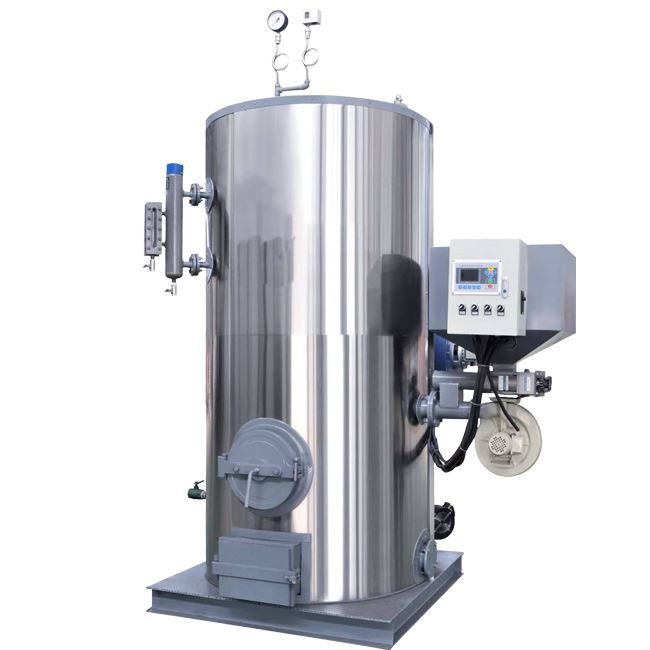

Lag luam wholesale Kub Muag Fast Cua Kab rov tav Biomass Chav Generator Rau Zaub Mov Textile

Biomass Chav Generator
Qauv: LHS (Biomass) Series
Chav Muaj Peev Xwm: LHS (Biomass) 0.3-1T / H
Chav Siab: 0.01 / 0.4Mpa (yeem raws li qhov xav tau)
Roj: Biomass Particle
Daim ntaub ntawv: Khaub ncaws Ntxuav Thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description

1. Cov dej ntim tsawg dua 30L, uas yog nyob rau ntawm lub tshuab hluav taws xob kuaj tsis pub dawb.

2. Lub cub tawg yog nruab nrog cov khoom noj khoom haus thib ob rau kev sib xyaw ua ke ntawm cov oxidation, nrog rau qhov kub thiab txias ntawm qhov cub thiab txaus combustion.

3. Kev ua haujlwm ntse nrog ib tus yuam sij, puv puv tsis siv neeg pub, ignition, combustion, dej ntxiv, thiab lwm yam.

4. Loj-muaj peev xwm cia silo, ib zaug ntim, tuaj yeem hlawv tsis tu ncua rau 4-8 teev.

5. Configure ntau yam kev tiv thaiv kev ntsuas xws li kev tswj lub siab, kev ruaj ntseg valve, overpressure, dej qis thiab tiv thaiv overheat.

6. Cov dej kub ib txwm nkag mus rau hauv lub cub tawg ntawm 20 ℃ los ntawm cov khoom siv hluav taws xob pov tseg, thiab cov dej kub tau nce mus txog 90 ℃, yog li txhim kho thermal efficiency.

7. Loj-muaj peev xwm flue gas reflux chamber, thiaj li hais tias cov roj flue yuav tsum tau hais thiab dedusted ib zaug nyob rau hauv lub reflux.
chamber, thiab cov pa taws ua pa tsis muaj pa taws thiab tsis muaj plua plav. Chav boilers nyob rau hauv

8. 8 tons tuaj yeem hloov tau los ntawm lub tshuab hluav taws xob no hauv series.

9. Tsuas yog txuas cov khoom siv hluav taws xob, cov kav dej, cov kav dej, cov kav dej, cov kav dej phwj thiab cov chimney kom debug thiab siv,
txuag kev txhawj xeeb, teeb meem thiab nyiaj txiag.

Daim duab

Khoom Zoo

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai sai.

2. High thermal efficiency

(1) ntsug dej yeeb nkab membrane phab ntsa qauv, nce tshav kub nqus cheeb tsam, txo tshav kub poob, txuag roj.

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency.

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions.

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj.

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, dej qib tswj tsis siv neeg, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Tech Parameter

LHS Biomass Chav Generator

Qauv	kev muaj peev xwm (t / h)	Rated siab (MPa)	Chav ntsuas kub (℃)	Thermal efficiency (%)	Roj noj (kg / h)	Dimension L × W × H (cm)	Qhov hnyav (t)
LHS 0.3-0.09	0.3	0.09	110	≥93	60	160110251	1.5
LHS 0.5-0.09	0.5	0.09	110	≥93	110	170122260	1.8
LHS 0.7-0.09	0.7	0.09	110	≥93	160	190132260	2.2
LHS1-0.09	1	0.09	110	≥93	210	210152265	2.9

Peb lub tuam txhab

20200713115055ad72e467a8784fd1b2b8a9aa8fb84419

Daim ntawv pov thawj

202007071631279c97b9d8eb7a4fa5bb348412a33d2a41

FAQ

1. Q. Koj puas yog cov chaw tsim khoom?

A: Yog, peb yog cov chaw tsim khoom ntawm boiler thiab siab hlab ntsha hauv Henan, Suav.

2. Q: Koj puas muaj daim ntawv pov thawj?

A: Yog. Peb lub boiler tau txais Tuam Tshoj GB ISO daim ntawv pov thawj thiab CE daim ntawv pov thawj ntawm EU. Peb kuj tuaj yeem muab ASME, GHOST thiab lwm daim ntawv pov thawj tsim nyog yog tias koj xav tau.

3. Q: Lub sijhawm xa khoom ntawm kab rov tav biomass chav tshuab hluav taws xob?
A: 5-10 hnub ua haujlwm rau ib lub tshuab, thiab 30-40 hnub ua haujlwm rau kev txiav txim ntau thiab qhov rooj rau qhov rooj xa khoom kuj muaj.

4.Q:Dab tsi kuv yuav tsum tau muab rau kom tau txais ib nqe lus?

Koj yuav zoo dua muab cov kev txwv xws li muaj peev xwm, roj, kev ua haujlwm siab, yog li ntawd rau cov lus qhia ceev thiab meej.

5.Q: Koj puas muab kev pabcuam customized rau koj cov khoom?

Yog lawm, peb tuaj yeem kho lub boiler raws li cov roj, chav muaj peev xwm thiab chav siab xav tau los ntawm cov neeg siv khoom.
