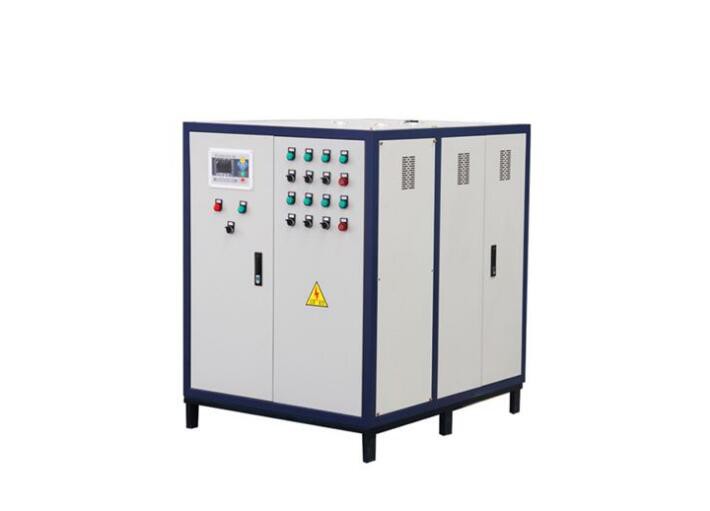

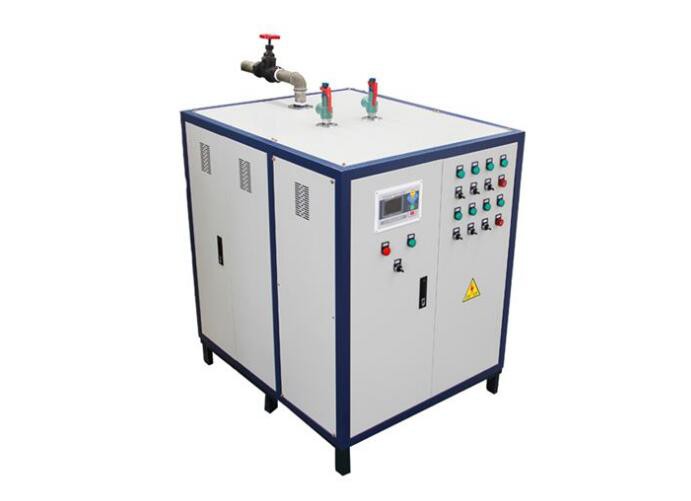

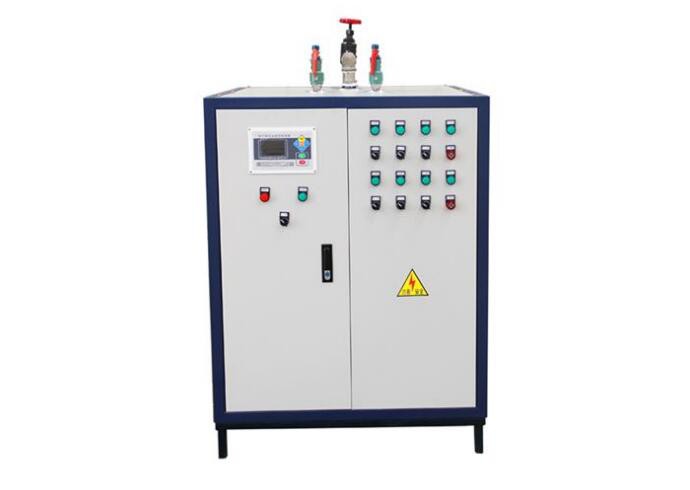

Hluav taws xob Boiler Chav Generator 220v Rau Laboratory

Hluav taws xob cua sov Fast Chav Generator
Qauv: LDR (Electric cua sov) Series
Chav Muaj Peev Xwm: LDR (Electric Cua sov) 0.01-0.4T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)

Khoom Taw qhia

Product Description

Ntau cov saw kev ruaj ntseg tiv thaiv muaj nuj nqi: cov khoom yog nruab nrog lub boiler tshuaj ntsuam xyuas los ntawm qhov kev nyab xeeb valve, tswj siab thiab lwm yam overpressure tiv thaiv, los tiv thaiv lub boiler vim lub siab dhau heev lawm tshwm sim los ntawm kev sib tsoo tawg;

Nyob rau tib lub sij hawm muaj qhov txwv tsis pub muaj kev tiv thaiv dej, nyob rau hauv cov ntaub ntawv ntawm cov dej nres lub boiler yuav cia li tsis ua hauj lwm, los tiv thaiv lub boiler qhuav burning tshwm sim los ntawm hluav taws xob cua sov caij puas los yog txawm hlawv tawm tshwm sim.

leakage protector kom muaj kev ruaj ntseg ntawm cov neeg ua haujlwm thiab cov khoom siv tau lees paub ntau dua, txawm tias muaj kev ua haujlwm tsis zoo ntawm boiler los ntawm luv luv Circuit Court, boiler leakage yuav txiav tawm Circuit Court, tiv thaiv raws sijhawm ntawm cov neeg ua haujlwm thiab cov kab tswj.

yooj yim rau nruab, yooj yim rau siv: cov khoom tau dhau los nruj debugging ua ntej tawm hauv lub Hoobkas, tus neeg siv tsuas yog yuav tsum tau txuas lub zog mov thiab dej qhov chaw, nias lub pob pib boiler tuaj yeem nkag mus rau hauv lub xeev tsis siv neeg ua haujlwm, tsis muaj lwm yam kev teeb tsa.

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag (kw)	Thermal efficiency (％)	Chav kub (℃)	Dimension (m)	Qhov hnyav (t)
LDR 0.008-0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR 0.012-0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR 0.016-0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR 0.024-0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR 0.032-0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR 0.065-0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR 0.075-0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR 0.1-0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR 0.13-0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR 0.2-0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR0.24-0.4/0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR0.28-0.4/0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov qauv phab ntsa membrane, ua rau thaj chaw nqus cua sov thiab txo cov cua sov, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, qib dej tsis siv neeg tswj, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.
