Kab Rov Tav Hom Hluav Taws Xob Cov Raj Hluav Taws Xob Muaj Roj / Chav Roj Raug Rho Tawm Haujlwm Chav Ua Hluav Taws Xob

Roj / Roj Chav Boiler
Qauv: WNS Series
Peev Xwm: 0.5T / H - 20T / H
Ua Haujlwm Siab: 0.4Mpa ~ 2.5Mpa
Roj: Nkev, LPG, LNG, CNG, Biogas, Nkev Hauv Nroog, Diesel, Roj Roj, Roj thiab Roj.

Khoom Taw qhia

Khoom Taw qhia

WNS series chav boiler yog lub zog txuag kev lag luam boiler, muaj kev nyab xeeb, muaj txiaj ntsig thiab tsis siv neeg cov khoom siv cua sov.Qhov series ntawm kab rov tav chav boiler txais yuav lub 3 hla tag nrho ntub dej rov qab tus qauv, adopts corrugated rauv taws kom zoo li chav sib txuas. Piv nrog cov txig dog dig, thaj chaw hloov pauv tshav kub yog nce thiab txhim kho yooj yim, kev lag luam yooj yim, kev ua haujlwm ruaj khov thiab kev hloov kho dav.


Cov Lus Qhia Paub Khoom

20200707162608ab45918b93b64d1ea7935ad543016aad

Tech Tsis Muaj


WNS Muaj Chav Boiler

Qauv

Nyob evaporation
peev xwm (t / h)

Nyob chav
siab (Mpa)

Chav sov

(℃)

Kev ntsuas kom sov ua tau zoo
(％)

Kev siv roj

Qhov ntev
(m)

Nyhav
(t)

Roj

(kg / teev)

Roj

(Nm³ / h)

WNS1-0.7 / 1.0-Y (Q)

1

0.7/1.0

194

≥98.36

61

73

3.2×1.9×2.2

4.9

WNS2-1.0 / 1.25-Y (Q)

2

1.0/1.25

194

≥98.36

121

145

4.2×2.3×2.5

8

WNS3-1.0 / 1.25-Y (Q)

3

1.0/1.25

194

≥98.36

182

217

4.5×2.1×2.4

9

WNS4-1.0 / 1.25-Y (Q)

4

1.0/1.25

194

≥98.36

243

289

5.0×2.3×2.6

11

WNS6-1.25 / 1.6-Y (Q)

6

1.25/1.6

194

≥98.36

367

435

5.4×2.4×2.7

18.6

WNS10-1.25 / 1.6-Y (Q)

10

1.25/1.6

194

≥98.36

601

735

6.3×2.7×3.2

20.5

WNS15-1.25 / 1.6-Y (Q)

15

1.25/1.6

194

≥98.36

906

1101

8.9×3.4×3.6

42

WNS20-1.25 / 1.6-Y (Q)

20

1.25/1.6

194

≥98.36

1211

1467

7.8×3.6×4.0

52

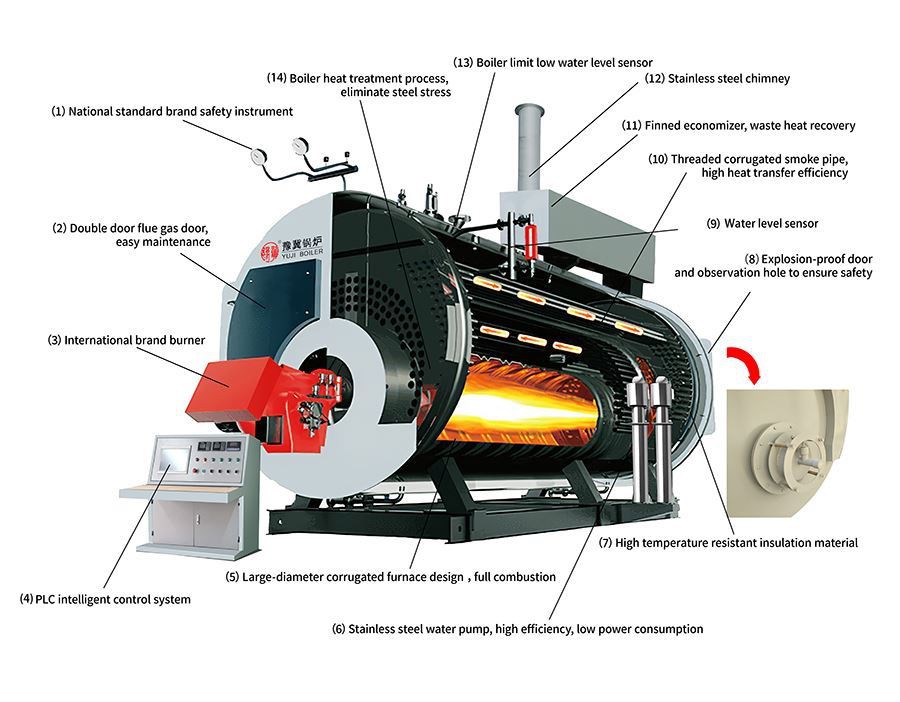

Peb Zoo

1.High efficiencyoperation, txuag roj, txo nqi
(1) Roj Hluav Taws Xob Chav Boiler txais coj los tsim loj-txoj kab uas hla ntawm lub tshuab ua kom sov
(2) Lub kauv qhov nruab nrab corrugated raj ntxiv dag zog rau kev cuam tshuam ntawm cov roj flue, siab hloov mus ua haujlwm kub
(3) Nruab nrog kev tswj hwm kev lag luam, ua kom muaj kev siv hluav taws xob tag nrho ntawm cov roj nplaim hluav taws xob, txo cov pa luam yeeb kub kom txias, lub thermal efficiency yuav nce ntxiv kom txog li 98%.
(4) Lub rhaub dej yuav tsum siv aluminium silicate board rau cov kev tiv thaiv thaum tshav kub kub, ua kom sov qis.
2.High kev ruaj ntseg, ua haujlwm tsis siv neeg
(1) Adopts PLC thawm tsis siv neeg ntse tswj lub txee thiab cov txheej txheem thaiv kev tiv thaiv, muaj kev tiv thaiv lub luag haujlwm ntawm cov dej tsis txaus, dhau ntawm kev kub siab, dhau ntawm qhov kub thiab txias, roj xau, nplaim taws, hluav taws xob, thiab kab lus tsis muaj lossis tshaj lub cev muaj zog, thiab lwm yam.
(2) Nruab nrog lub twj tawg-pov thawj, uas tuaj yeem tso lub siab tam sim ntawd thaum nws tawg hauv qhov cub tawg kom paub tseeb tias muaj kev ua haujlwm zoo.
3.Specialsafety tsim
Qhov txwv tsis pub dej tshaj tawm qib ntsuas kev nyab xeeb lub tshuab yog ua lub nruas, ncaj qha pom cov dej hauv theem ua kom sov. Raws li kev xav, yuav tsis muaj dej tsis txaus.
4.Lowoperating tus nqi
(1) Txais cov ntawv pov thawj tshiab ntawm cov thev naus laus zis, lub cev rhaub dej yog 100% tsis siv neeg welded, nrog lub siab zoo, kev pab lub neej ntev thiab tus txij nkawm qis.
(2) Lub ntiaj teb nto moo hom, kev kub siab ua kom muaj txiaj ntsig zoo, txuag roj thiab ua haujlwm qis.
5.Simpleinstallation
Boiler yog sib sau ua ke cov qauv, nrog lub sijhawm ua haujlwm tsis ntev thiab thaj chaw me me.

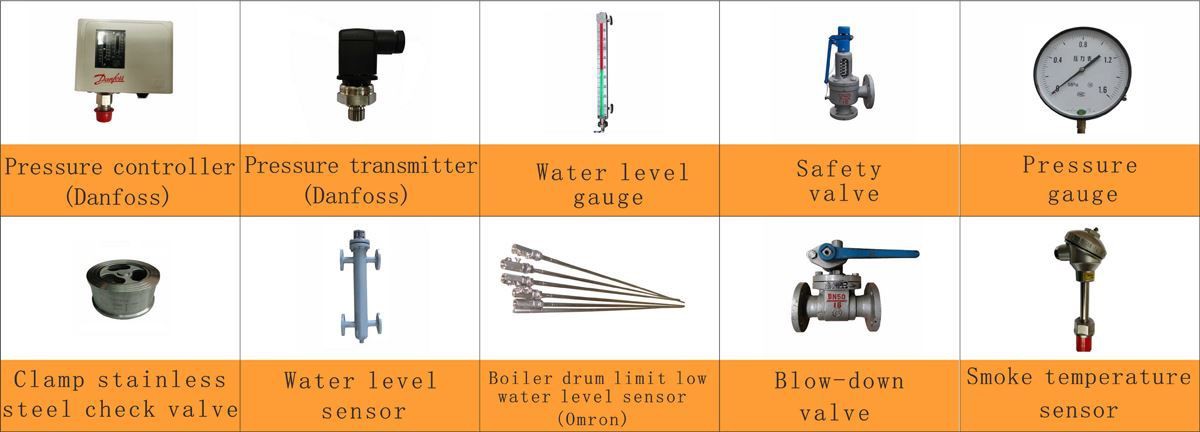

mountings

202008101705292a8685bf14af464d85b6d881b58b0de7


Peb Lub Tuam Txhab

20200713115055ad72e467a8784fd1b2b8a9aa8fb84419


Daim ntawv pov

202007071631279c97b9d8eb7a4fa5bb348412a33d2a41

Cim npe nrov: kab rov tav hom hluav taws xob raj hluav taws roj muaj roj / nkev nkev tua hluav taws wns chav boiler, Tuam Tshoj, tuam ntxhab, lub Hoobkas, lag luam, customized, nqe
