Henan Yuji Boiler Vessel Co., Ltd.

Hu tuaj rau peb: +8615090467792

Tug: admin1@yujiboiler.com

Tsev / Khoom / Roj Roj Boiler
1-10t
1-10t

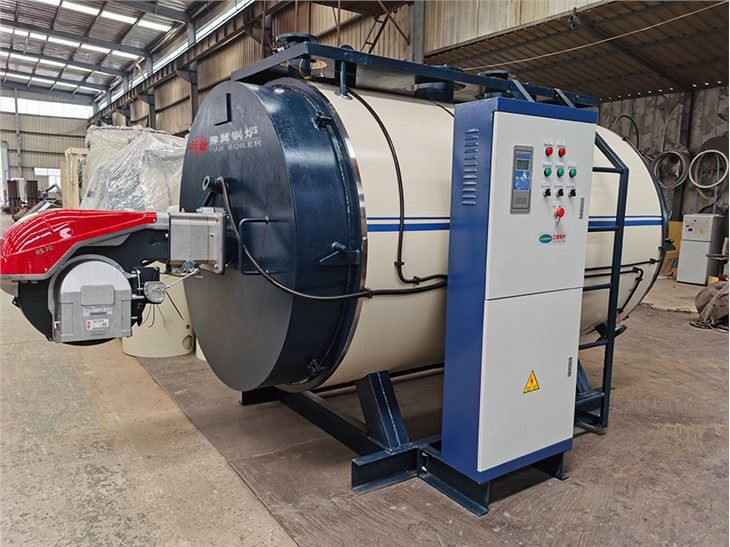

1-10t Wns Series Diesel Roj Raug Rho Tawm Haujlwm Chav Boiler

WNS Condensing Chav Boilers
Qauv: WNS Series Condensing Boilers
Peev Xwm: 0.5t / H-20t / H
Chav Siab: 0.4Mpa ~ 2.5Mpa (Xaiv tau raws li kev thov)
Roj: Nkev, LPG, LNG, CNG, Biogas, Nkev Hauv Nroog, Diesel, Roj Roj, Roj thiab Roj.

Khoom Taw qhia

Khoom Taw qhia:

Cov roj tso pa roj tso cia boiler tso cai los ntawm kev lag luam thoob ntiaj teb raws li kev txuag hluav taws xob ntau thiab txuag tau cov cuab yeej siv cua sov nrog kev ua haujlwm tsis siv neeg. Condensing roj roj tso pa chav boiler ua ke yog ua ke nrog lub zog txuag condenser, uas muaj cov yam ntxwv ntawm kev ua haujlwm siab thermal (GG gt; 98% lossis ntau dua), kev tso pa hluav taws xob tsawg tsawg (txog 65 ℃), cov qauv tsis sib haum, kev teeb tsa yooj yim, kev ua haujlwm yooj yim , kev ua haujlwm ruaj khov, thiab siv ntau yam.

Cov lus qhia tseem ceeb: Peb tuaj yeem kho lub siab ua haujlwm siab kub roj boiler raws li cov roj, muaj peev xwm thiab siab siab los ntawm cov neeg siv khoom.

Daim duab

20200707162608ab45918b93b64d1ea7935ad543016aad

Tech Tsis Muaj

WNS Muaj Chav Boiler

Qauv

Rated evaporation muaj peev xwm (t / h)

Nyob chav siab (Mpa)

Chav sov

(℃)

Kev ua haujlwm thermal (％)

Kev siv roj


Qhov Loj (m)


Ceeb thawj (t)

Roj

(kg / teev)

Roj

(Nm³ / h)

WNS1-0.7 / 1.0-Y (Q)

1

0.7/1.0

194

≥98.36

61

73

3.2×1.9×2.2

4.9

WNS2-1.0 / 1.25-Y (Q)

2

1.0/1.25

194

≥98.36

121

145

4.2×2.3×2.5

8

WNS3-1.0 / 1.25-Y (Q)

3

1.0/1.25

194

≥98.36

182

217

4.5×2.1×2.4

9

WNS4-1.0 / 1.25-Y (Q)

4

1.0/1.25

194

≥98.36

243

289

5.0×2.3×2.6

11

WNS6-1.25 / 1.6-Y (Q)

6

1.25/1.6

194

≥98.36

367

435

5.4×2.4×2.7

18.6

WNS10-1.25 / 1.6-Y (Q)

10

1.25/1.6

194

≥98.36

601

735

6.3×2.7×3.2

20.5

WNS15-1.25 / 1.6-Y (Q)

15

1.25/1.6

194

≥98.36

906

1101

8.9×3.4×3.6

42

WNS20-1.25 / 1.6-Y (Q)

20

1.25/1.6

194

≥98.36

1211

1467

7.8×3.6×4.0

52

Khoom Siv Muaj Khoom Plig

202007200959316082aa3a83b648f2b1285b9861f2270220200720095934ee267311a87c42f49cddd0f86a27e1a6

Daim ntawv pov

202007071631279c97b9d8eb7a4fa5bb348412a33d2a41

Cov FAQ

Q: Koj puas yog Hoobkas lossis tuam txhab lag luam?

A: Peb yog ib lub chaw tsim khoom nyob rau hauv 20 xyoo kev lag luam roj, tshwj xeeb hauv cov roj av roj hauv cov tshuab hluav taws xob roj ua hluav taws xob.

Tam sim no peb yog ib qho ntawm kev ua lag luam boiler tub luam hauv Suav teb.

Q: Dab tsi yog Qhov Warranty rau lub rhaub dej?

A: Peb lub chav boiler warranty yog ib xyoos, Lub sijhawm lav, txhua qhov chaw puas, koj tuaj yeem tau txais cov khoom seem tshiab dawb.

Q: Peb yuav tsum tos ntev npaum li cas rau kev xa khoom?

A. Feem ntau nws yuav siv li ntawm 35-45 hnub rau cov tshuab raj rau siab, Yog tias koj yuav tsum hloov qhov voltage lossis lub siab, nws xav tau sijhawm ntxiv.

Q: Yuav ua li cas txog koj lub sijhawm them?

A: Feem ntau nws yuav yog 30% tso nyiaj them nyiaj, 70% tshuav nyiaj ua ntej xa khoom. Peb lees txais T / T, L / C thiab lwm txoj kev them nyiaj.

Cim npe nrov: 1-10t wns series diesel roj pa roj chav boiler, Tuam Tshoj, tuam ntxhab, lub Hoobkas, lag luam, customized, nqi
