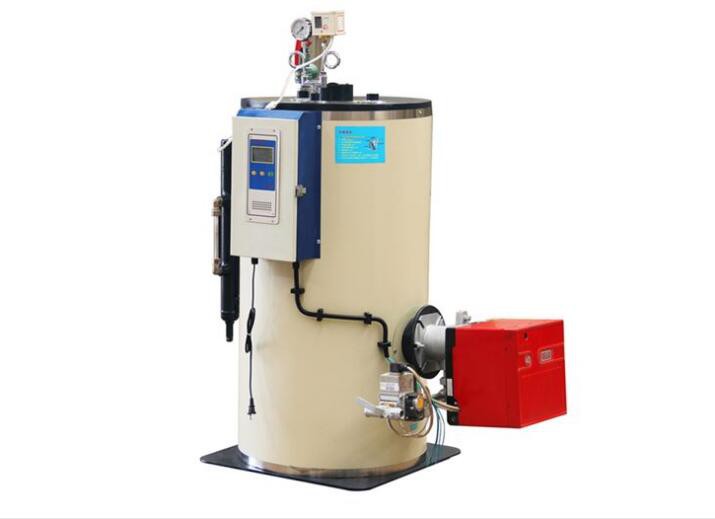

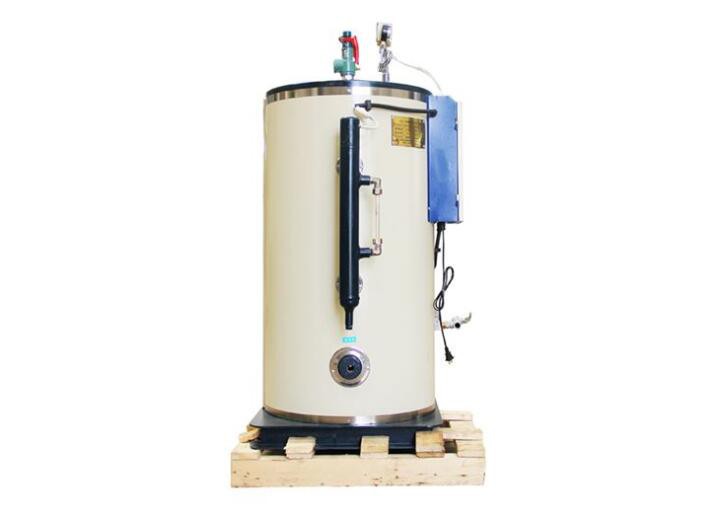

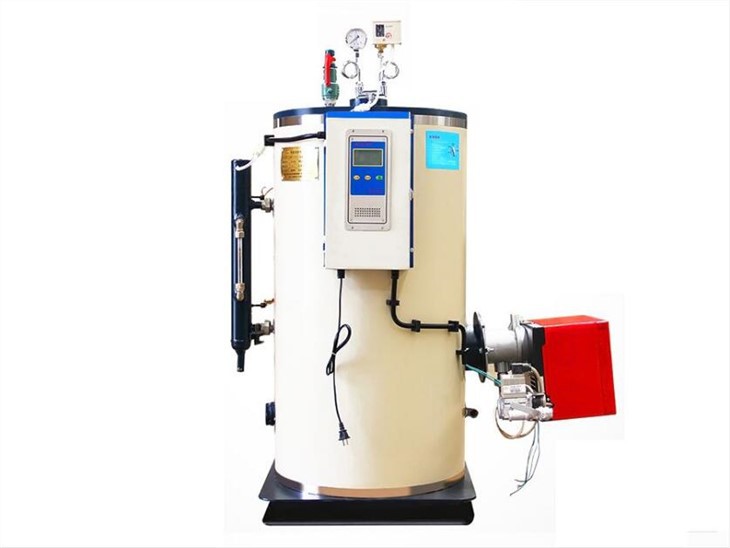

Yuji LSS Hnav Khaub Ncaws Kev Lag Luam 150 Kg / h Gas Chav Generator

Roj/Gas Fast Steam Generator
Qauv: LSS (Oil / Gas) Series
Chav Muaj Peev Xwm: LSS (Oil / Gas) 0.05-0.5T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)
Roj: Natural gas, liquefied petroleum gas
Daim ntaub ntawv: Khaub ncaws ntxhua khaub ncaws thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description:

1. Lub tshuab hluav taws xob ntsug lub tshuab hluav taws xob lub tshuab hluav taws xob yog lub tshuab hluav taws xob rov qab rau peb, uas muaj lub neej ua haujlwm ntev dua thiab tus nqi tu qis dua li cov qauv dej zoo tib yam.

2. Nruab nrog tsis siv neeg combustion tshuab, qib siab ntawm automation, raws li cov lus qhia tswj tsis siv neeg tshuab, hluav taws xob tsis siv neeg ignition, tsis siv neeg combustion, cua roj (gas) tsis siv neeg kev faib ua feem hloov, kev nyab xeeb thiab ruaj khov, zoo combustion nyhuv.

Thiab flameout tiv thaiv ntaus ntawv kom muaj kev nyab xeeb ua haujlwm.

3. Kev teeb tsa ntawm microcomputer LIQUID siv lead ua tswj qhov system, kev ua haujlwm ib zaug, dej, hluav taws xob teeb tsa hauv qhov chaw, nias lub pob qhib, lub tshuab hluav taws xob yuav nkag mus rau lub xeev tsis siv neeg ua haujlwm, muaj kev nyab xeeb thiab yooj yim, tsis muaj cov neeg ua haujlwm hauv lub tshuab hluav taws xob.

4. Cov khoom yog nruab nrog lub siab zoo tswj, kev ruaj ntseg valve, nrog overpressure, tsis tshua muaj dej theem thiab overheating tiv thaiv thiab lwm yam kev tiv thaiv ntau yam, los xyuas kom meej cov khoom zoo thiab kev nyab xeeb.

5. Chav ntau lawm thiab chav saturation tau raug soj ntsuam nruj kom ua tau raws li lub teb chaws thiab cov qauv kev lag luam.

6. Cov khoom lag luam yog lub Hoobkas ua tiav lub tshuab, tau teeb tsa nrog cov twj tso kua dej, solenoid valve thiab ib-txoj kev valve, tsuas yog yuav tsum tau txuas nrog lub hwj huam mov, cov kav dej, cov kav dej hauv dej thiab cov kav dej phwj tuaj yeem txuag tau tus nqi installation thiab ntau yam khoom siv installation.

Product Details:

Tech Parameter:

LSS Roj/Gas Chav Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Thermal efficiency (％)	Chav kub (℃)	Dimension (m)	Qhov hnyav (t)
LSS0.05-0.4/0.7-Y(Q)	50	0.4/0.7	≥93	151/171	0.62×0.62×0.83	0.206
LSS0.1-0.4/0.7-Y(Q)	100	0.4/0.7	≥93	151/171	0.69×0.69×0.968	0.252
LSS0.15-0.4/0.7-Y(Q)	150	0.4/0.7	≥93	151/171	0.75×0.75×1.13	0.303
LSS0.2-0.4/0.7-Y(Q)	200	0.4/0.7	≥93	151/171	0.8×0.8×1.286	0.35
LSS0.3-0.4/0.7-Y(Q)	300	0.4/0.7	≥93	151/171	0.8×0.8×1.525	0.55
LSS0.4-0.4/0.7-Y(Q)	400	0.4/0.7	≥93	151/171	0.84×0.84×1.775	0.7
