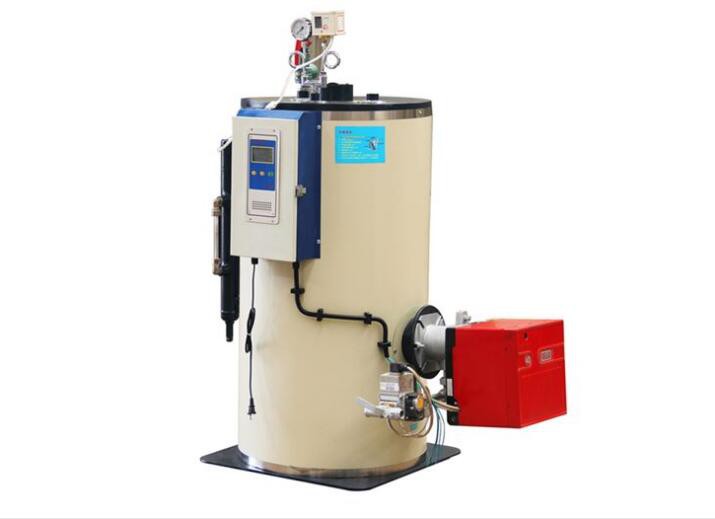

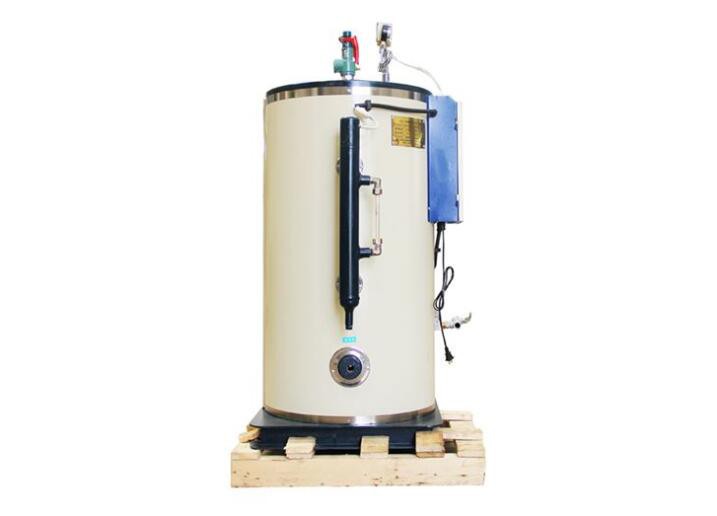

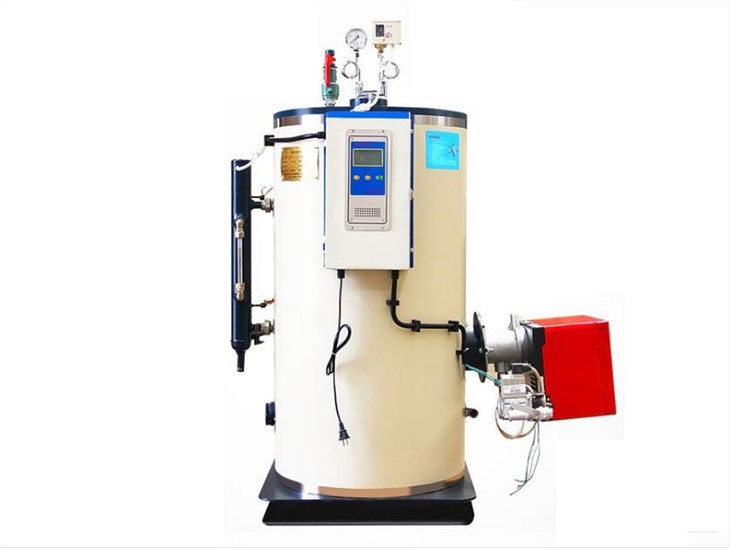

Ntsug Tag Nrho Tsis Siv Neeg Stainless Hlau Fast Steam Output LSS 100kg Roj Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob

Roj/Gas Fast Steam Generator
Qauv: LSS (Oil / Gas) Series
Chav Muaj Peev Xwm: LSS (Oil / Gas) 0.05-0.5T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)
Roj: Natural gas, liquefied petroleum gas
Daim ntaub ntawv: Khaub ncaws ntxhua khaub ncaws thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description:

1, me me thiab zoo nkauj

Roj ncu generator compact duab, zoo nkauj tsos, kev thauj mus los thiab installation yog yooj yim dua, thiab tsis siv ntau qhov chaw, kuj tsis tas yuav tsim chav boiler.

2, siab thermal efficiency

Roj roj chav generator thermal efficiency siab, nws thermal efficiency nyob rau hauv 98%, theem ntawm thermal efficiency ncaj qha txiav txim siab roj noj thiab ua hauj lwm nqi.

3. Qhov chaw sov

Siv cov qauv tsim peb-rov qab, thaj chaw cua sov hauv lub tshuab hluav taws xob tau txhim kho ntxiv, uas tuaj yeem txhim kho thaj tsam cua sov ntawm lub tshuab hluav taws xob thiab txhim kho cov thermal efficiency.

Product Details:

Tech Parameter:

LSS Roj/Gas Chav Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Thermal efficiency (％)	Chav kub (℃)	Dimension (m)	Qhov hnyav (t)
LSS0.05-0.4/0.7-Y(Q)	50	0.4/0.7	≥93	151/171	0.62×0.62×0.83	0.206
LSS0.1-0.4/0.7-Y(Q)	100	0.4/0.7	≥93	151/171	0.69×0.69×0.968	0.252
LSS0.15-0.4/0.7-Y(Q)	150	0.4/0.7	≥93	151/171	0.75×0.75×1.13	0.303
LSS0.2-0.4/0.7-Y(Q)	200	0.4/0.7	≥93	151/171	0.8×0.8×1.286	0.35
LSS0.3-0.4/0.7-Y(Q)	300	0.4/0.7	≥93	151/171	0.8×0.8×1.525	0.55
LSS0.4-0.4/0.7-Y(Q)	400	0.4/0.7	≥93	151/171	0.84×0.84×1.775	0.7

Peb lub tuam txhab:

Daim ntawv pov thawj:

Cim npe nrov: ntsug tag nrho tsis siv neeg stainless hlau ceev chav tso zis lss 100kg roj raug rho tawm haujlwm chav generator, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, customized, nqe
