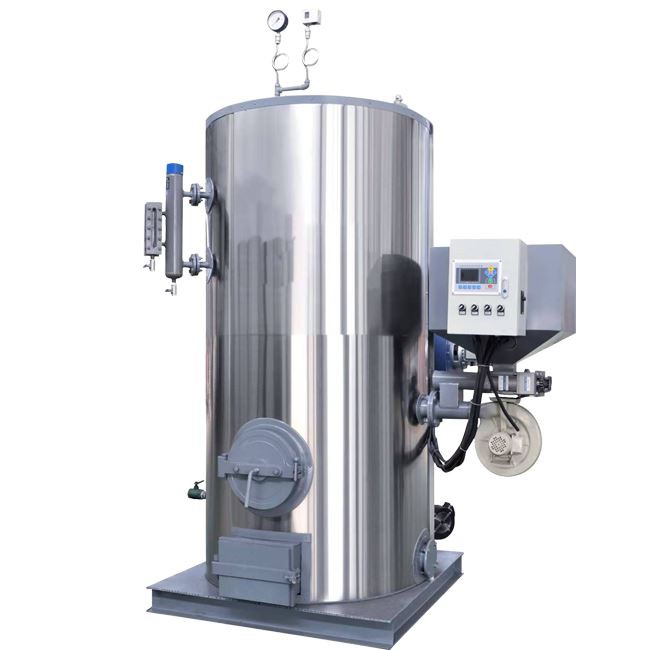

Vertical Boiler Biomass

Biomass Chav Generator
Qauv: LSG (Biomass) Series
Chav Muaj Peev Xwm: LSG (Biomass) 0.05-0.5T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)
Roj: Biomass Particle
Daim ntaub ntawv: Khaub ncaws ntxhua khaub ncaws thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description

Lub zais zis xaiv thickening ntawm boiler steel foob lub taub hau plhaub xaiv stainless hlau ntim, hluav taws xob tswj, coj lub tswv yim los tswj cov qib dej siab, lub zog cua sov nrog dej tsis txaus thiab kev tiv thaiv overpressure, xaiv cov kauj ruam-hom manipulation ntawm tus thawj hluav taws xob, raws li cov tswv yim kev siv lub tshuab ua kom tswj tau cov kauj ruam, txo qhov cuam tshuam ntawm boiler rau kab sib chaws, kom lub boiler ua haujlwm ruaj khov dua,

Chav kub txog li 171 ° C5, kev tiv thaiv ib puag ncig, tsis muaj emissions, muaj kev ntseeg siab, kev saib xyuas yooj yim;

Kev txuag hluav taws xob zoo yog qhov zoo, txuag hluav taws xob nce mus txog 50%;

Cov dej kub ib txwm pib txog 120 vib nas this tawm ntawm chav;

Muaj kev nyab xeeb thiab txhim khu kev qha, los xyuas kom muaj kev nyab xeeb ntawm cov khoom siv thiab cov neeg ua haujlwm;

Yooj yim rau kev khiav lag luam, ib lub khawm hloov, hluav taws xob tsis siv neeg ignition, tsis siv neeg dej kom tsawg.

Daim duab

Khoom zoo

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai sai.

2. High thermal efficiency

(1) ntsug dej yeeb nkab membrane phab ntsa qauv, nce tshav kub absorbing cheeb tsam, txo tshav kub poob, txuag roj.

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency.

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions.

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj.

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, dej qib tswj tsis siv neeg, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Tech Parameter

LSG Biomass Chav Generator

Qauv	Ratedevaporation muaj peev xwm (t / h)	Rated siab (MPa)	Chav ntsuas kub (℃)	Thermal efficiency (%)	Roj noj (kg / h)	Dimension D×H (m)	Qhov hnyav (t)
LSG 0.1-0.4	0.1	0.4	151	≥83	18.39	0.81×2.59	0.72
LSG 0.2-0.4	0.2	0.4	151	≥83	36.23	0.91×2.9	0.98
LSG 0.3-0.7	0.3	0.4/0.7	151/171	≥83	53.8	1.02×3.2	1.6
LSG 0.5-0.7	0.5	0.4/0.7	151/171	≥83	89.76	1.32×3.68	2.88
LSG 0.7-0.7	0.7	0.4/0.7	151/171	≥83	125.1	1.42×3.87	3.67
LSG1-0.7	1	0.4/0.7	151/171	≥83	178.7	1.62×4.38	4.8
