Chaw tsim tshuaj paus lag luam wholesale Biomass Ntoo Chip Coal Hluav Taws Xob Pellet Chav Generator

Product Description

Biomass chav generator yog ib hom me me boiler nrog circulating dej yeeb nkab.
Kev khiav dej num yog du, qhov chaw cua sov layout yog scientific thiab tsim nyog, tshav kub conduction yog ceev, chav siab nce ceev.
Tsis siv neeg pub, blower induction kiv cua zaus tswj, boiler tsis siv neeg ua haujlwm, raws li kev hloov pauv tuaj yeem hloov kho tus nqi roj, chav tso zis ruaj khov.
Nrog rau siab, dej theem, pa taws tso cua sov thiab lwm yam kev tiv thaiv thiab lub tswb ntsuas los xyuas kom meej kev nyab xeeb ntawm lub boiler.

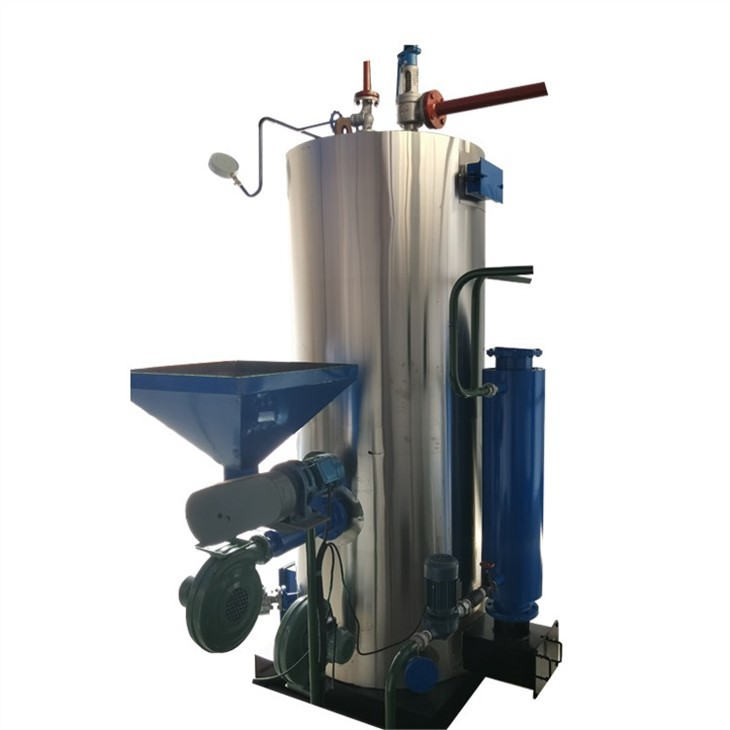

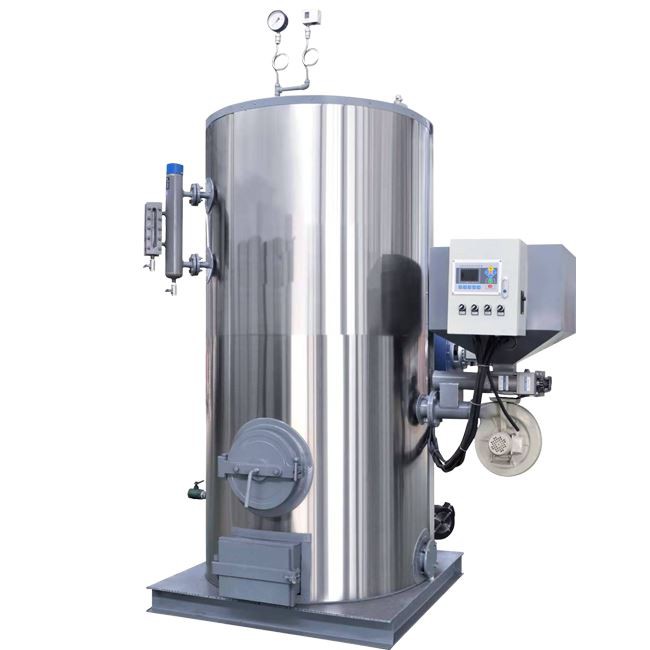

Daim duab

Khoom zoo

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai sai.

2. High thermal efficiency

(1) ntsug dej yeeb nkab membrane phab ntsa qauv, nce tshav kub absorbing cheeb tsam, txo tshav kub poob, txuag roj.

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency.

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions.

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj.

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, dej qib tswj tsis siv neeg, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Tech Parameter

LSG Biomass Chav Generator

Qauv	Rated evaporation muaj peev xwm (t / h)	Rated siab (MPa)	Chav ntsuas kub (degree)	Thermal efficiency (%)	Roj noj (kg / h)	Dimension D×H (m)	Qhov hnyav (t)
LSG01-0.4	0.1	0.4	151	Ntau dua lossis sib npaug li 83	18.39	0.81×2.59	0.72
LSG02-0.4	0.2	0.4	151	Ntau dua lossis sib npaug li 83	36.23	0.91×2.9	0.98
LSG03-0.7	0.3	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	53.8	1.02×3.2	1.6
LSG05-0.7	0.5	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	89.76	1.32×3.68	2.88
LSG07-0.7	0.7	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	125.1	1.42×3.87	3.67
LSG{0}}.7	1	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	178.7	1.62×4.38	4.8
