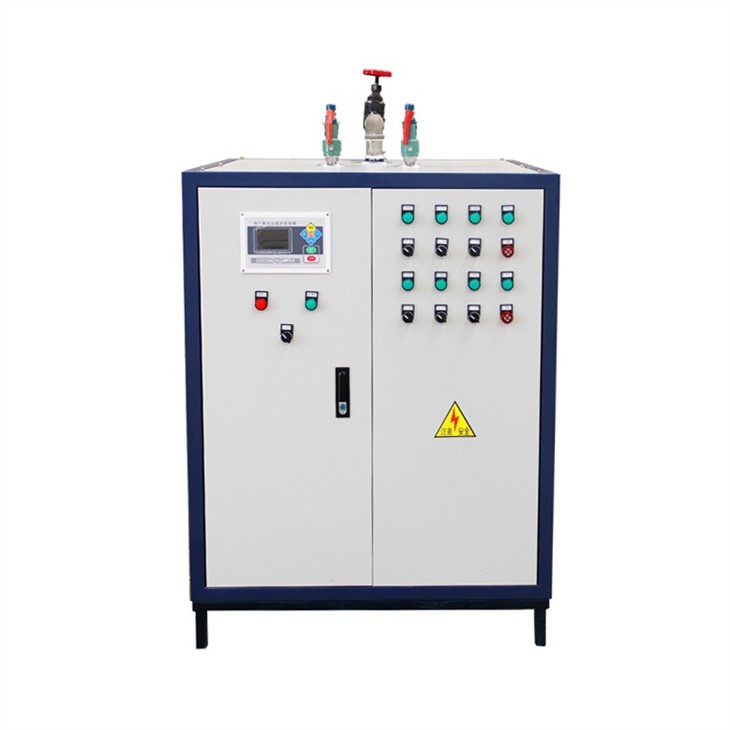

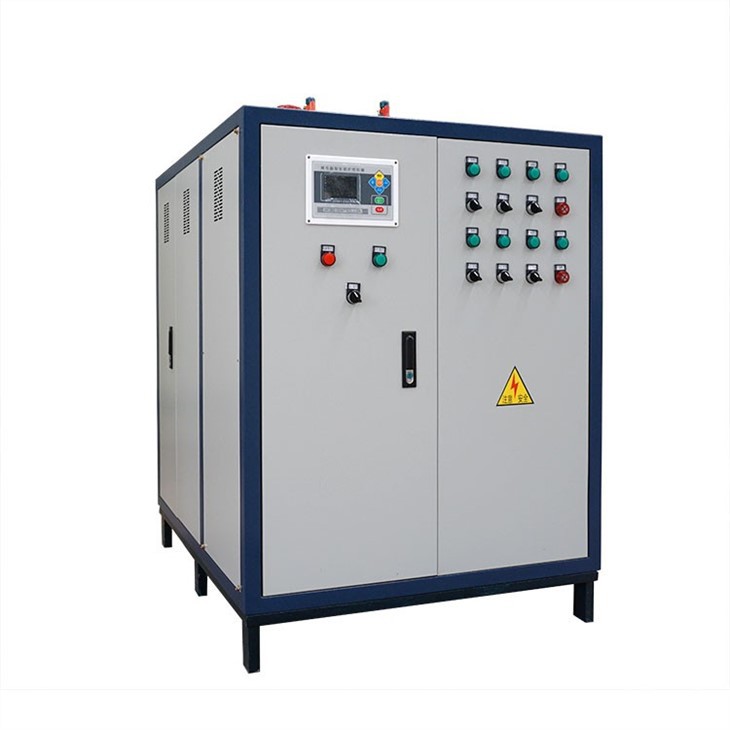

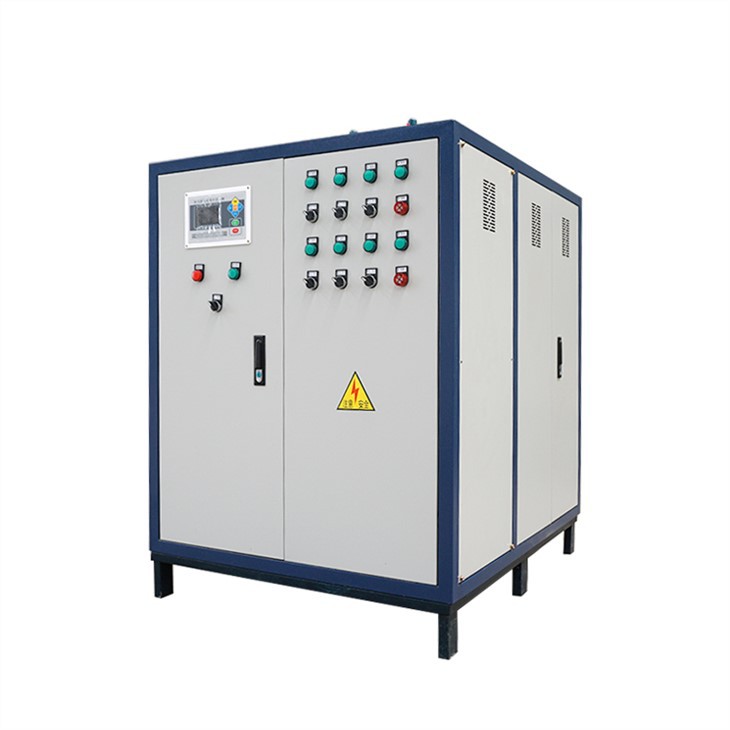

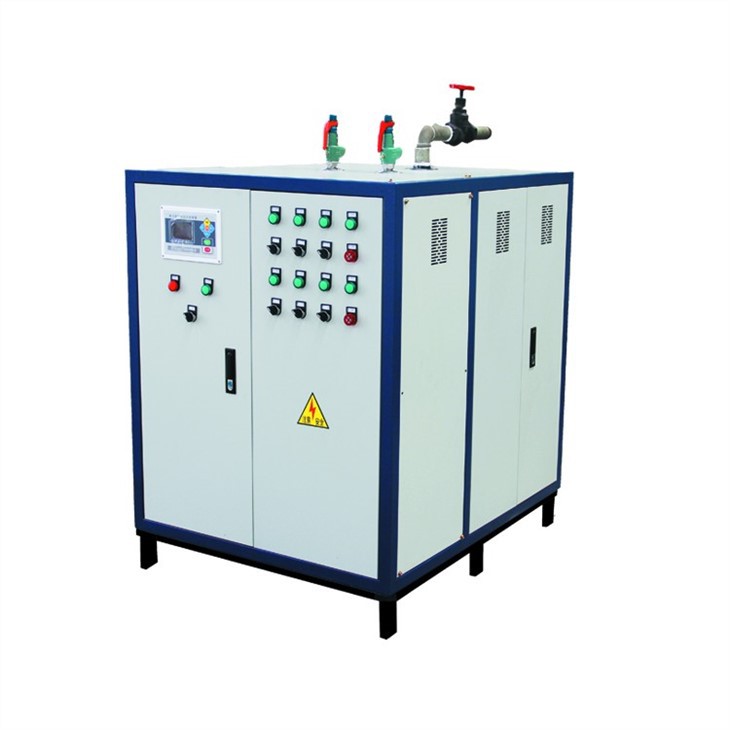

LDR 36KW Electric Steam Generator Generating Steam

Product Description

1. Cov kav dej kub: ntau cov kav dej kub tuaj yeem txhim kho kev ua haujlwm thiab ua kom lub neej ntev
2. Ua kua theem tswj system: txhim khu kev qha kua theem tswj system, muaj kev nyab xeeb dua
3. Kev tswj qhov siab: siab precision siab tswj qhov system tswj yog ntau leej
4. Cov khoom siv hluav taws xob: cov khoom lag luam paub zoo
5. Circuit Board: Lub tshuab tswj nws tus kheej tsim thiab tsim muaj kev nyab xeeb thiab txhim khu kev qha.
6. Liner: kev boiler steel phaj kev tiv thaiv corrosion

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag (kw)	Thermal efficiency (％)	Chav ntsuas kub (degree)	Dimension (m)	Qhov hnyav (t)
LDR0 008-0.4	8	0.4	6	Ntau dua lossis sib npaug li 99	151	0.82×0.84×0.8	0.12
LDR0 012-0.4	12	0.4	9	Ntau dua lossis sib npaug li 99	151	0.82×0.84×0.8	0.123
LDR0 016-0.4	16	0.4	12	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1	0.139
LDR0 024-0.4	24	0.4	18	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1	0.14
LDR0 032-0.4	32	0.4	24	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.2	0.142
LDR0 065-0.4	65	0.4	48	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.4	0.146
LDR0 075-0.4	75	0.4	54	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.4	0.15
LDR0 1-0.4	100	0.4	72	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.68	0.155
LDR0 13-0.4	130	0.4	96	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.68	0.165
LDR0 2-0.4	200	0.4	144	Ntau dua lossis sib npaug li 99	151	0.82×0.84×2.1	0.206
LDR{0}}24-0.4/0.7	240	0.4/0.7	174	Ntau dua lossis sib npaug li 99	151/170	0.82×0.84×1.7	0.267
LDR{0}}28-0.4/0.7	280	0.4/0.7	203	Ntau dua lossis sib npaug li 99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov qauv phab ntsa membrane, ua rau thaj chaw nqus cua sov thiab txo cov cua sov, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: lub siab tswj, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas ntsuas dej, tswj dej tsis siv neeg, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.
