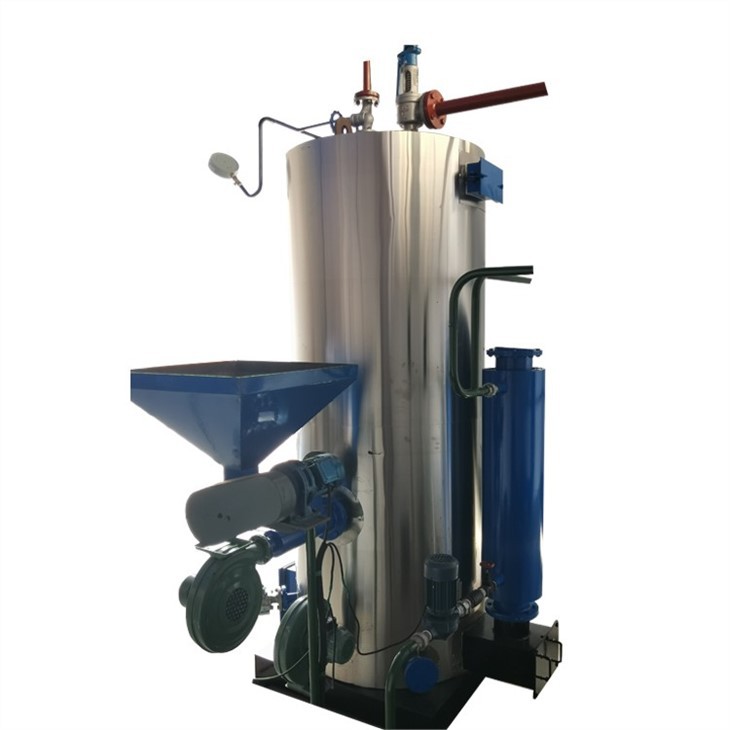

Kub Kub 15MW Biomass Generators Rau Boiler Biomass Generators Nqe

Product Description

1. Kev txuag hluav taws xob: Cov hauv paus tshuab blower thiab induced cua ntsawj ntshab kiv cua raug txo kom txo tau lub zog noj ntawm cov cua kiv cua thiab txuag lub zog tsawg kawg yog 30 %.
2.Txiv Txim 3% mus rau 5%: Lub boiler khiav nyob rau hauv qis txaj siab kom txo tau lub backpressure nyob rau hauv lub cub tawg, txo cov khoom ceev nyob rau hauv lub thib ob huab cua cheeb tsam, txhim khu lub siab theem nrab cua' s nkag mus thiab perturbation nyhuv thiab txhim kho cov combustion. efficiency.
3.Less abrasion: Lub tshav kub - absorbing nto raug kev puas tsuaj me ntsis thiab lub boiler no tuaj yeem khiav ntau tshaj 8000 teev hauv ib xyoos.
4. Tsawg tsis kam: Tom qab kev txhim kho thev naus laus zis, lub cim tshiab siab - zoo cyclone separator tau nce qib. Nws d50 yog 12 micrometer thiab nws d99 yog 100 micrometer. Nws cov separator efficiency yog tshaj 99.6 %. Tag nrho cov tsis kam yog tsawg dua 1100pa.

Daim duab

Khoom Zoo

1. Ceev ncu tiam

Chav yog tsim sai sai (3 - 5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai sai.

2. High thermal efficiency

(1) ntsug dej yeeb nkab membrane phab ntsa qauv, nce tshav kub nqus cheeb tsam, txo tshav kub poob, txuag roj.

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency.

3. Siab - kawg tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions.

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj.

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, dej qib tswj tsis siv neeg, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Tech Parameter

LSG Biomass Steam Generator

Qauv	Ratedevaporation muaj peev xwm (t / h)	Rated siab (MPa)	Chav ntsuas kub (degree)	Thermal efficiency (%)	Roj noj (kg / h)	Dimension D×H (m)	Qhov hnyav (t)
LSG0.1 - 0.4	0.1	0.4	151	≥83	18.39	0.81×2.59	0.72
LSG0.2 - 0.4	0.2	0.4	151	≥83	36.23	0.91×2.9	0.98
LSG0.3 - 0.7	0.3	0.4/0.7	151/171	≥83	53.8	1.02×3.2	1.6
LSG0.5 - 0.7	0.5	0.4/0.7	151/171	≥83	89.76	1.32×3.68	2.88
LSG0.7 - 0.7	0.7	0.4/0.7	151/171	≥83	125.1	1.42×3.87	3.67
LSG1 - 0.7	1	0.4/0.7	151/171	≥83	178.7	1.62×4.38	4.8
