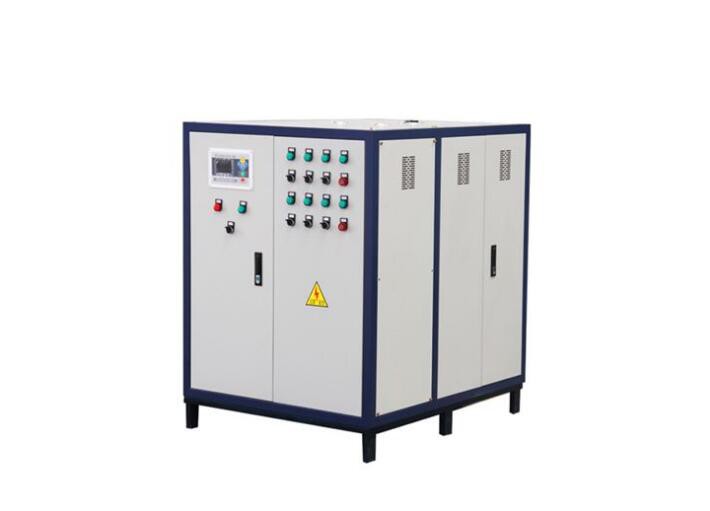

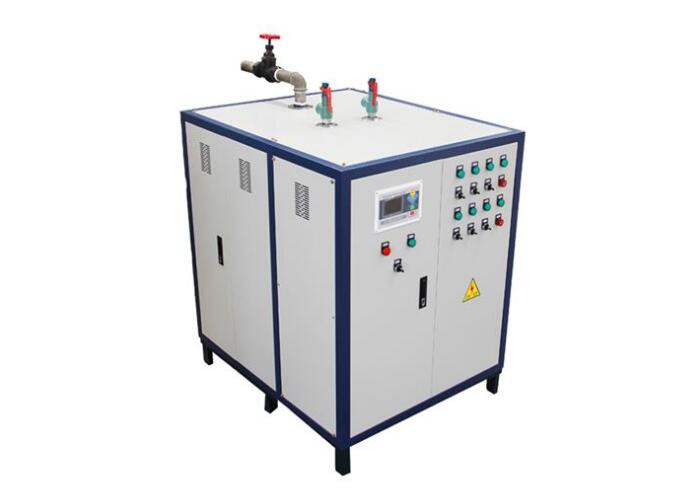

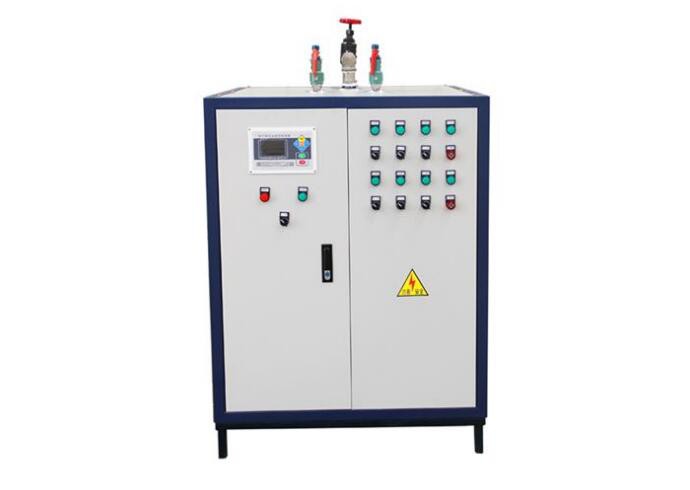

Tuam Tshoj Tus Nqi Qis Me Portable 36kw 48kw 72kw Fais Chav Generator Kev Muag Khoom

Hluav taws xob cua sov ceev Steam Generator
Qauv: LDR (Cov Cuab Yeej Hluav Taws Xob) Series
Chav Muaj Peev Xwm: LDR (Electric Cua sov) 0.01-0.4T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)

Khoom Taw qhia

Product Description

Lub tshuab hluav taws xob cua sov chav generators yog ua los ntawm stainless hlau nrog thickness 12 hli. Lub tshuab hluav taws xob no yog tsim los ntawm lub thawv, PLC tswj qhov system, lub twj tso kua mis tso dej, hluav taws xob cua sov yeeb nkab groupware, kua theem tswj, nyem valve, thiab lwm yam. Lub tshuab hluav taws xob no ua haujlwm tsis siv neeg.

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag (kw)	Thermal efficiency (％)	Chav ntsuas kub (℃)	Dimension (m)	Qhov hnyav (t)
LDR 0.008-0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR 0.012-0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR 0.016-0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR 0.024-0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR 0.032-0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR 0.065-0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR 0.075-0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR 0.1-0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR 0.13-0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR 0.2-0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR0.24-0.4/0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR0.28-0.4/0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog sai sai (3-5 feeb) tom qab boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov txheej txheem phab ntsa membrane, nce qhov chaw nqus cua sov thiab txo cov cua sov, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, qib dej tsis siv neeg tswj, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Daim ntawv pov thawj

Cim npe nrov: Tuam Tshoj tus nqi qis me me portable 36kw 48kw 72kw hluav taws xob chav generator rau muag, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, Hoobkas, kho, nqe
