Kev nyab xeeb siab me me 0.1ton Kev Lag Luam Kev Lag Luam Siv Biomass Steam Generator

Product Description

1. Tsib lub cuab yeej tiv thaiv, yooj yim siv.2. Patented cua muab tshuab tuaj yeem tiv thaiv cua txias los ntawm kev nkag mus rau hauv lub cub tawg thiab ua kom cov nplaim taws kub nce mus txog 100 degrees.3. Lub tshuab hluav taws xob siv ntau yam - tempering tube qauv, uas muaj lub neej ntev kev pab cuam thiab txo tus nqi kho dua li cov qauv dej zoo tib yam.Tshwj xeeb nrog lub zog - txuag hluav taws xob, ua kom tag nrho siv cov khoom siv hluav taws xob pov tseg, thermal efficiency txog li 90 %, chav ntau lawm ceev tau zoo heev.5. Lub tshuab hluav taws xob txais cov khoom zoo silicate rwb thaiv tsev los tiv thaiv tshav kub dissipation; Lub zuag qhia tag nrho cov qauv tsim siv tshuaj tsuag tshuab, zoo nkauj thiab dav.6. Lub tshuab tag nrho yog lub Hoobkas nruab nrog cov twj tso kua mis, cov twj paj nruag, lub valve, thiab lwm yam, txuag cov nqi installation thiab sijhawm.

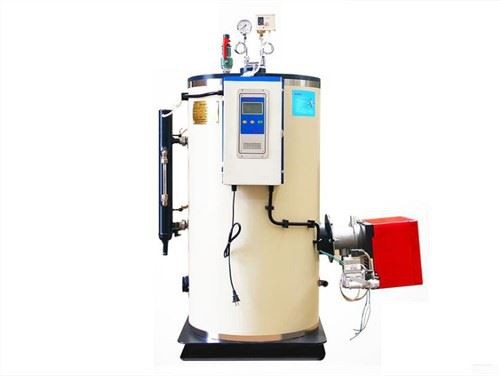

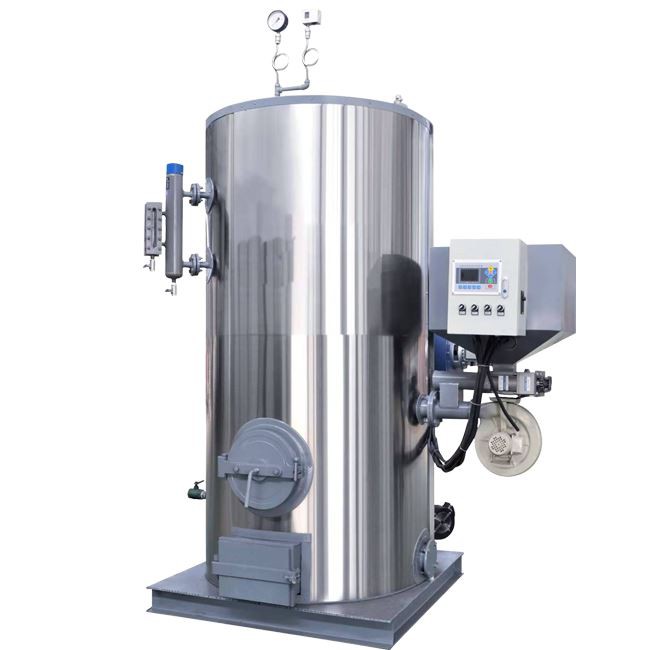

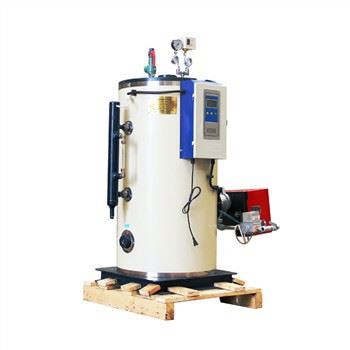

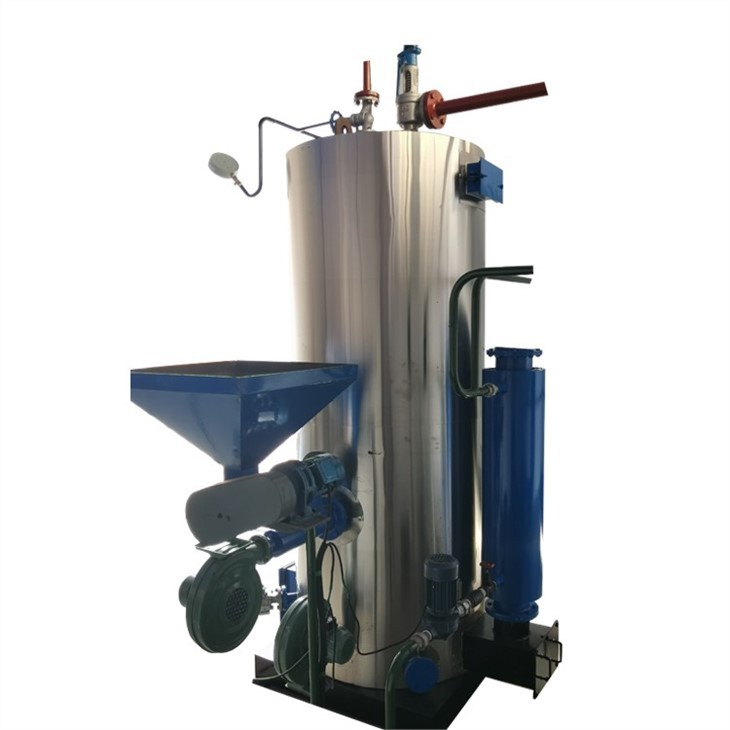

Daim duab

Khoom Zoo

1. Ceev ncu tiam

Chav yog tsim sai sai (3 - 5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai sai.

2. High thermal efficiency

(1) ntsug dej yeeb nkab membrane phab ntsa qauv, nce tshav kub nqus cheeb tsam, txo tshav kub poob, txuag roj.

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency.

3. Siab - kawg tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions.

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj.

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, dej qib tswj tsis siv neeg, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Tech Parameter

LSG Biomass Steam Generator

Qauv	Ratedevaporation muaj peev xwm (t / h)	Rated siab (MPa)	Chav ntsuas kub (degree)	Thermal efficiency (%)	Roj noj (kg / h)	Dimension D×H (m)	Qhov hnyav (t)
LSG0.1 - 0.4	0.1	0.4	151	≥83	18.39	0.81×2.59	0.72
LSG0.2 - 0.4	0.2	0.4	151	≥83	36.23	0.91×2.9	0.98
LSG0.3 - 0.7	0.3	0.4/0.7	151/171	≥83	53.8	1.02×3.2	1.6
LSG0.5 - 0.7	0.5	0.4/0.7	151/171	≥83	89.76	1.32×3.68	2.88
LSG0.7 - 0.7	0.7	0.4/0.7	151/171	≥83	125.1	1.42×3.87	3.67
LSG1 - 0.7	1	0.4/0.7	151/171	≥83	178.7	1.62×4.38	4.8
