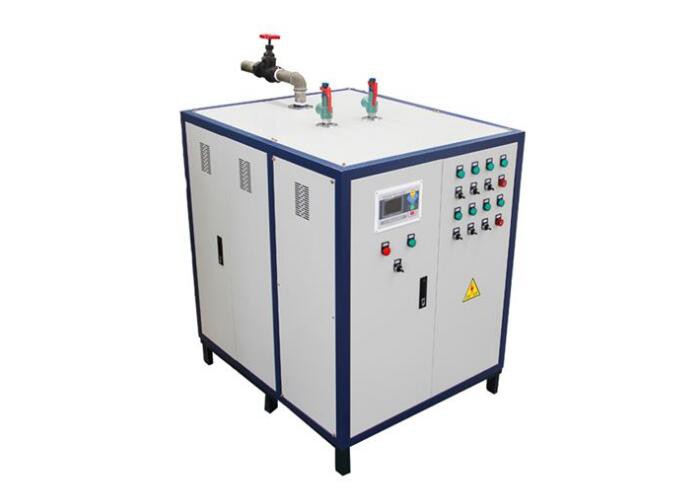

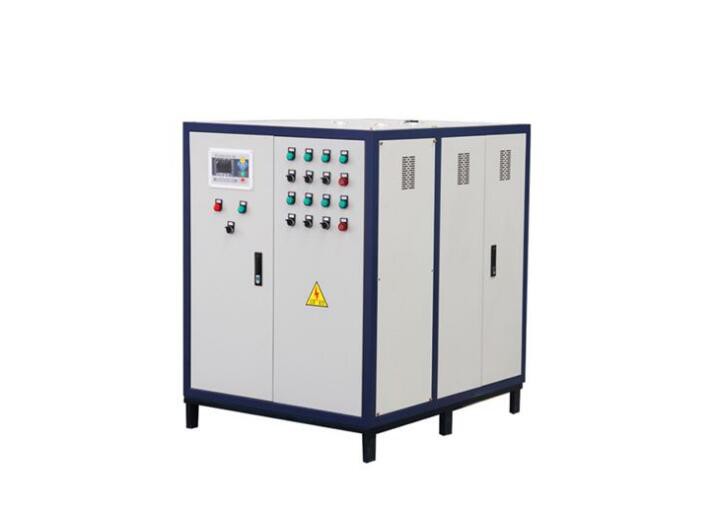

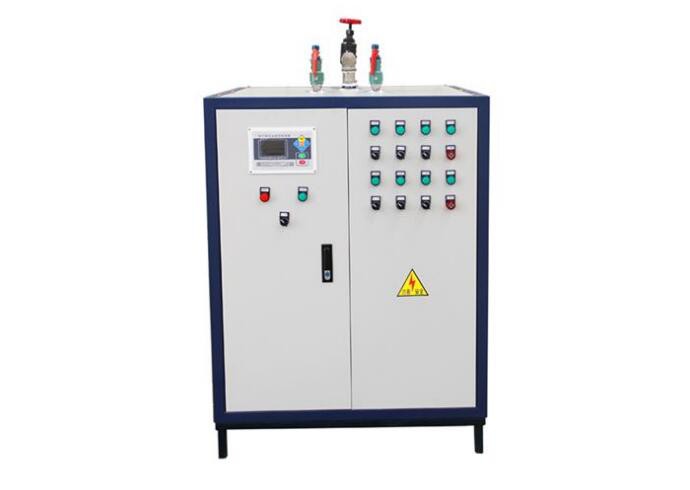

150kw High Performance Tsawg Nqe Chav Turbine Generator

Hluav taws xob cua sov Fast Chav Generator
Qauv: LDR (Electric cua sov) Series
Chav Muaj Peev Xwm: LDR (Electric Cua sov) 0.01-0.4T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)

Khoom Taw qhia

Product Description

Lub tshuab xa dej yog lub caj pas ntawm lub tshuab hluav taws xob tsis siv neeg lub tshuab hluav taws xob, uas txuas ntxiv muab cov neeg siv nrog chav qhuav.

Thaum cov dej nkag mus rau hauv lub tank dej, qhib lub hwj chim hloov, tsav los ntawm lub teeb liab tsis siv neeg, lub siab kub resistant solenoid valve qhib, lub twj tso kua mis dej ua haujlwm, thiab raug txhaj rau hauv lub cub tawg los ntawm ib txoj kev valve.

Thaum solenoid valve, ib-txoj kev valve thaiv los yog puas, dej muab rau ib tug tej yam siab yuav overpressure valve overflow rov qab mus rau lub tank dej, thiaj li tiv thaiv lub twj tso kua mis.

Thaum cov dej tank dej los yog cov cua seem hauv cov kav dej twj tso kua mis, tsuas yog cov cua nkag mus rau hauv cov dej, tsuav yog lub valve tso tawm sai sai, yuav tsum tau txau nrog dej, kaw lub qhov tso pa tawm, lub twj tso kua mis tuaj yeem ua haujlwm ib txwm.

Cov dej xa dej yog qhov tseem ceeb tshaj plaws ntawm lub twj tso kua mis, feem ntau yog siv cov kev kub siab thiab cov dej ntws loj ntawm ntau theem vortex twj tso kua mis, ib feem me me ntawm lub twj tso kua mis diaphragm lossis cov twj tso kua mis.

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag (kw)	Thermal efficiency (％)	Chav kub (℃)	Dimension (m)	Qhov hnyav (t)
LDR 0.008-0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR 0.012-0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR 0.016-0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR 0.024-0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR 0.032-0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR 0.065-0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR 0.075-0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR 0.1-0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR 0.13-0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR 0.2-0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR0.24-0.4/0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR0.28-0.4/0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov qauv phab ntsa membrane, ua rau thaj chaw nqus cua sov thiab txo cov cua sov, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, qib dej tsis siv neeg tswj, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.
