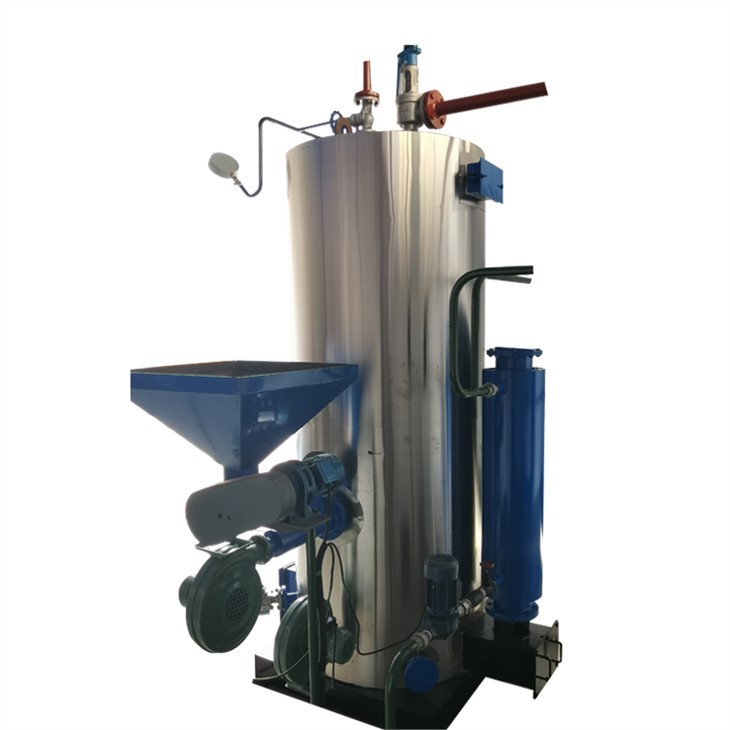

100kg 200kg 300kg 500kg Steam Generator Ntoo Boilers Coal Biomass Chav Boiler

Product Description

1. Cov dej inlet system txais kev hloov pauv hom rov qab dej inlet hom. Cov dej ntxiv nkag mus rau cov khoom siv hluav taws xob pov tseg ntawm tus Tsov tus tw thiab nkag mus rau lub tshuab hluav taws xob tom qab kev sib pauv cua sov. Lub qhov cub tuaj yeem tso tawm 10 feeb tom qab qhov hluav taws xob ua tiav, thiab qhov tso pa tawm qis.
2. Induced cua system: induced cua ntsawj ntshab ntxuam txais tshwj xeeb uas tsis muaj suab nrov, siab kub resistant hom ntev ncej tsav, nrog mas bearings, ntev kev pab cuam lub neej.
3. Lub kaw lus tswj tau nruab nrog kev tswj hwm microcomputer kom paub txog kev ua haujlwm ntawm ib lub khawm. Nws muaj lub luag haujlwm ntawm kev teeb tsa tsis siv neeg pub mis, tsis siv neeg ignition, moj tej tawg thiab txhuas cua kev pab cuam, thiab qhov hluav taws kub loj tuaj yeem hloov ncaj qha thiab kho.
4. Cov txheej txheem pub mis, kev pub noj nruab nrab ntawm qib thawj thiab qib thib ob ntawm kev pub thiab tsim cov txheej khoob thiab thaiv cov ntawv hluav taws, tsis muaj qhov tshwm sim tempering, tib lub sij hawm qeeb ntawm cov khoom noj khoom haus, txo qhov kev ua txhaum.

Daim duab

Khoom zoo

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai sai.

2. High thermal efficiency

(1) ntsug dej yeeb nkab membrane phab ntsa qauv, nce tshav kub absorbing cheeb tsam, txo tshav kub poob, txuag roj.

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency.

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions.

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj.

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, dej qib tswj tsis siv neeg, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Tech Parameter

LSG Biomass Chav Generator

Qauv	Rated evaporation muaj peev xwm (t / h)	Rated siab (MPa)	Chav ntsuas kub (degree)	Thermal efficiency (%)	Roj noj (kg / h)	Dimension D×H (m)	Qhov hnyav (t)
LSG01-0.4	0.1	0.4	151	Ntau dua lossis sib npaug li 83	18.39	0.81×2.59	0.72
LSG02-0.4	0.2	0.4	151	Ntau dua lossis sib npaug li 83	36.23	0.91×2.9	0.98
LSG03-0.7	0.3	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	53.8	1.02×3.2	1.6
LSG05-0.7	0.5	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	89.76	1.32×3.68	2.88
LSG07-0.7	0.7	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	125.1	1.42×3.87	3.67
LSG{0}}.7	1	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	178.7	1.62×4.38	4.8
