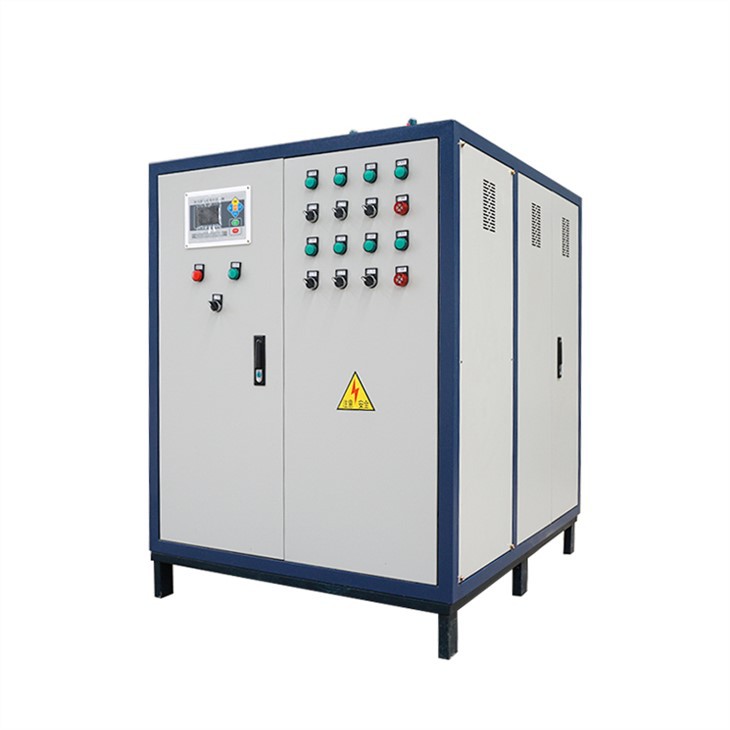

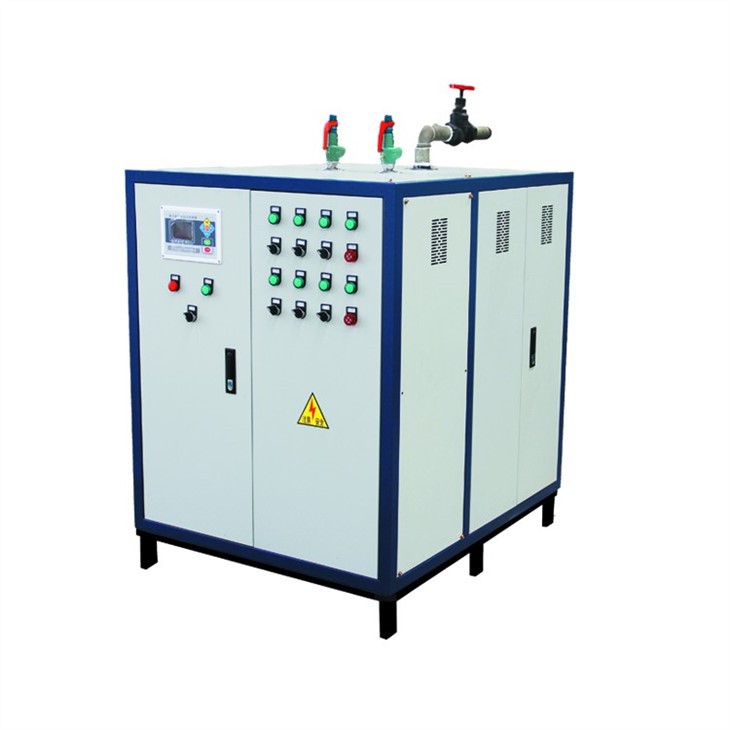

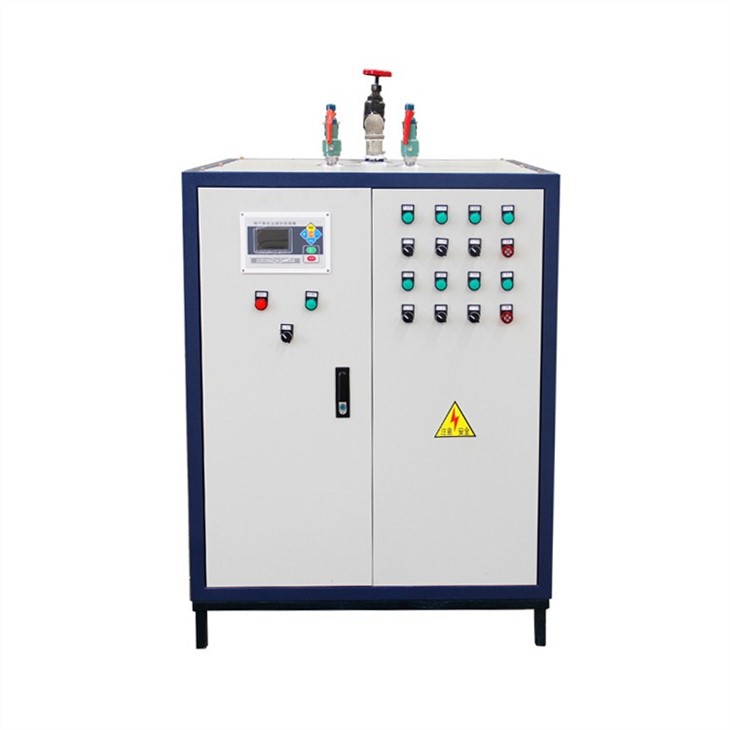

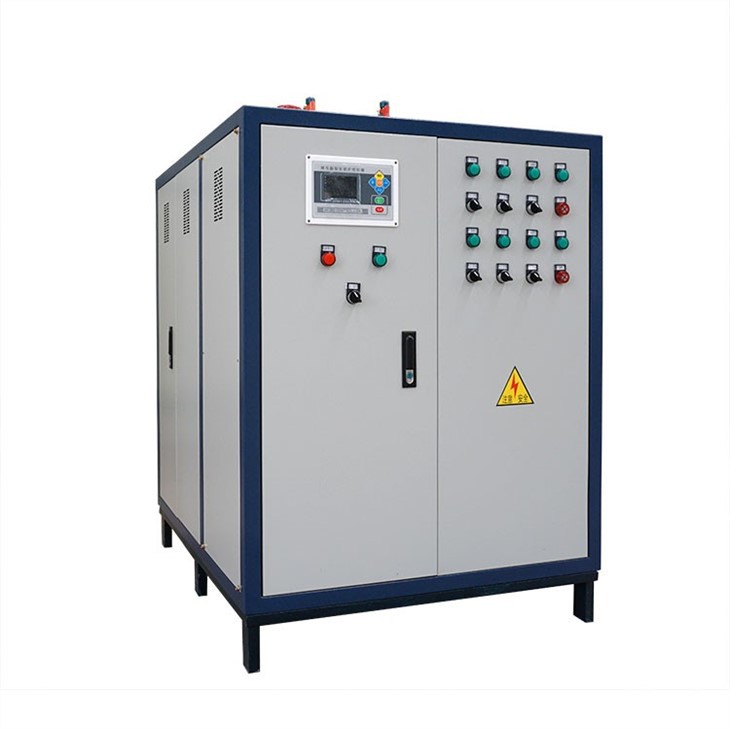

Clean Electric Chav Boiler Rau Chav Dej Center 36kw Electric Steam Generator

Hluav taws xob cua sov ceev Steam Generator

Steam Capacity: LDR (Electric Heating) 0.01-0.4T/H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)

Khoom Taw qhia

1. Chav generator combustion yog stability.

2. Kev ua haujlwm siab dua tuaj yeem tau txais ntawm kev ua haujlwm qis.
3. Cov cua kub kub yog qhov ruaj khov, lub tshuab hluav taws xob tuaj yeem hloov kho kom raug, thiab cov cua sov ua haujlwm siab.

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag （kw）	(％)		Dimension (m)	Qhov hnyav (t)
LDR0.008-0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR 0.012-0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR 0.016-0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR 0.024-0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR 0.032-0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR0.065-0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR 0.075-0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR0.1-0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR 0.13-0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR 0.2-0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR0.24-0.4/0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR0.28-0.4/0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302

Nta

1. Quick steam generation

Chav yog sai sai (3-5 feeb) tom qab boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov txheej txheem phab ntsa membrane, ua rau thaj tsam nqus cua sov thiab txo qhov kub poob, txuag roj

(2) Equipped with energy saver, improve thermal efficiency

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, qib dej tsis siv neeg tswj, thiab lwm yam.

6. Cov qauv zoo heev

Daim ntawv pov thawj

Cim npe nrov: huv electric chav boiler rau chav dej chaw 36kw hluav taws xob chav generator, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, customized, nqe
