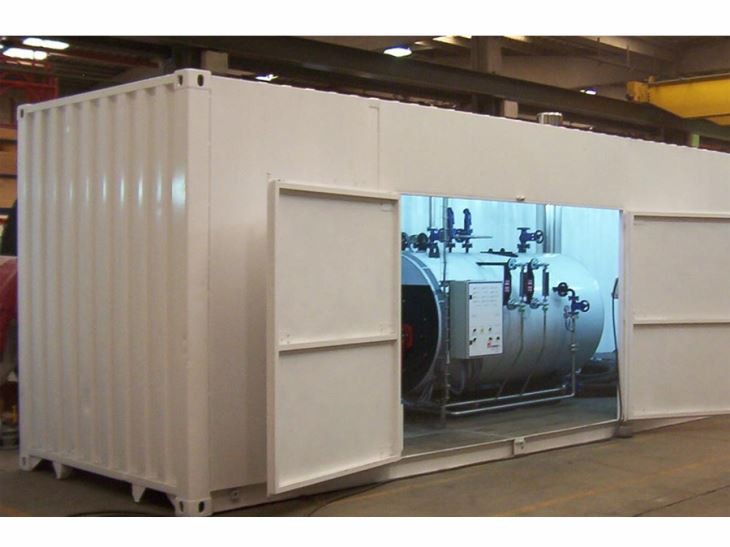

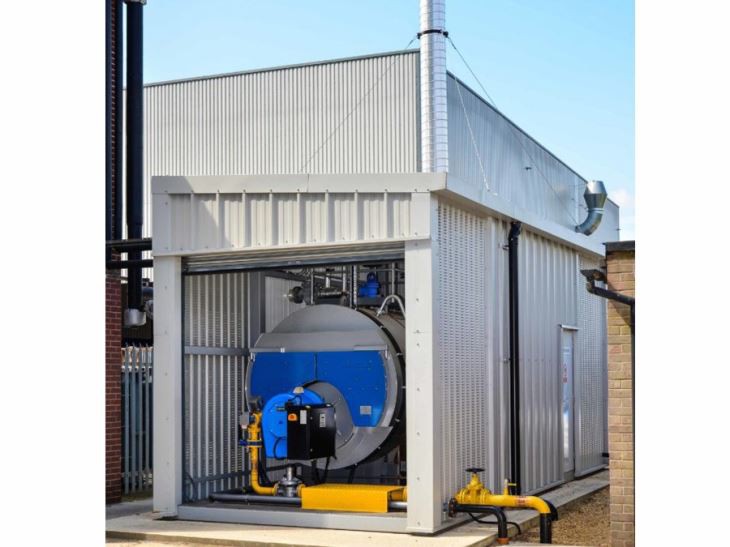

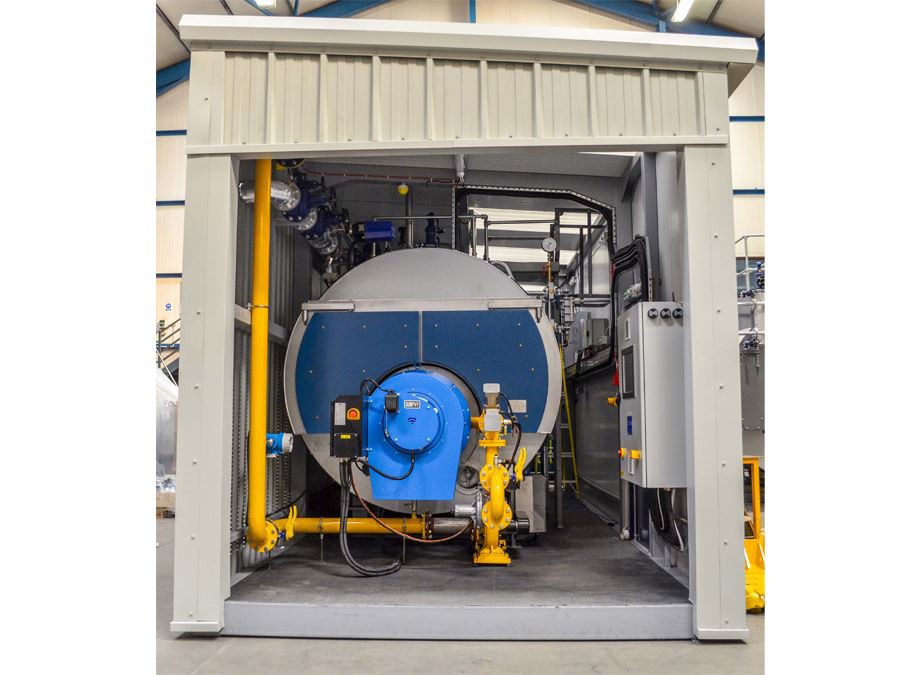

WNS Roj / roj Thawv Chav Chav Boiler

WNS Roj / Roj Thawv Chav Chav Boiler
Qauv: WNS Series
Kev Muaj Peev Xwm: 0.5T / H-20T / H Dej Kub: 0.35MW-14MW
Chav Siab: 0.4MPa ~ 2.5MPa (Yog xav tau raws li xav tau)
Roj: Nkev nkev, LPG, LNG, CNG, Biogas, Nkev nroog, Diesel, Roj hnyav, Roj thiab roj.
Daim ntawv thov: Cov roj tshav pob, cov cuab yeej tawm sab nraud, cua sov, chaw tsim kho cua sov, cua sov sab nraud thiab lwm yam tshwj xeeb.

Khoom Taw qhia

Taw qhia

WNS roj / roj ntim chav boiler yog hom kev nyab xeeb, siv tau thiab tsis siv neeg ua cua sov. Roj raug rho tawm haujlwm thawv tsev boiler muaj cov chav rwj nyias nyob nyias. Cov thawv ntim hluav taws xob yog kab rov tav, cov yeeb nkab tua hluav taws, peb rov qab, ntub dej rov qab qauv, nrog cov ua haujlwm siab, ntim me me, kev teeb tsa yooj yim, kev khiav lag luam yooj yim, kev ua haujlwm ruaj khov, kev thov dav ntau yam ect.

Cov lus qhia tseem ceeb: Peb tuaj yeem kho lub rhaub dej rau koj raws li cov roj, qhov muaj peev xwm thiab chav siab raws li cov neeg xav tau.

Cov Qauv Daim Ntawv Qhia

Cov tsis

Chav Boiler Tsis

Qauv	Nyob evaporation peev xwm (t / h)	Nyob chav siab (Mpa)	Chav sov (℃）	Kev ntsuas kom sov ua tau zoo (％)	Kev siv roj		Qhov ntev (m)	Nyhav (t)
Qauv	Nyob evaporation peev xwm (t / h)	Nyob chav siab (Mpa)	Chav sov (℃）	Kev ntsuas kom sov ua tau zoo (％)	Roj (kg / teev)	Roj (Nm³ / h)	Qhov ntev (m)	Nyhav (t)
WNS1-0.7 / 1.0-Y (Q)	1	0.7/1.0	194	≥98.36	61	73	3.2×1.9×2.2	4.9
WNS2-1.0 / 1.25-Y (Q)	2	1.0/1.25	194	≥98.36	121	145	4.2×2.3×2.5	8
WNS3-1.0 / 1.25-Y (Q)	3	1.0/1.25	194	≥98.36	182	217	4.5×2.1×2.4	9
WNS4-1.0 / 1.25-Y (Q)	4	1.0/1.25	194	≥98.36	243	289	5.0×2.3×2.6	11
WNS6-1.25 / 1.6-Y (Q)	6	1.25/1.6	194	≥98.36	367	435	5.4×2.4×2.7	18.6
WNS10-1.25 / 1.6-Y (Q)	10	1.25/1.6	194	≥98.36	601	735	6.3×2.7×3.2	20.5
WNS15-1.25 / 1.6-Y (Q)	15	1.25/1.6	194	≥98.36	906	1101	8.9×3.4×3.6	42
WNS20-1.25 / 1.6-Y (Q)	20	1.25/1.6	194	≥98.36	1211	1467	7.8×3.6×4.0	52

Dej Kub Kub Npav Npaum Dej Tsis

Qauv	Tus Ntaus Nqi (MW)	Nyob chav siab (Mpa)	Kev ntsuas kom sov ua tau zoo (％)	Kev siv roj		Qhov ntev (m)	Nyhav (t)
Qauv	Tus Ntaus Nqi (MW)	Nyob chav siab (Mpa)	Kev ntsuas kom sov ua tau zoo (％)	Roj (kg / teev)	Roj (Nm³ / h)	Qhov ntev (m)	Nyhav (t)
WNS 0.35-95 / 70-Y (Q)	0.35	1.25	≥98.77	31	37	2.94×1.45×1.7	2.8
WNS 0.7-95 / 70-Y (Q)	0.7	1.25	≥98.77	62	74	3.19×1.88×2.16	5
WNS 1.4-115 / 70-Y (Q)	1.4	1.25	≥98.77	119	146	4.13×2.24×2.42	8
WNS 2.8-115 / 70-Y (Q)	2.8	1.25	≥98.77	237	288	4.92×2.25×2.6	10.5
WNS 4.2-115 / 70-Y (Q)	4.2	1.25	≥98.77	357	434	5.4×2.4×2.65	17.8
WNS 7-115 / 70-Y (Q)	7	1.25	≥98.77	602	729	6.28×2.64×3.17	19
WNS 10.5-115 / 70-Y (Q)	10.5	1.25	≥98.77	903	1080	7.8×3.39×3.54	35
WNS 14-115 / 70-Y (Q)	14	1.25	≥98.77	1203	1450	9.12×4.4×4.1	48
