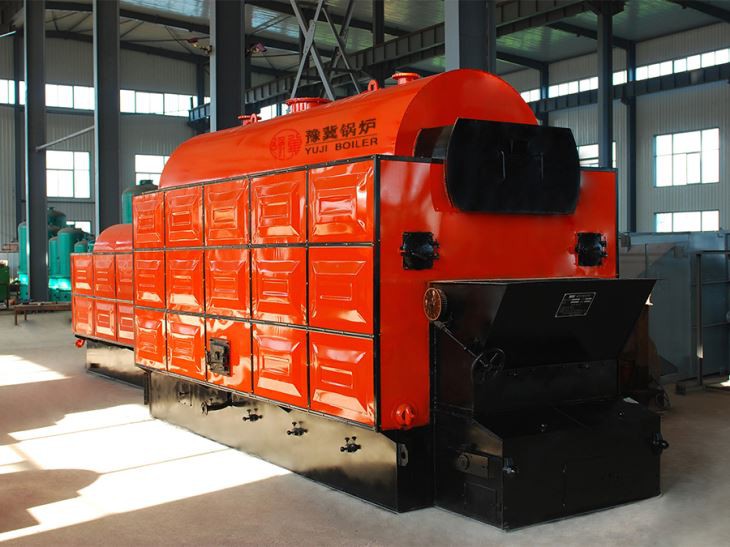

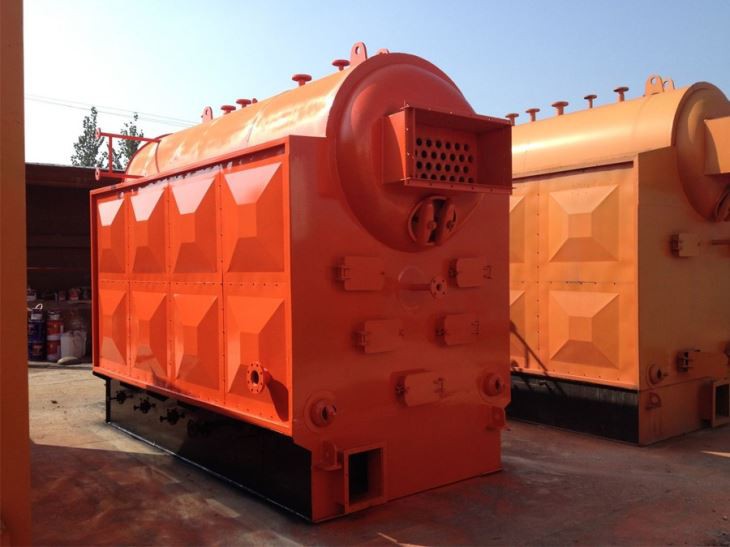

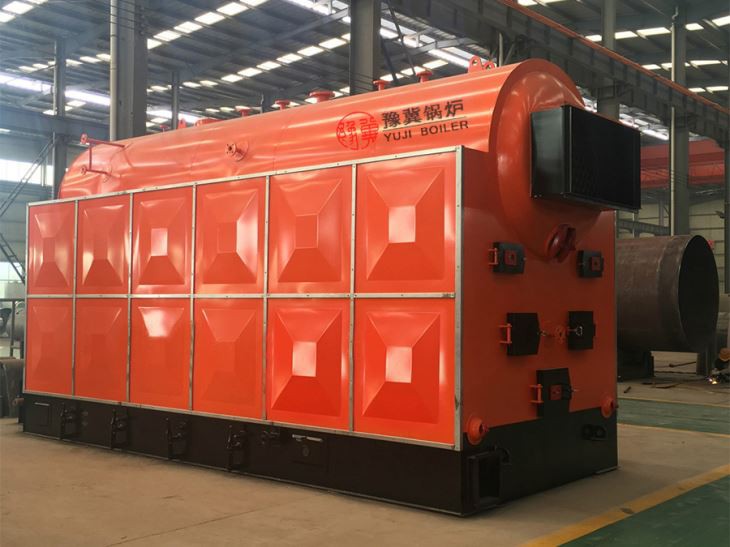

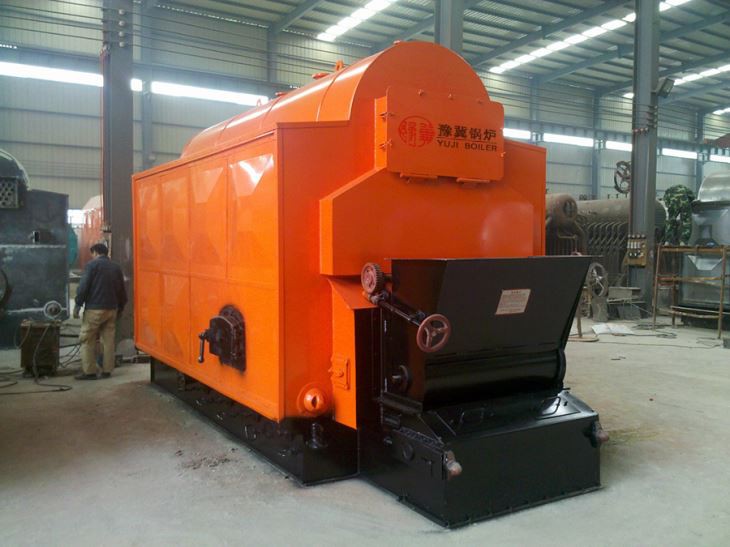

DZL Biomass Raug Rho Tawm Haujlwm Grate Kub Dej Boiler

DZL Biomass Raug Rho Tawm Haujlwm Dej Kub Boiler
Qauv: DZL Series
Tus nqi zog: 0.7MW-7MW
Chav Siab: 0.7Mpa-2.5Mpa (Xaiv tau raws li xav tau)
Roj: Sawdust, Biomass Pallet, Husks Hnyuv, Cov Txiv Laum Quav, Cov Quav Quav, Cov Quav Quav, Pob Kws Txiv Ntoo, Pob Kws Hniav, Khaub Ncaws, xyoob thiab lwm yam roj ntxiv rau cov qoob loo.

Khoom Taw qhia

Taw qhia

Wood chip biomass boiler yog tib lub nruas boiler nrog cov yeeb nkab hluav taws kub thiab dej yeeb nkab. Biomass central cua kub boiler muaj qhov cua sov ua kom ceev, ceev ceev lub siab nce siab, lub tsev qauv, siab thermal efficiency thiab tsim nyog rau txhua hom thee. Biomass dej rhaub siv cov kev tshawb fawb thiab thev naus laus zis tshiab tshaj plaws hauv kev lag luam xws li arched raj ntawv thiab xov flue pa luam yeeb, uas ua kom zoo ntawm kev ua hauj lwm tag nrho ntawm lub rhaub dej thiab tiv thaiv qhov tshwm sim ntawm kev ua txhaum xws li grate coking thiab lub raj xa dej xau.

Cov lus qhia tseem ceeb: Peb tuaj yeem kho lub rhaub dej rau koj raws li cov roj, qhov muaj peev xwm thiab chav siab raws li cov neeg xav tau.

Khoom Daim Ntawv Qhia

Cov tsis

Qauv	Rated zog (mw)	Rated siab (MPa)	Kev ntsuas kom sov ua tau zoo (%)	Kev siv roj (kg / teev)	Qhov ntev L×W×H (m)	Nyhav (t)
DZL0.7-1.0 / 95/70	0.7	1.0	≥83	174.3	5.1×2.2×2.9	15
DZL1.4-1.0 / 95/70	1.4	1.0	≥83	348.6	6.14×2.6×3.3	18
DZL2.1-1.0 / 95/70	2.1	1.0	≥83	517	6.33×2.7×3.3	24
DZL2.8-1.0 / 95/70	2.8	1.0	≥83	687.2	6.88×2.7×3.3	27
DZL4.2-1.25 / 95/70	4.2	1.25	≥83	1024	7.3×3.19×3.7	31
DZL5.6-1.25 / 95/70	5.6	1.25	≥83	1374.3	7.8×3.4×3.7	33
DZL7-1.25 / 95/70	7	1.25	≥83	1708	8.5×3.4×3.7	39

Khoom Ntaus

image005_1 image005_2

image007_

Hais Txog Peb

Daim Ntawv Pov Thawj Txheeb Ze

Cov Neeg Siv Khoom

Cov FAQ

1.Q. Koj puas yog cov chaw tsim khoom?
A: Yog lawm, peb yog cov chaw tsim khoom tsim kho kev kub siab thiab lub nkoj siab nyob hauv Henan, Suav.
2.Q: Koj puas muaj Ntawv Pov Thawj?
A: Yog lawm. Peb tau txais daim ntawv pov thawj ISO 、 CE 、 NGV daim ntawv pov thawj. Peb kuj tuaj yeem muab ASME, GHOST thiab lwm daim ntawv pov thawj tsim nyog yog tias koj xav tau.
3.Q: Kuv tuaj yeem them koj li cas?
A: T / T, Western Union, Nyiaj Gram thiab ntau tus neeg muas zaub nyiam xaiv Ali Trade Assurance. Nws' s yooj yim dua thiab muaj kev nyab xeeb dua.
4.Q: Yuav ua li cas txog lub sijhawm khoom xa tuaj?
A: Feem ntau 5-10 hnub ua haujlwm rau ib lub tshuab, thiab 30-40 hnub ua haujlwm rau qhov kev txiav txim ntau thiab qhov rooj xa qhov rooj rau kev pabcuam kuj tseem muaj.
5.Q. Yuav ua li cas txog lub warranty?
A: Peb muab 2 lub xyoo lav rau dawb thiab lub neej ntev txog kev txij nkawm.
6.Q. Yuav ua li cas hais txog kev teeb tsa?
A: Peb muab kev pabcuam tshwjxeeb rau txawv tebchaws rau kev teeb tsa, kev debugging thiab kev cob qhia.

Cim npe nrov: DZL biomass hluav taws kub saw saw dej kub rhaub dej kub, Tuam Tshoj, tuam ntxhab, lub Hoobkas, lag luam, customized, nqe
