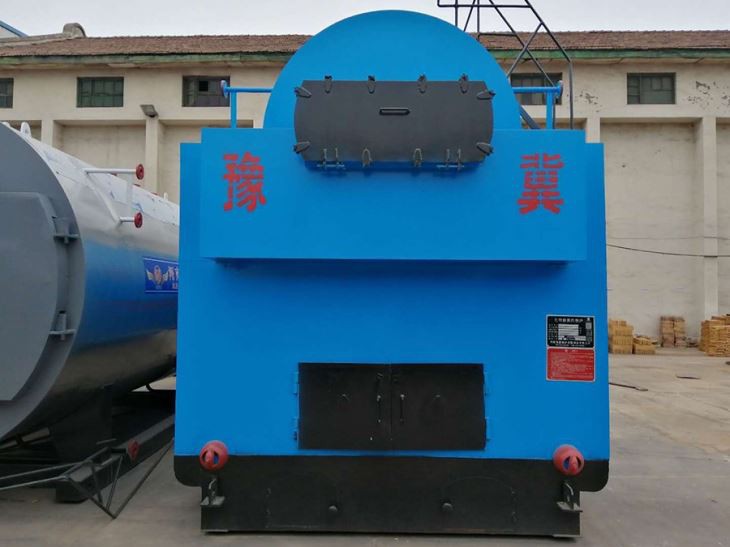

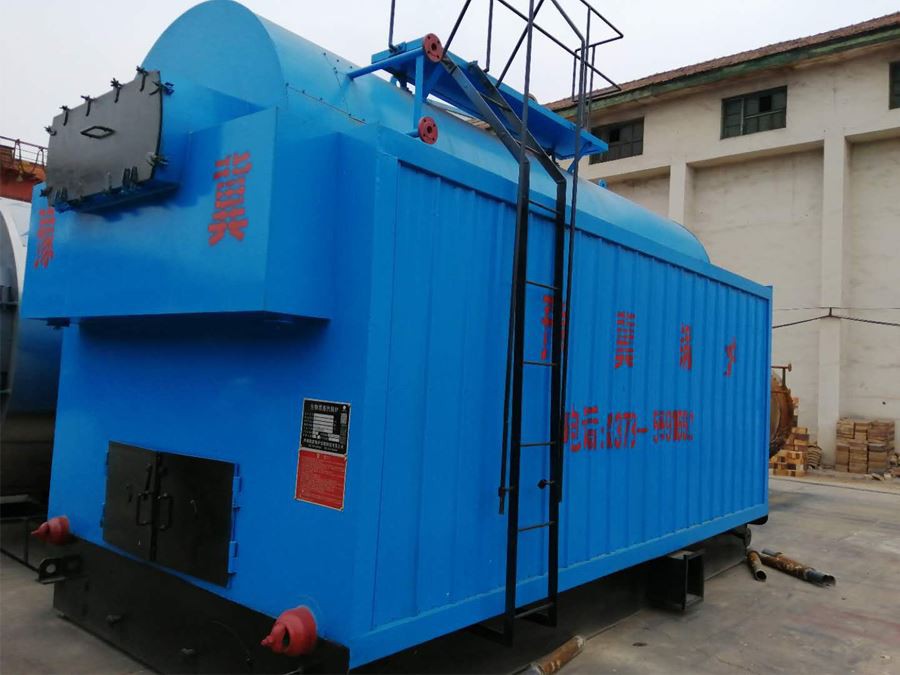

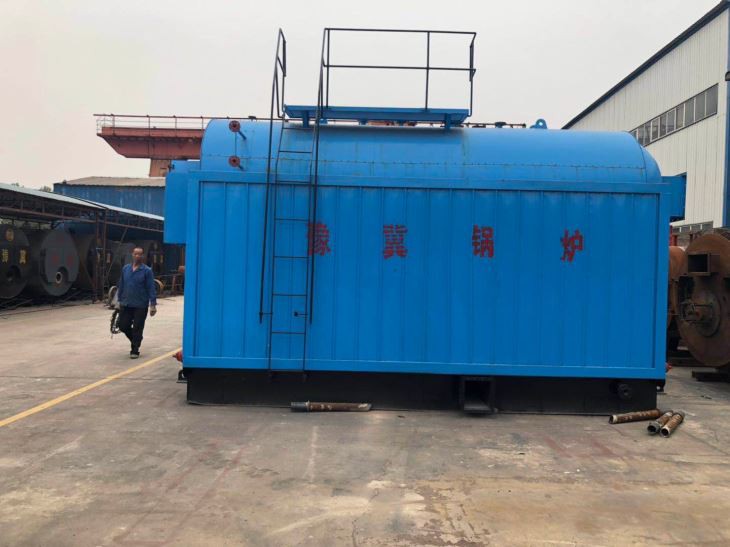

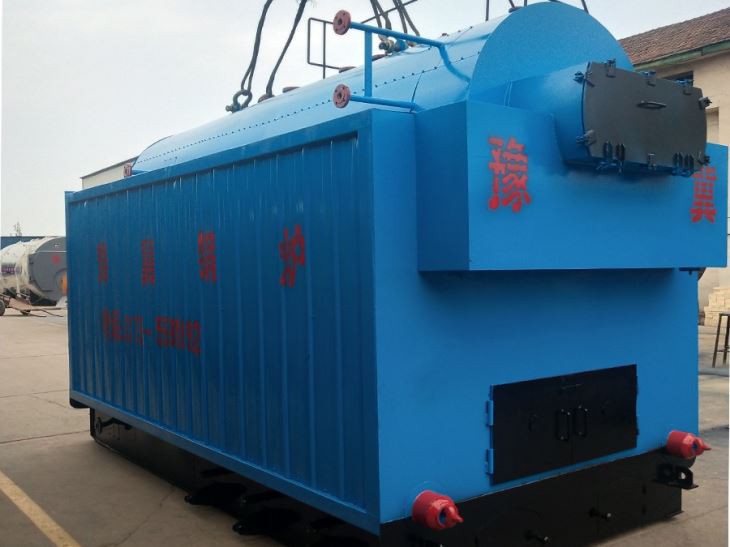

DZH Biomass Raug Rho Tawm Tshem Grate Horizonatal Chav Tube khib nyiab ntoo Boiler

DZH Kab Rov Tav Biomass Chav Boiler
Qauv: DZH Series
Kev Muaj Peev Xwm: 0.5T / H-6T / H
Chav Siab: 0.7Mpa-2.5Mpa (Xaiv tau raws li qhov xav tau)
Roj: Sawdust, Biomass Pallet, Husks Hnyuv, Cov Txiv Laum Quav, Cov Quav Quav, Cov Quav Quav, Pob Kws Txiv Ntoo, Pob Kws Hniav, Khaub Ncaws, xyoob thiab lwm yam roj ntxiv rau cov qoob loo.
Daim ntawv thov: Kev siv tshuaj cog, tsev cog khoom qab zib, chaw tsim tshuaj paus, chaw tsim tshuaj, luam ntawv thiab zas xim, chaw tsim khoom noj khoom haus, ntawv cog qoob loo, cog tsob nroj, tshuaj chiv tsob nroj, tsob nroj pub tshuaj, cog cog roj hmab, cog ua cog, ntxuav Hoobkas, tsev kho mob, tsev so thiab lwm yam. Cov.

Khoom Taw qhia

Taw qhia

DZH series chav dej raj boiler yog tsim los nrog tib nruas boiler nrog hluav taws tub raj thiab dej raj. Nws muaj lub ceev ceev thaum tshav kub kub ceev thiab nce ceev ceev siab nce. Cov khoom siv sib txuas ua ke yog mov tshem tau. Txoj kev xa cov roj tuaj yog phau ntawv lossis siv tshuab. Cov khoom siv ncaj qha hlawv, uas yog qhov tshwj xeeb yoog roj. Cov kab hluav taws xob no tau siv cov thev naus laus zis tshiab kawg hauv kev lag luam xws li arched tube nplooj ntawv thiab cov xov flue kab, uas ua kom zoo dua ntawm tag nrho cov kev ua haujlwm ntawm lub rhaub dej thiab tiv thaiv qhov tshwm sim ntawm qhov tsis ua tiav xws li coking ntawm cov ua kom zoo thiab paim quav ntawm cov raj raj.

Cov lus qhia tseem ceeb: Peb tuaj yeem kho lub khib nyiab lub rhaub dej rau koj raws li cov roj, qhov peev xwm thiab cov chav dej siab xav tau los ntawm cov neeg siv khoom.


Cov tsis

Qauv

Nyob evaporation

Peev Xwm

(t/h)

Rated siab

(MPa)

Chav sov

(℃)

Kev ntsuas kom sov ua tau zoo

(%)

Kev siv roj

(kg / teev)

Qhov ntev

L×W×H (m)

Nyhav

(t)

DZH1-0.7 / 1.0-T

1

0.7/1.0

193/204

≥83

176.6

4.3×1.9×2.9

13.6

DZH2-1.0 / 1.25-T

2

1.0/1.25

193/204

≥83

352.3

5.14×2.5×3.1

18

DZH3-1.25 / 1.6-T

3

1.25/1.6

193/204

≥83

522.5

5.63×2.7×3.3

23

DZH4-1.25 / 1.6-T

4

1.25/1.6

193/204

≥83

697

5.92×2.7×3.5

25.3

DZH6-1.25 / 1.6-T

6

1.25/1.6

193/204

≥83

1044

6.2×3.0×3.58

31

DZH8-1.25 / 1.6-T

8

1.25/1.6

193/204

≥83

1396

6.8×3.4×3.6

34

DZH10-1.25 / 1.6-T

10

1.25/1.6

193/204

≥83

1744

7.5×3.4×3.7

39

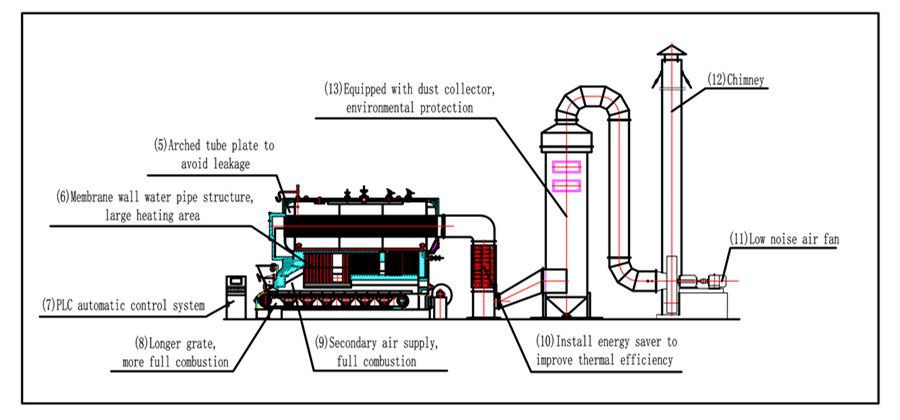

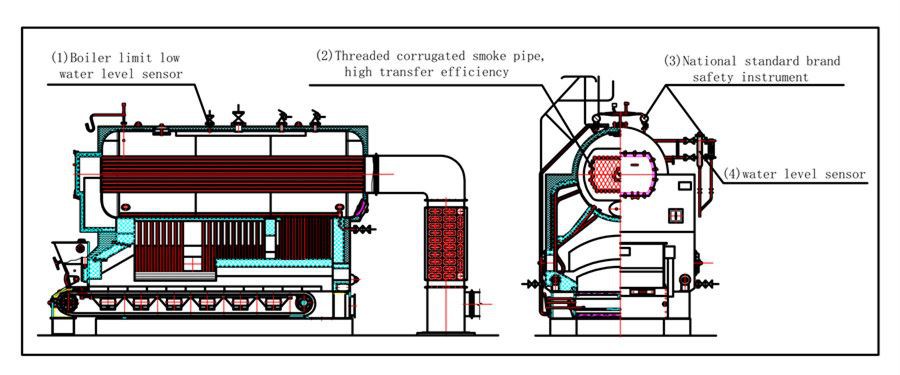

Kev kos duab

image001image003

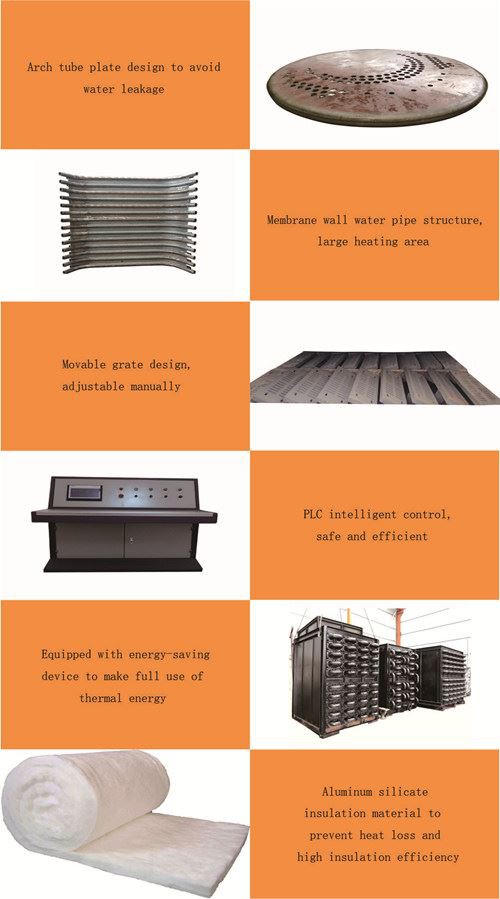

Cov khoom lag luam zoo

High efficiency, tus nqi qis
(1) Boiler lub cev tsim muaj ob lub raj xa dej thiab hluav taws kub yeeb nkab, kev nqus cua sov sai, chav siab nce ceev ceev, kev ua haujlwm siab thermal.
(2) Membrane phab ntsa dej yeeb nkab kev teeb tsa thaj tsam kom tshav kub kom zoo dua qub thiab txhim kho cov thermal txuag.
(3) Lub zog txuag hluav taws xob tau teeb tsa rau tom qab kom siab nqus cov cua sov pov tseg thiab txuag nqi.
2.Muaj kev ruaj ntseg siablag luam
(1) PLC ntse tswj lub cev tuaj yeem paub txog kev ua haujlwm tsis siv neeg ntawm kev them nyiaj, ua haujlwm ua haujlwm, pib kiv cua thiab nres, kev tso dej tawm, slag tawm, thiab lwm yam, nws tseem muaj kev tiv thaiv kev tiv thaiv kev ua haujlwm xws li overpressure, overtemperature, dej tsis txaus, dej xau, lub cev muaj zog sib tshooj, lwm yam.

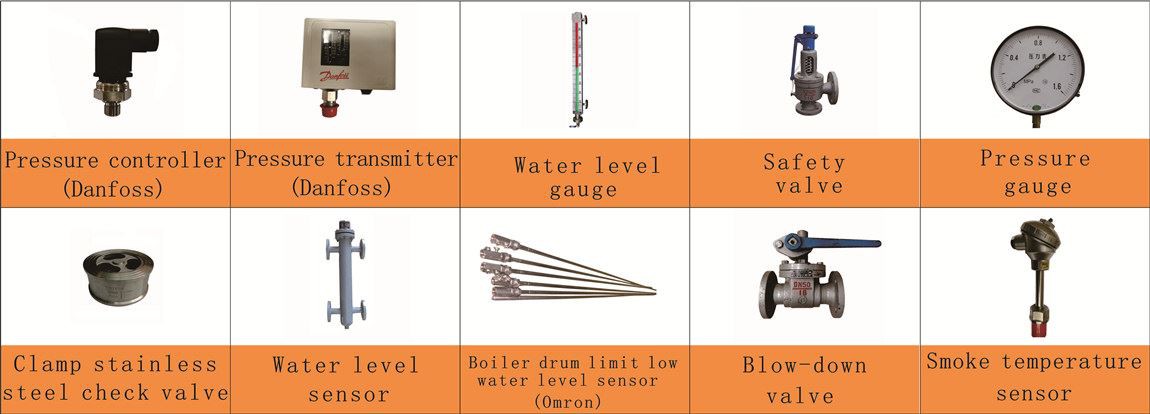

(2) Teeb ntau qhov kev tiv thaiv kev nyab xeeb, ntsuas kev nyab xeeb, ntsuas pa theem dej,
siab ntsuas ntsuas, ntsuas siab, thiab lwm yam kom ua haujlwm zoo.
3. Kev nyab xeeb tshwj xeebtsim
(1) Lub nruas dej boiler muaj qhov ua nrog nrog qhov tsis tshua muaj dej nyob hauv kev paub txog kev nyab xeeb
ntaus ntawv, uas tuaj yeem ncaj qha nrhiav cov dej hauv qib hauv qhov cub, thiab tsis muaj dej tsis muaj dej txaus.
(2) Lub cev boiler txais yuav kev ua tiav txhua yam kev kho cua sov kom tshem tawm cov kev ntxhov siab steel thiab ua haujlwm yam tsis muaj teeb meem.
4. Tsheb thauj mus los yooj yim
Boiler thiab lub tshuab pabcuam pabcuam tau sib sau ua ke tus qauv, lub sijhawm nruab yog lub sijhawm luv, thiab kev nqa thiab kev thauj mus los yooj yim.


image005_

image007_
