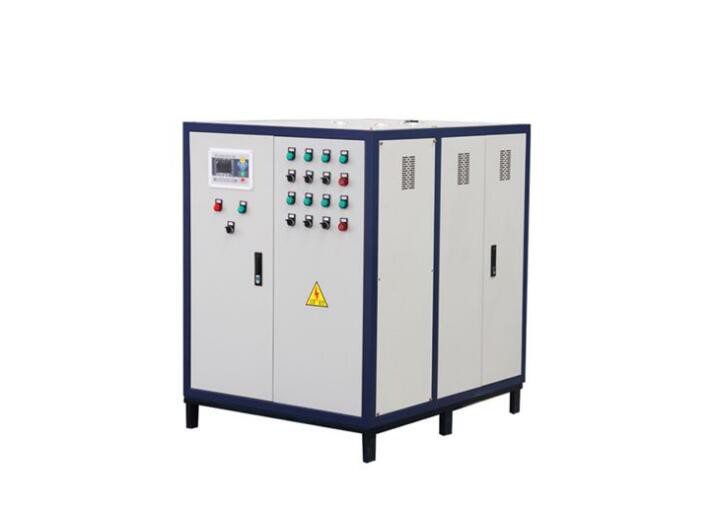

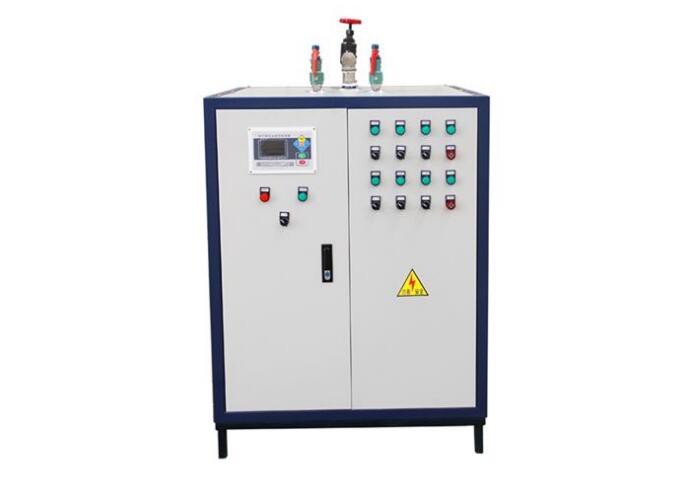

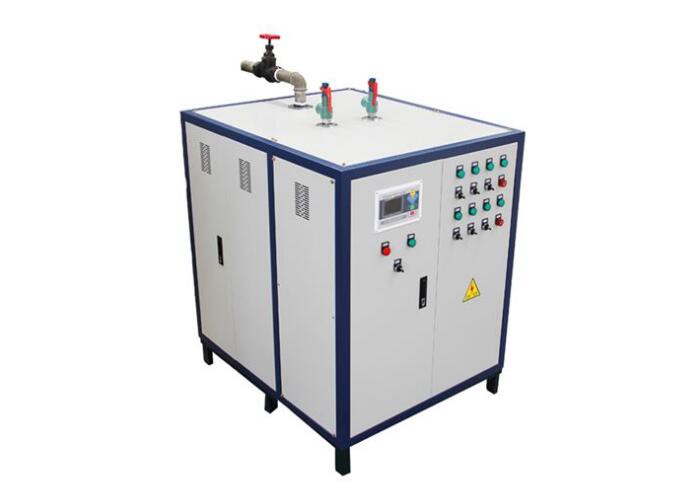

Yuji LDR Food Industry Electric Steam Generator 12Kw

Hluav taws xob cua sov Fast Chav Generator
Qauv: LDR (Electric cua sov) Series
Chav Muaj Peev Xwm: LDR (Electric Cua sov) 0.01-0.4T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)

Khoom Taw qhia

Product Description

Lub tshuab hluav taws xob cua sov lub tshuab hluav taws xob siv hluav taws xob sib nqus cua sov, kom ua tiav kev sib cais ntawm cov dej thiab hluav taws xob, kev nyab xeeb muaj zog dua li lwm cov boilers, cov dej magnetized, tsis yooj yim rau scale, kev ua haujlwm ruaj khov kuj zoo dua.

Kev txuag hluav taws xob thiab kev txuag hluav taws xob kuj yog qhov zoo ntawm hluav taws xob cua sov chav boiler. Ntev npaum li nws siv tau zoo, nws yuav ua tiav cov txiaj ntsig ntawm kev txuag hluav taws xob.

Txhawm rau kom ua tiav lub hom phiaj ntawm kev ua haujlwm sai, tab sis tseem ua tiav cov txiaj ntsig ntawm kev txuag hluav taws xob, kev siv hluav taws xob cua sov chav generator txhais tau tias tseem ceeb heev.

Kev siv lub ntsiab lus tseem ceeb ntawm electromagnetic, kev siv cov kab sib nqus ntawm lub zog los txiav cov hlau, eddy tam sim no, thiab tsim kom muaj cua sov, thiab raws li cov khoom siv hluav taws xob, los ntawm cov cua sov, qhov system tuaj yeem ua tiav lub hom phiaj ntawm cov cua sov.

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag (kw)	Thermal efficiency (％)	Chav kub (℃)	Dimension (m)	Qhov hnyav (t)
LDR 0.008-0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR 0.012-0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR 0.016-0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR 0.024-0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR 0.032-0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR 0.065-0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR 0.075-0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR 0.1-0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR 0.13-0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR 0.2-0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR0.24-0.4/0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR0.28-0.4/0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov qauv phab ntsa membrane, ua rau thaj chaw nqus cua sov thiab txo cov cua sov, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, qib dej tsis siv neeg tswj, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.
