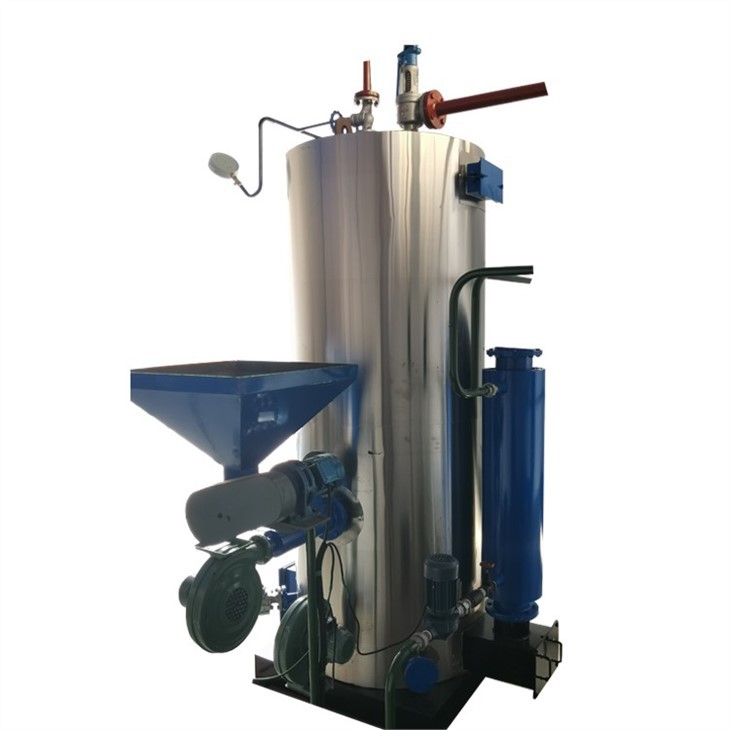

Txhim khu kev ua tau zoo 600kg Biomass Micro Steam Generator

Product Description

1. Advanced chav boiler tsis siv neeg maub los, LCD npo, txiv neej-tshuab interface, cov neeg siv tsuas yog yuav tsum tau teeb tsa tau yooj yim, lub boiler tuaj yeem pib thiab nres raws li tus neeg siv yuav tsum tau, kev tswj hwm, tsis siv neeg dej thiab lwm yam tsis siv neeg ua haujlwm. Lub boiler muaj kev ua tiav, kev tiv thaiv tiav, kev ua haujlwm yooj yim, muaj kev nyab xeeb thiab txhim khu kev qha, thiab kev kuaj xyuas tus kheej muaj nuj nqi. Thaum muaj qhov tshwm sim txawv txav tshwm sim hauv kev ua haujlwm ntawm boiler, qhov kev sib txuas tau raug cuam tshuam, thiab muaj lub suab nrov thiab pom lub tswb.

Daim duab

Khoom Zoo

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai sai.

2. High thermal efficiency

(1) ntsug dej yeeb nkab membrane phab ntsa qauv, nce tshav kub absorbing cheeb tsam, txo tshav kub poob, txuag roj.

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency.

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions.

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj.

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, dej qib tswj tsis siv neeg, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Tech Parameter

LSG Biomass Chav Generator

Qauv	Rated evaporation muaj peev xwm (t / h)	Rated siab (MPa)	Chav ntsuas kub (degree)	Thermal efficiency (%)	Roj noj (kg / h)	Dimension D×H (m)	Qhov hnyav (t)
LSG01-0.4	0.1	0.4	151	Ntau dua lossis sib npaug li 83	18.39	0.81×2.59	0.72
LSG02-0.4	0.2	0.4	151	Ntau dua lossis sib npaug li 83	36.23	0.91×2.9	0.98
LSG{0}}3-0.7	0.3	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	53.8	1.02×3.2	1.6
LSG{0}}5-0.7	0.5	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	89.76	1.32×3.68	2.88
LSG{0}}7-0.7	0.7	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	125.1	1.42×3.87	3.67
LSG{0}}.7	1	0.4/0.7	151/171	Ntau dua lossis sib npaug li 83	178.7	1.62×4.38	4.8
