LDR Industrial High Efficiency Steam Generator Commercial Cleaning Tsheb Siv Lub Tshuab Hluav Taws Xob Hluav Taws Xob

Product Description

Tshiab LDR hom Hluav Taws Xob Chav Hluav Taws Xob yog tsim raws li cov txheej txheem tsim khoom thiab cov qauv ntawm chav kawm A boiler. Tsis siv neeg tswj, tig lub hwj chim thiab khiav tau. Haum rau kev ua zaub mov, khaub ncaws, electroplating, tshuaj, dielectric cua sov sterilization khoom siv zoo tagnrho.

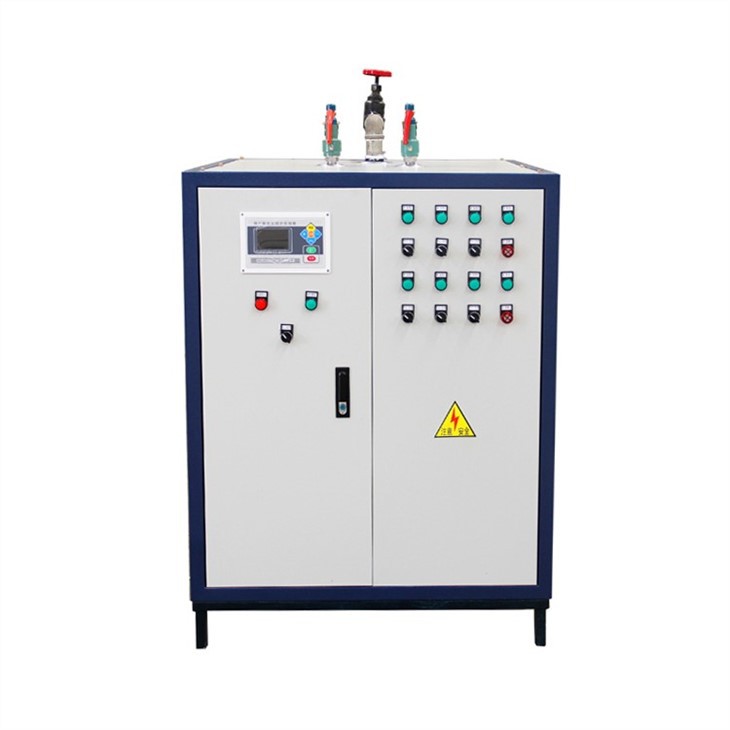

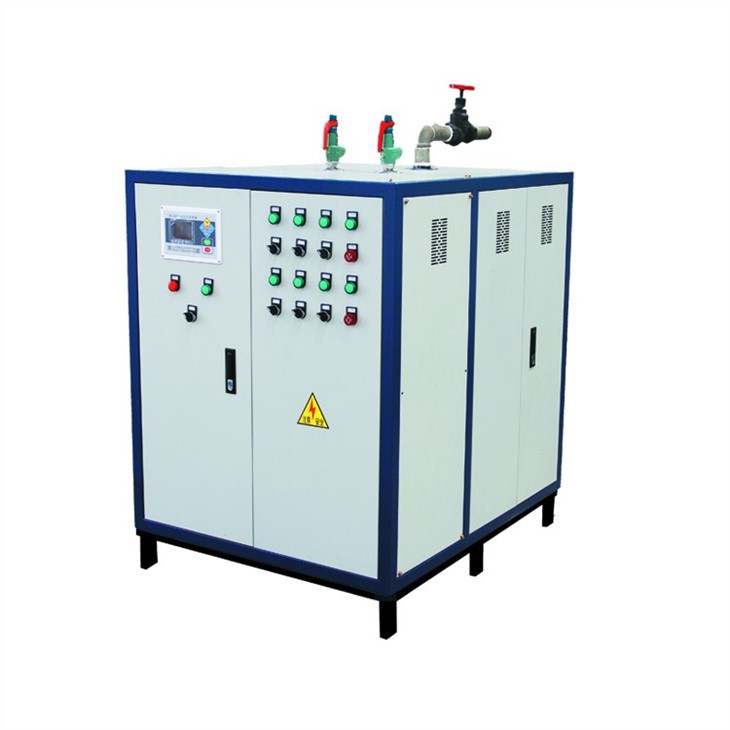

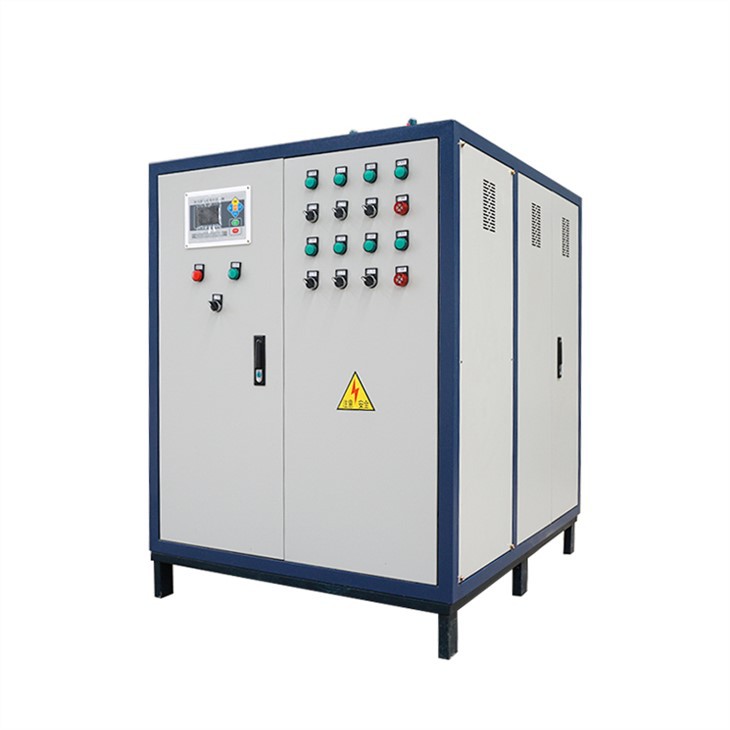

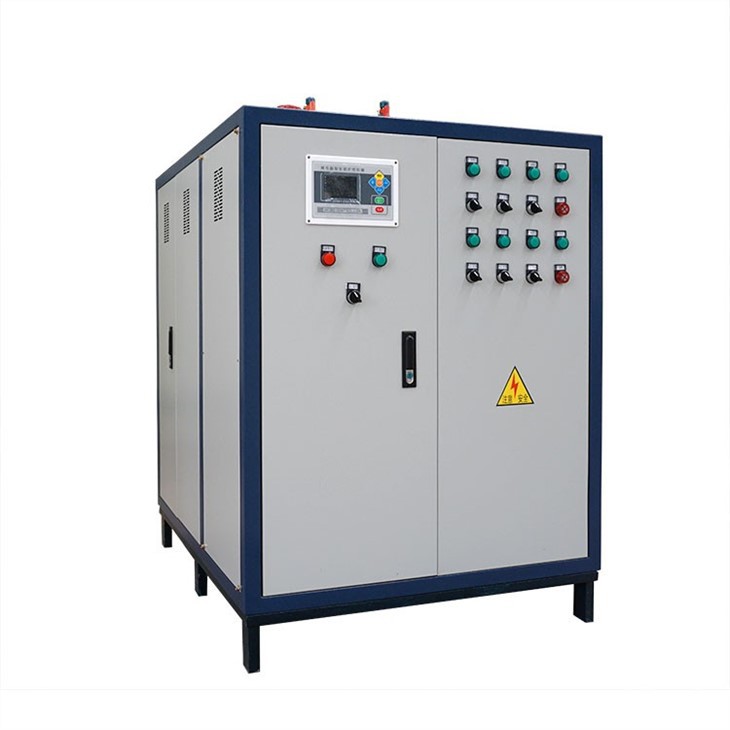

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag (kw)	Thermal efficiency (％)	Chav ntsuas kub (degree)	Dimension (m)	Qhov hnyav (t)
LDR0 008-0.4	8	0.4	6	Ntau dua lossis sib npaug li 99	151	0.82×0.84×0.8	0.12
LDR0 012-0.4	12	0.4	9	Ntau dua lossis sib npaug li 99	151	0.82×0.84×0.8	0.123
LDR0 016-0.4	16	0.4	12	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1	0.139
LDR0 024-0.4	24	0.4	18	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1	0.14
LDR0 032-0.4	32	0.4	24	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.2	0.142
LDR0 065-0.4	65	0.4	48	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.4	0.146
LDR0 075-0.4	75	0.4	54	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.4	0.15
LDR0 1-0.4	100	0.4	72	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.68	0.155
LDR0 13-0.4	130	0.4	96	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.68	0.165
LDR0 2-0.4	200	0.4	144	Ntau dua lossis sib npaug li 99	151	0.82×0.84×2.1	0.206
LDR{0}}24-0.4/0.7	240	0.4/0.7	174	Ntau dua lossis sib npaug li 99	151/170	0.82×0.84×1.7	0.267
LDR{0}}28-0.4/0.7	280	0.4/0.7	203	Ntau dua lossis sib npaug li 99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov qauv phab ntsa membrane, ua rau thaj chaw nqus cua sov thiab txo cov cua sov, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, qib dej tsis siv neeg tswj, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.
