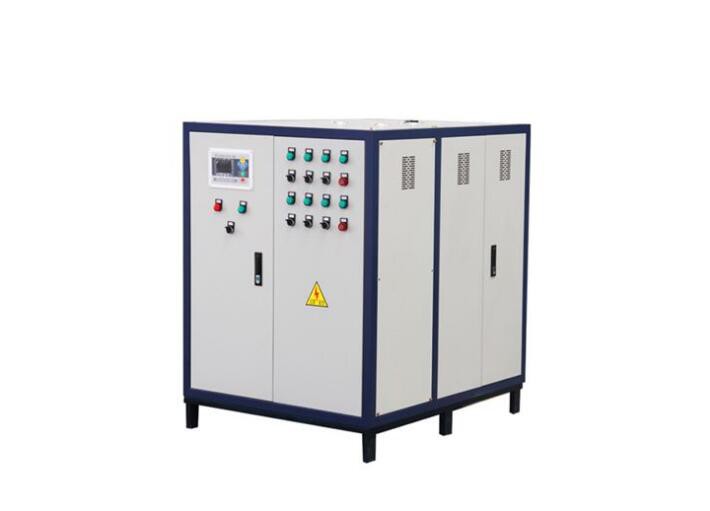

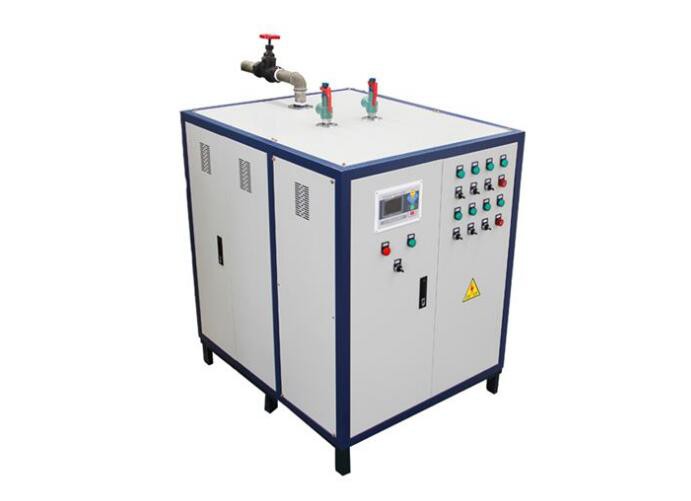

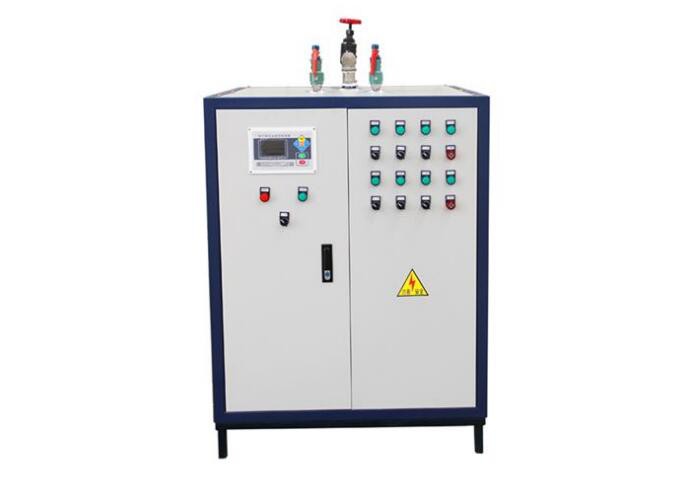

Hluav taws xob cua sov Portable Chav Generator Me Boiler Rau Industrial Cog

Hluav taws xob cua sov Fast Chav Generator
Qauv: LDR (Electric cua sov) Series
Chav Muaj Peev Xwm: LDR (Electric Cua sov) 0.01-0.4T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)

Khoom Taw qhia

Product Description

Cov qauv tsim tshwj xeeb hauv cov qauv tsim, tsis siv neeg cov kauj ruam cua sov tsim, siv cov kauj ruam thauj khoom lossis thauj khoom txo qis tsim los kho thiab sib npaug ntawm cov load, txo qhov cuam tshuam ntawm daim phiaj hluav taws xob, tiv thaiv cov cua sov, ua kom nws lub neej ntev.

Cov ntaub ntawv zoo rwb thaiv tsev yog siv los txo cov cua sov ntawm lub boiler nws tus kheej.

Txais yuav cov khoom siv hluav taws xob hauv tsev siab heev, nrog seamless steel raj raws li lub hau npog, dej thiab hluav taws xob sib cais cov qauv thiab lub zog siab, muaj kev nyab xeeb siab, tsis cuam tshuam los ntawm qhov ntsuas, cua sov tube ntev kev pab cuam lub neej.

Tsis siv neeg CNC tswj vaj huam sib luag, kev saib xyuas yooj yim, tuaj yeem hloov tau yam tsis muaj cua sov cua sov.

Piv nrog rau lwm yam roj, hluav taws xob hluav taws xob yog ntau tus phooj ywg ib puag ncig thiab kev lag luam. Kev siv hluav taws xob tsawg tuaj yeem txuag tau nyiaj ntau ntawm cov khoom siv, uas yog qhov kev xaiv zoo rau kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig.

Kev ua haujlwm yog yooj yim, nyab xeeb thiab txuag zog.

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag (kw)	Thermal efficiency (％)	Chav kub (℃)	Dimension (m)	Qhov hnyav (t)
LDR 0.008-0.4	8	0.4	6	≥99	151	0.82×0.84×0.8	0.12
LDR 0.012-0.4	12	0.4	9	≥99	151	0.82×0.84×0.8	0.123
LDR 0.016-0.4	16	0.4	12	≥99	151	0.82×0.84×1	0.139
LDR 0.024-0.4	24	0.4	18	≥99	151	0.82×0.84×1	0.14
LDR 0.032-0.4	32	0.4	24	≥99	151	0.82×0.84×1.2	0.142
LDR 0.065-0.4	65	0.4	48	≥99	151	0.82×0.84×1.4	0.146
LDR 0.075-0.4	75	0.4	54	≥99	151	0.82×0.84×1.4	0.15
LDR 0.1-0.4	100	0.4	72	≥99	151	0.82×0.84×1.68	0.155
LDR 0.13-0.4	130	0.4	96	≥99	151	0.82×0.84×1.68	0.165
LDR 0.2-0.4	200	0.4	144	≥99	151	0.82×0.84×2.1	0.206
LDR0.24-0.4/0.7	240	0.4/0.7	174	≥99	151/170	0.82×0.84×1.7	0.267
LDR0.28-0.4/0.7	280	0.4/0.7	203	≥99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov qauv phab ntsa membrane, ua rau thaj chaw nqus cua sov thiab txo cov cua sov, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, qib dej tsis siv neeg tswj, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Daim ntawv pov thawj

Cim npe nrov: hluav taws xob cua sov portable chav generator me boiler rau industrial cog, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, customized, nqe
