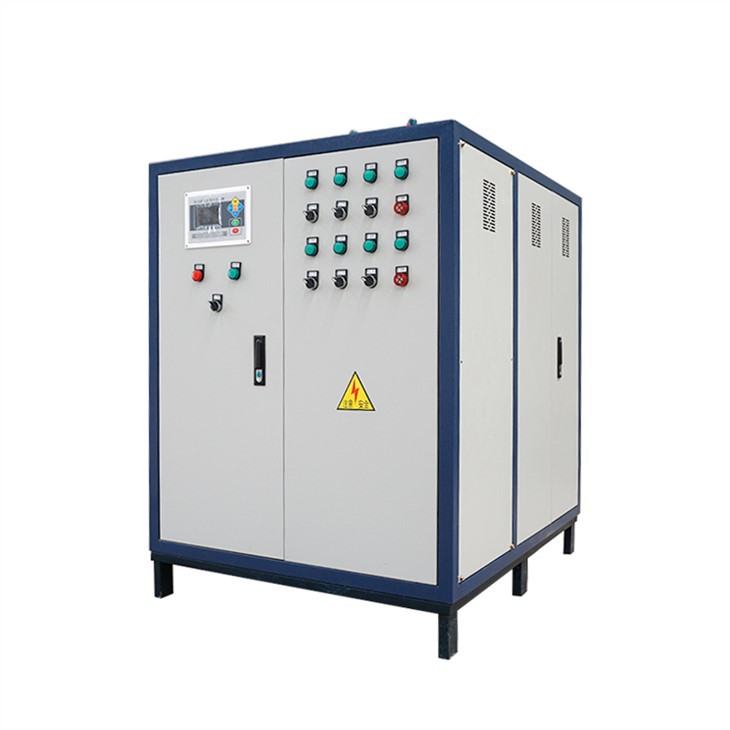

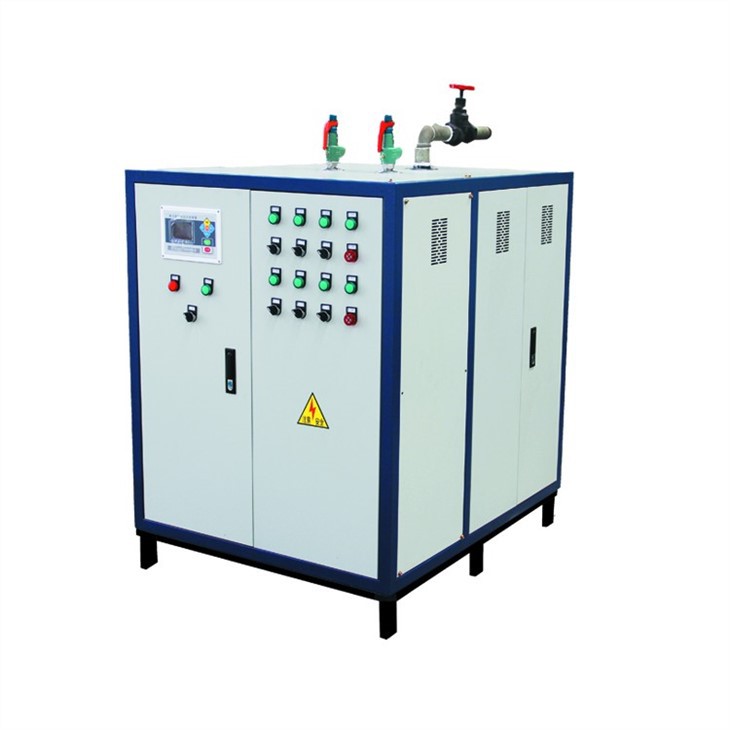

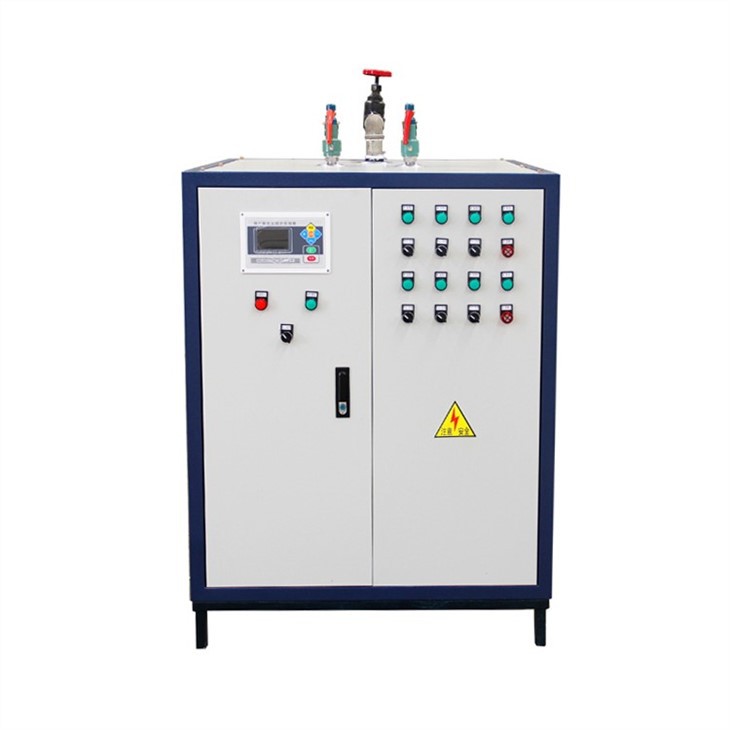

Commercial Sauna 12KW Hluav Taws Xob Chav Da Dej Generator Rau 6 Tus Neeg Chav Chav

Hluav taws xob cua sov Fast Chav Generator
Qauv: LDR (Electric cua sov) Series
Chav Muaj Peev Xwm: LDR (Electric Heating) 0.01-0.4T/H
Chav Siab: {{0}}.4/0.7Mpa (yeem raws li qhov xav tau)

Khoom Taw qhia

Product Description

1. Mini Electric Steam Generator muaj compact tsos, compact internal qauv, tshuab nruab nrog tsis siv neeg dej twj tso kua mis, dej theem Control, siab tswj, thiab nws yog lub

siv cov khoom cua kub zoo, mus txog qhov chaw ntawm lub tshav kub load yog tsawg, siab thermal efficiency.

2. Cov khoom ntim tsawg dua li qhov kev zam hauv lub tebchaws tau teev tseg ntim 30L, zam cov txheej txheem kev pom zoo nyuaj.

3. Built-in separator, los daws qhov teeb meem nrog cov dej vapor, ntau dua los xyuas kom meej qhov zoo ntawm chav.

4. Ib kauj ruam tsis siv neeg tswj. Tsuas yog yuav tsum tau txuas dej thiab hluav taws xob, nias lub khawm hloov, boiler yuav nkag mus rau qhov tsis siv neeg khiav, kev nyab xeeb thiab kev thaj yeeb ntau dua.

5. Cov saw nrog ntau yam kev ruaj ntseg. Cov khoom siv hluav taws xob siv los ntawm CCC thiab CE cov khoom pov thawj, kom ntseeg tau cov khoom zoo thiab cov neeg siv khoom txaus siab.

6. Hluav taws xob rau lub zog, tsis muaj kuab paug, tsis muaj suab nrov, ntau dua yog nyob rau hauv txoj kab nrog ib puag ncig

Daim duab

Technical Parameter

LDR Electric Steam Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Rated fais fab tuag (kw)	Thermal efficiency (％)	Chav ntsuas kub (degree)	Dimension (m)	Qhov hnyav (t)
LDR0 008-0.4	8	0.4	6	Ntau dua lossis sib npaug li 99	151	0.82×0.84×0.8	0.12
LDR0 012-0.4	12	0.4	9	Ntau dua lossis sib npaug li 99	151	0.82×0.84×0.8	0.123
LDR0 016-0.4	16	0.4	12	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1	0.139
LDR0 024-0.4	24	0.4	18	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1	0.14
LDR0 032-0.4	32	0.4	24	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.2	0.142
LDR0 065-0.4	65	0.4	48	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.4	0.146
LDR0 075-0.4	75	0.4	54	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.4	0.15
LDR0 1-0.4	100	0.4	72	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.68	0.155
LDR0 13-0.4	130	0.4	96	Ntau dua lossis sib npaug li 99	151	0.82×0.84×1.68	0.165
LDR0 2-0.4	200	0.4	144	Ntau dua lossis sib npaug li 99	151	0.82×0.84×2.1	0.206
LDR{0}}24-0.4/0.7	240	0.4/0.7	174	Ntau dua lossis sib npaug li 99	151/170	0.82×0.84×1.7	0.267
LDR{0}}28-0.4/0.7	280	0.4/0.7	203	Ntau dua lossis sib npaug li 99	151/170	0.82×0.84×1.9	0.302

Nta

1. Ceev ncu tiam

Chav yog tsim sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai

2. High thermal efficiency

(1) Cov yeeb nkab dej ntsug, cov qauv phab ntsa membrane, ua rau thaj chaw nqus cua sov thiab txo cov cua sov, txuag roj

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency

3. High-end tsis siv neeg tswj qhov system

Lub teb chaws tus qauv hluav taws xob tswj cov khoom siv thiab lub ntiaj teb hom hluav taws xob, tuaj yeem paub txog kev ua haujlwm tsis siv neeg ruaj khov.

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions

5. Kev ntseeg siab

(1) Cov khoom siv tag nrho yog tsim raws li tus qauv ntawm chav boiler loj

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: lub siab tswj, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas ntsuas dej, tswj dej tsis siv neeg, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Daim ntawv pov thawj

Cim npe nrov: coj mus muag sauna 12kw hluav taws xob chav da dej generator rau 6 tus neeg chav chav, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, customized, nqe
