500kg / h 1t / h Muaj ntsug Tubeless Roj Roj Roj Chav Boiler Nqe

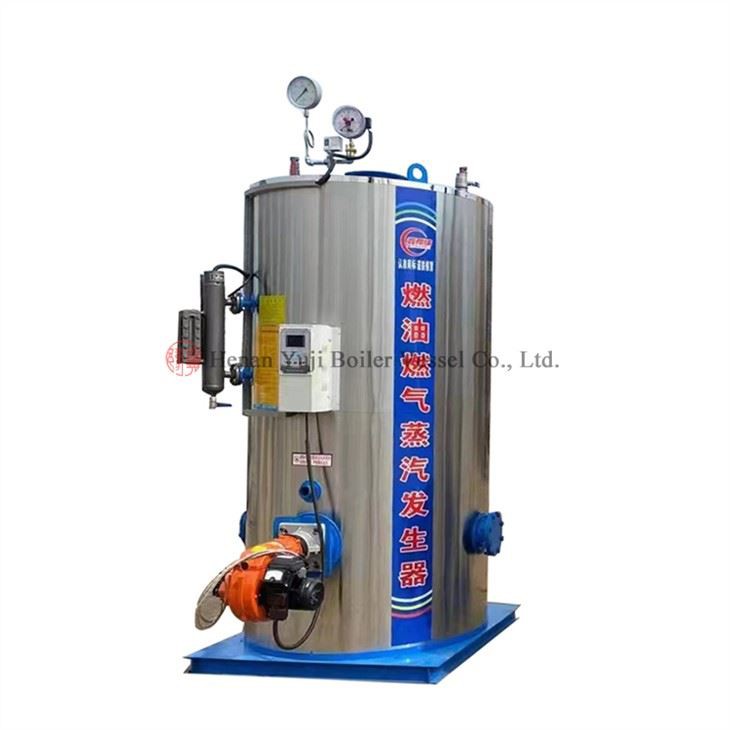

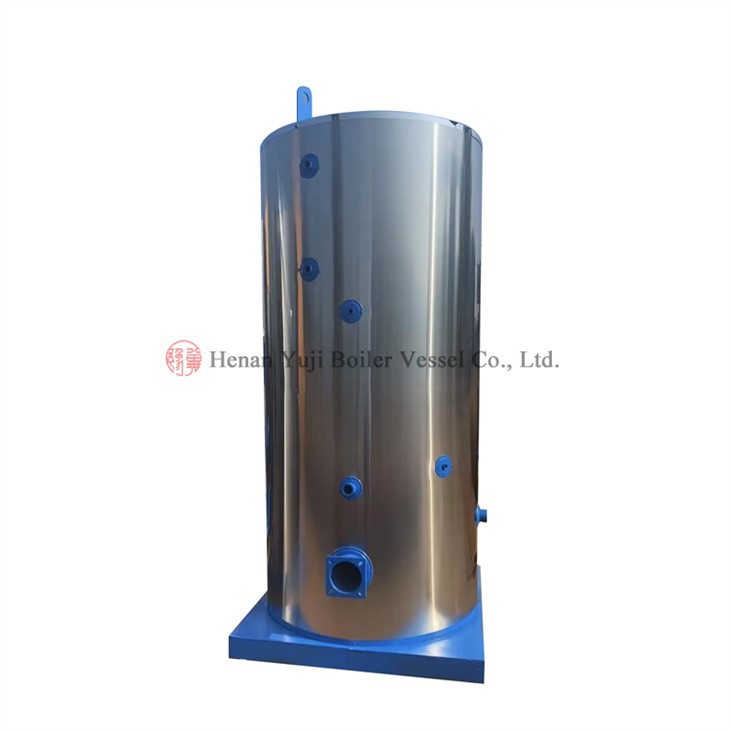

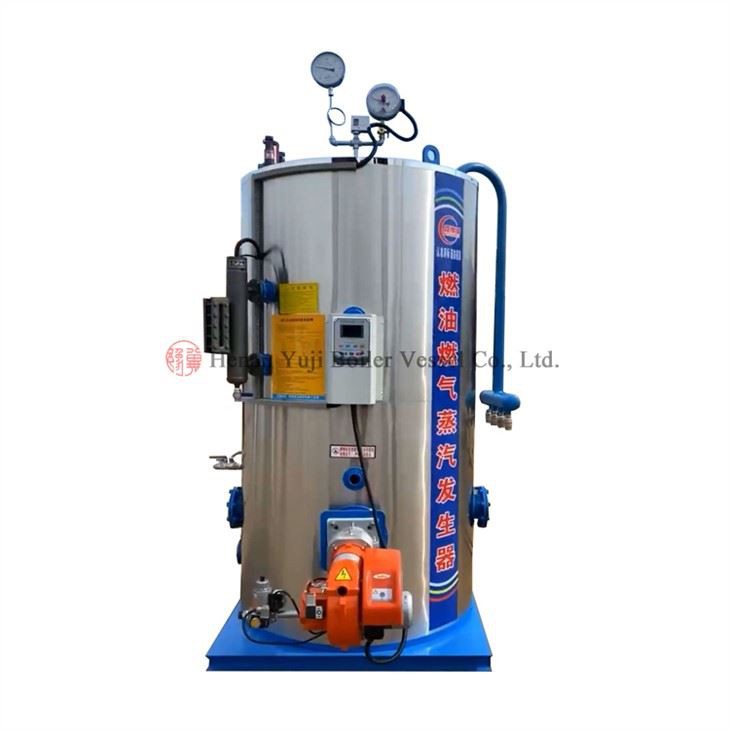

Roj/Gas Fast Steam Generator
Qauv: LSS (Oil / Gas) Series
Chav Muaj Peev Xwm: LSS (Oil / Gas) 0.05-0.5T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)
Roj: Natural gas, liquefied petroleum gas
Daim ntaub ntawv: Khaub ncaws Ntxuav Thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description:

1. Vertical roj/gas raug rho tawm haujlwm tube chav boiler
2. Flow interrupters tau teem rau hauv lub raj hluav taws kom qeeb tus nqi ntawm cov huab cua ntws thiab ua kom cov cua sov ua haujlwm.
3. Cov huab cua ntws hauv lub raj hluav taws kub, piv nrog LSS ntsug ntws los ntawm boiler, LHS boilers muaj peev xwm dej loj thiab muaj peev xwm siv dav rau kev thauj khoom.
4. Lub qhov rooj qhib tau tshauv ntxuav yog teem rau hauv qab ntawm lub boiler. Lub hau npog sab saum toj ntawm lub boiler tuaj yeem qhib kom yooj yim ntxuav cov tshauv thiab ua kom lub sijhawm ntev ntawm lub boiler.
5. Tuam Tshoj maub los yog ua haujlwm rau lub boiler rau kev ua kom muaj kev nyab xeeb, thiab txo tus nqi khiav mus rau qhov zoo.

Khoom Paub meej:

Tech Parameter:

LSS Roj/Gas Chav Generator

Qauv	Rated evaporation Muaj peev xwm (kg / h)	Rated chav siab (Mpa)	Thermal efficiency (％)	Chav ntsuas kub (℃)	Dimension (m)	Qhov hnyav (t)
LSS0.05-0.4/0.7-Y(Q)	50	0.4/0.7	≥93	151/171	0.62×0.62×0.83	0.206
LSS0.1-0.4/0.7-Y(Q)	100	0.4/0.7	≥93	151/171	0.69×0.69×0.968	0.252
LSS0.15-0.4/0.7-Y(Q)	150	0.4/0.7	≥93	151/171	0.75×0.75×1.13	0.303
LSS0.2-0.4/0.7-Y(Q)	200	0.4/0.7	≥93	151/171	0.8×0.8×1.286	0.35
LSS0.3-0.4/0.7-Y(Q)	300	0.4/0.7	≥93	151/171	0.8×0.8×1.525	0.55
LSS0.4-0.4/0.7-Y(Q)	400	0.4/0.7	≥93	151/171	0.84×0.84×1.775	0.7
