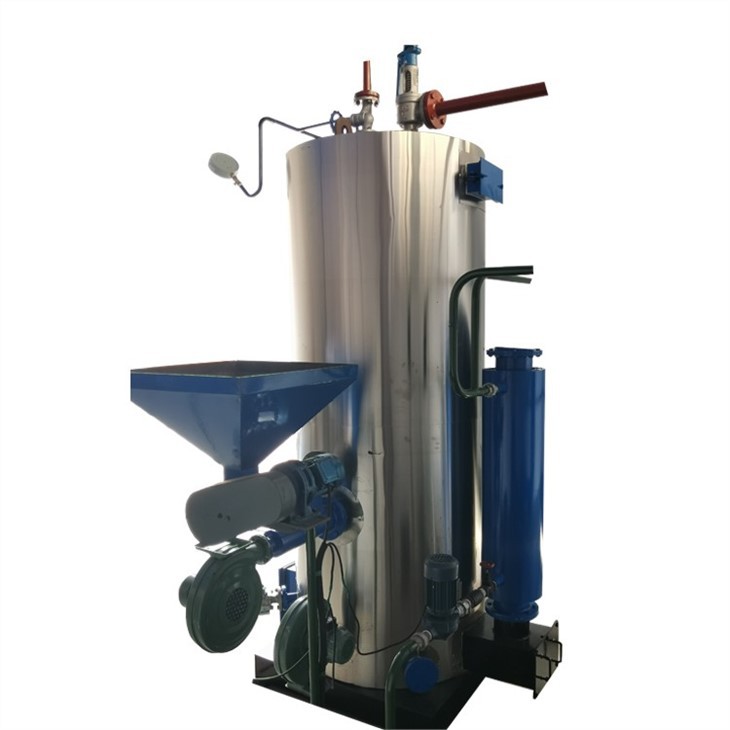

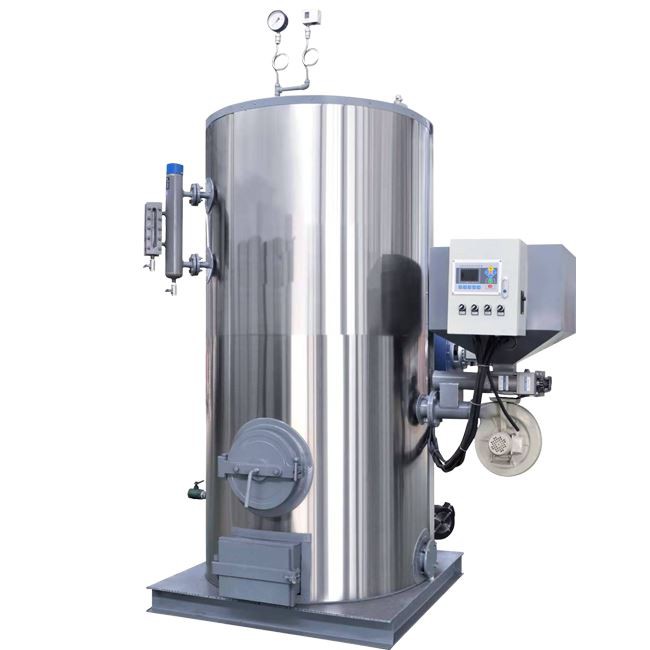

100kg 500 kg Industrial Biomass Pellet Chav Generator Boiler

Qauv: LSG (Biomass) Series
Chav Muaj Peev Xwm: LSG (Biomass) 0.05-0.5T / H
Chav Siab: 0.4 / 0.7Mpa (yeem raws li qhov xav tau)

Daim ntaub ntawv: Khaub ncaws Ntxuav Thiab Ironing, Biochemical, Khoom noj khoom haus thiab dej haus chav tu, tsev khoom tu, yas ua npuas ncauj, ntoo ua, thiab lwm yam.

Khoom Taw qhia

Product Description

Kev siv lub tshuab hluav taws xob zoo tshaj plaws semi-gasification compound combustion technology, microcomputer tswj qhov system thiab modular tsim, nrog rau qhov zoo ntawm kev ua haujlwm tsis siv neeg ntse ntse, tsis muaj kev saib xyuas, tsis muaj kev tshuaj xyuas, kev ua haujlwm yooj yim thiab kev saib xyuas, chav ua haujlwm ceev thiab siab qhuav ntawm chav, nws [ GG] #39; yog qhov kev xaiv zoo tshaj plaws los hloov cov thee, roj, roj thiab hluav taws xob cua sov boilers kom txuag tau 30% - 80% tus nqi khiav!

Daim duab

1. Ceev ncu tiam

Chav yog sai sai (3-5 feeb) tom qab lub boiler pib, thiab nws ncav cuag kub thiab siab sai sai.

2. High thermal efficiency

(1)Vertical water pipe membrane wall structure,increase heat absorption area,reduce heat loss,save fuel.

(2) Nruab nrog lub zog txuag, txhim kho thermal efficiency.

3. High-end tsis siv neeg tswj qhov system

4. Kev ruaj ntseg siab

(1) Lub peev xwm dej me me, tsis xav tau kev tshuaj xyuas txhua xyoo

(2) Nruab nrog kev ruaj ntseg interlock ntaus ntawv, xws li dej tsis txaus, overpressure, overtemperature, cua to, lub cev muaj zog overload thiab lwm yam kev tiv thaiv kev ruaj ntseg functions.

5. Kev ntseeg siab

(1)The whole equipment is manufactured according to the standard of large steam boiler.

(2) Cov cuab yeej tiv thaiv kev nyab xeeb: kev tswj lub siab, lub tshuab xa hluav taws xob, kev nyab xeeb valve, ntsuas qhov siab, dej qib tswj tsis siv neeg, thiab lwm yam.

6. Cov qauv zoo heev

Cov qauv tsim tshwj xeeb, me me thiab siv tau.

Tech Parameter

LSG Biomass Steam Generator

Qauv	Ratedevaporation	Rated siab (MPa)		Thermal efficiency (%)	Roj noj (kg / h)	D×H (m)	(t)
LSG 0.1-0.4	0.1	0.4	151	≥83	18.39	0.81×2.59	0.72
LSG0.2-0.4	0.2	0.4	151	≥83	36.23	0.91×2.9	0.98
LSG 0.3-0.7	0.3	0.4/0.7	151/171	≥83	53.8	1.02×3.2	1.6
LSG 0.5-0.7	0.5	0.4/0.7	151/171	≥83	89.76	1.32×3.68	2.88
LSG 0.7-0.7	0.7	0.4/0.7	151/171	≥83	125.1	1.42×3.87	3.67
LSG1-0.7	1	0.4/0.7	151/171	≥83	178.7	1.62×4.38	4.8
